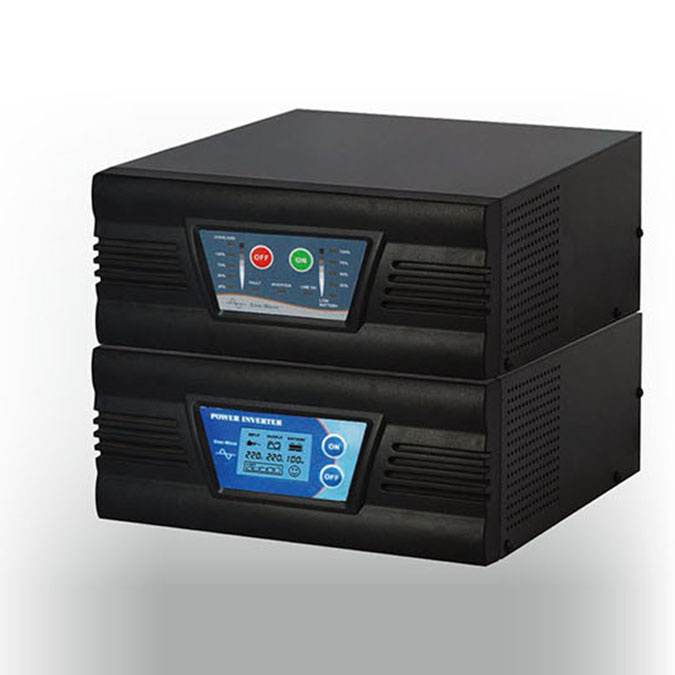

Low Frequency Sine Wave Inverter

Name: Low Frequency Sine Wave Inverter
Brand: all-electronics-online.com
SKU: 708966252
Availability: InStock
Rating: 4.4 (129 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSPIN2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Charge:	Three-Steps Intelligent Charge Controller
Phase:	Single
Type:	DC/AC Inverters
Power Source:	Electric Power
Output Power:	>1000W
Brand:	OEM

Product Description

Low frequency sine wave inverter
1.Overload and short circuit protection
3.Wide input voltage range (145-280VAC)
4.Pure sine wave output

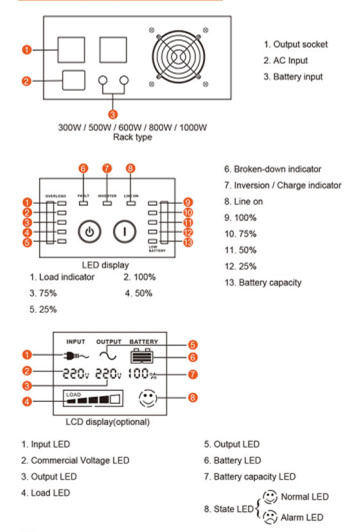

5.LCD/LED option
6.Built-in AVR
7.Max charge current 25A

Specification
Model			EP20-300	EP20-500	EP20-600	EP20-800	EP20-1000
Default Battery System Voltage			12VDC		12VDC/24VDC	12VDC/24VDC	12VDC/24VDC
Inverter Output	Rated Power		300W	500W	600W	800W	1000W
	Waveform		Pure sine wave
	Nominal Output Voltage RMS		100V/110V/120V 220V/230V/240VAC(+/-10%RMS)
	Output Frequency		50Hz/60Hz+/-0.3Hz
	Inverter Efficiency(peak)		>88%
	Line Mode Efficiency		>95%
	Power factor		1.0
	Typical Transfer Time		Typical 2~6ms,10ms(max)
AC Input	Nominal Voltage		100V/110V/120V 220V/230V/240VAC
	Voltage Range		96-132VAC 145-275VAC (For Personal Computers)
	Frequency Rang		50Hz/60Hz(Auto sensing) 40-80Hz
Battery	Minimum input Voltage		12VDC		12VDC/24VDC	12VDC/24VDC	12VDC/24VDC
	Minimum Start Voltage		10.5VDC/21VDC
	Low Battery Alarm		10.5VDC+/-0.3 / 21VDC+/-0.6
	Low Battery Cutoff		16.0VDC+/-0.3 / 20VDC +/-0.6
	High Voltage Alarm		15.5VDC+/-0.3 / 31VDC+/-0.6
	High Battery Voltage Recover		15VDC+/-0.3 / 30VDC+/-0.6
Charger	Charger Voltage		14V+/-0.2 / 28V+/-0.4
	Overcharge protection S.D.		15.5VDC / 31VDC
	Maximum Charge Current		15A-25A
Bypass & Protection	Nominal Input Frequency		50Hz or 60Hz
	Overload Protection(SMPS Load)		IPS automatically shutdown if overload exceeds 120% of normal value for 30seconds,IPS automatically resume work if overload comes back to rated load
	Output Short Circuit Protection		fuse
	Bypass breaker Rating		10A
	Max Bypass Current		10Amp
Mechanical Specifications	Dimensions(WHD)		265120295mm
	Net weight(kg)		7kg	9.5kg	10.5kg	12kg	12.5kg
	Shipping Dimensions(WHD)		316185377mm
	Shipping Weight(kg)		7.5KG	10KG	11KG	12.5kg	13kg
Other	Operating temperature range		0ºC-40ºC
	Audible Noise		60dB MAX
	Display		LED or LCD optional
	Standard warranty		1 year
	Loading(20GP/40GP/40HQ)		1200pcs /2400pcs / 2800pcs
* Product specifications are subject to change without further notice

Approximate Back-up Time Table
Power Rate(w)	Backup time(H) @1*100AH	Backup time(H) @2*100AH	Backup time(H) @4*100AH	Backup time(H) @4*200AH	Backup time(H) @8*200AH
1000	0.4806	1.602	3.50304	7.6896
2000	0.2136	0.4806	1.602	3.50304	7.6896
3000	0.1068	0.2848	0.8544	2.136	4.8416
4000		0.2136	0.4806	1.602	3.50304
5000		0.12816	0.34176	1.19616	2.73408
6000		0.1068	0.2848	0.8544	2.136
