Low Voltage Heat Shrinkable Insulation Sleeve for Copper Busbar

Name: Low Voltage Heat Shrinkable Insulation Sleeve for Copper Busbar
Brand: all-electronics-online.com
SKU: 725192745
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 1.8-2.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPRS-LV
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Insulation Protection
Rated Voltage:	1kv
Tensile Strength:	8.0MPa
Flammability:	VW-1
Application:	Switch Baseplate
Type:	Insulation Sleeve
Chemistry:	Organic Insulation
Thermal Rating:	250 250
Maximum Voltage:	<10KV
Material:	PE
Certification:	RoHS, ISO, SGS
Color:	Black,Yellow,Green,Red
Brand:	Volsun

Product Description

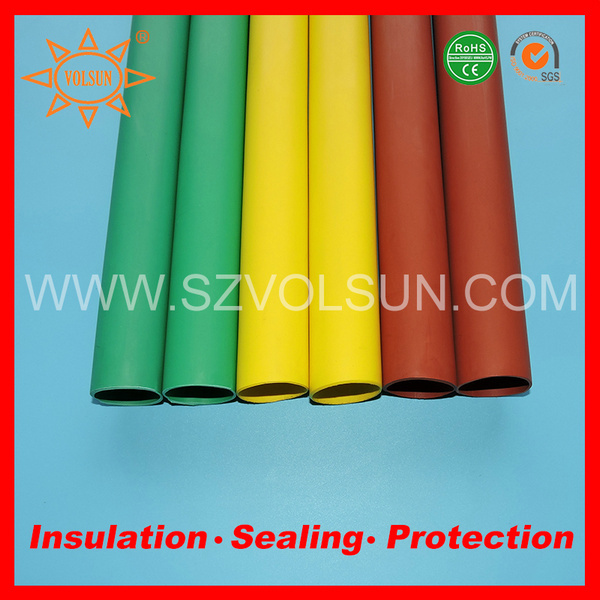

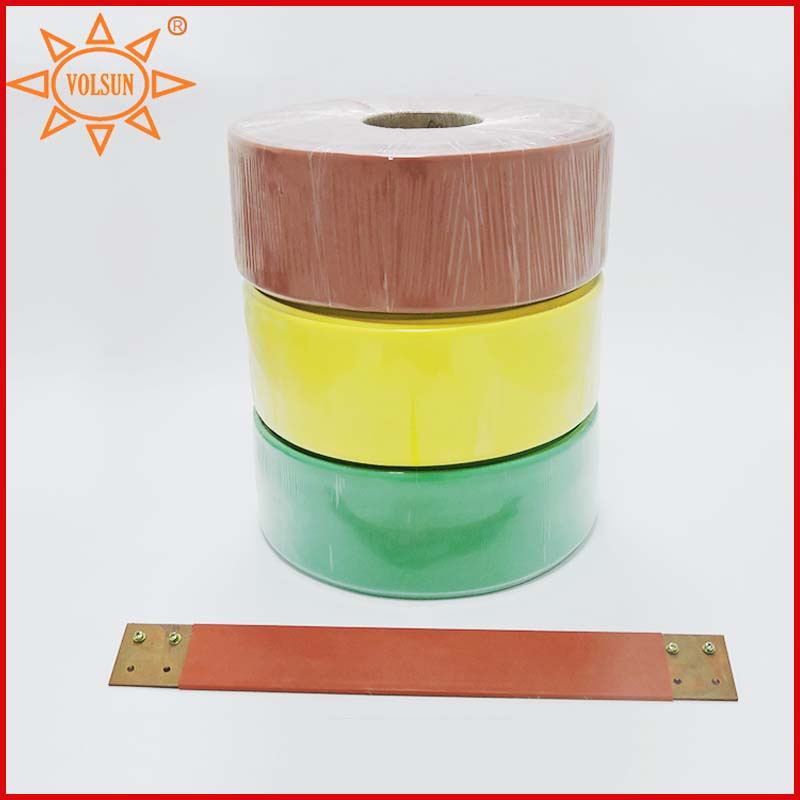

Low Voltage Heat Shrinkable Insulation Sleeve For Copper Busbar

Description:

Tracking resistant busbar heat shrink tube, made of radiation cross-linked polyolefin. Typical applications include insulation of electrical bus bar with 1KV or lower voltage ratings, rectangular, square and round bus bars, inline bolted connections of rectangular bus bars, copper or aluminum bus bars, metal-clad switchgear, metal-enclosed bus bar, substation switchgear etc.

Features:

. Meets: GB/T 1059-2007
. Shrink ratio: 2: 1
. Tracking resistant, low smoke emitting, high strength, flexible, flame retardant
. Min. Shrink temperature: ≥ 84° C
. Min. Full recovery temperature: ≥ 120° C
. Continuous operating temperature: -55° C~125° C
. RoHS compliant
. Standard colors: Red, yellow, green and other colors available on your request

Dimension:

Size	Expanded inner diameter ( mm )	Recovered ( mm )		Standard package
Size	Expanded inner diameter ( mm )	Inner diameter	Wall thickness	m/spool
10kV 15/6	≥15	≤6.0	2.5±0.20	25
10kV 20/8	≥20	≤8.0	2.5±0.20	25
10kV 25/10	≥25	≤10.0	2.5±0.20	25
10kV 30/12	≥30	≤12.0	2.5±0.20	25
10kV 40/16	≥40	≤16.0	2.8±0.30	25
10kV 50/20	≥50	≤20.0	2.8±0.30	25
10kV 65/26 *	≥65	≤26.0	2.8±0.30	25
10kV 75/30 *	≥75	≤30.0	2.8±0.30	25
10kV 85/34 *	≥85	≤34.0	2.8±0.30	25
10kV 100/40	≥100	≤40.0	2.8±0.30	25
10kV 120/48	≥120	≤48.0	2.8±0.30	25
10kV 150/60	≥150	≤60.0	2.8±0.30	25
10kV 180/72	≥180	≤72.0	2.8±0.30	25
10kV 210/84 *	≥210	≤84.0	2.8±0.30	20
10kV 230/92 *	≥230	≤92.0	2.8±0.30	20
10kV 250/100 *	≥250	≤100	2.8±0.30	20
10kV 300/120	≥300	≤120	2.8±0.30	15
