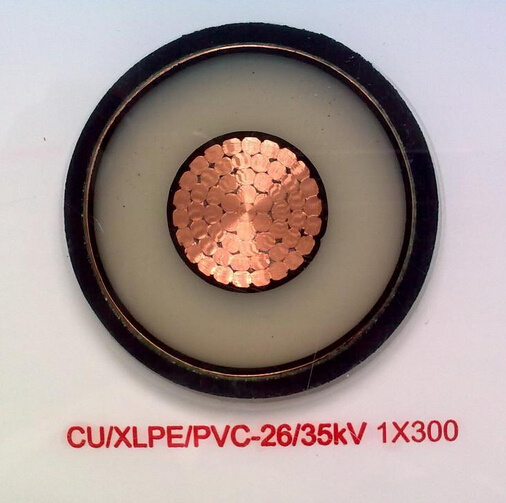

Low Voltage, Medium Voltage, Electric Power Cable, 300mm2

Name: Low Voltage, Medium Voltage, Electric Power Cable, 300mm2
Brand: all-electronics-online.com
SKU: 697285122
Availability: InStock
Rating: 4.7 (121 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	300mm2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	up to 800mm2
Alternative Voltage:	up to 35kv
Armour:	Swa or Sta
Voltage:	Low and Medium Voltage Cable
Insulation Material:	XLPE
Current:	DC & AC
Application:	Power Station
Certification:	CE
Brand:	Yifang

Product Description

Specifications
300mm power cable
1.Certificate:ISO,CE,SONCAP,UL
2.Asia,South Americ,Africa
3.Fast delivery

300mm electric power cable high voltage

International:IEC 60502-2, IEC 60228, IEC 60840, IEC62067
Chinese:GB/T11017-2002
Other standards such as BS,DIN and ICEA upon request
Applications
This product is suitable for AC rated voltage(u0/u)to 64/110kv transmission line system of neutral point grounding.
Operation characteristics

Type of cable

Type		Designation
Copper conductor	Aluminum conductor	Designation
YJLW02	YJLLW02	The cross-linkage XLPE insulated and wrinkled aluminum wrapper waterproof PVC sheathed power cable
YJLW02-Z	YJLLW02-Z	The cross-linkage XLPE insulated and wrinkled aluminum wrapper waterproof PVC sheathed vertical waterproof power cable
YJLW03	YJLLW03	The cross-linkage XLPE insulated and wrinkled aluminum wrapper waterproof PE sheathed power cable
YJLW03-Z	YJLLW03-Z	The cross-linkage XLPE insulated and wrinkled aluminum wrapper waterproof PVC sheathed vertical waterproof power cable

Production range of cable

Type	Nomber of core	Rated Voltage kV
		64/110
		Nominal cross-section of conductlr mm2
YJLW02 YJLLW02	1	240	300	400	500	630	800	1000	1200	1400	1600
YJLW02-Z YJLLW02-Z
YJLW03 YJLLW03
YJLW03-Z YJLLW03-Z

Note:* the copper conductor above 800mm2 takes separate conductor.
Technicalcharacteristics

Nominal cross-section of conductor mm2	Diameter of conductor Mm	Outer diameter of cable Mm	Weight of cable Kg/km		Resistance of conductor Ω/km		Carrier current capacity A	Capacitance ΜF/km	Short-circuit current kA/3S
Nominal cross-section of conductor mm2	Diameter of conductor Mm	Outer diameter of cable Mm	PVC Sheath	PE Sheath	20ºC DC	90ºC AC	Carrier current capacity A	Capacitance ΜF/km	Conductor	Metal sheath
240	18.4	89.9	8348	7708	0.0754	0.0961	543	0.135	20	22
300	20.6	91.1	8990	8341	0.0601	0.0766	597	0.146	25	22
400	23.8	92.3	9731	9073	0.0470	0.0599	657	0.165	33	22
500	26.6	94.5	10882	10208	0.0366	0.0467	718	0.182	41	23
630	30.0	96.9	12352	11660	0.0283	0.0361	779	0.201	52	24
800	34.0	99.9	14168	13454	0.0221	0.0282	837	0.223	66	25
1000	38.2	105.0	16460	15708	0.0176	0.0224	914	0.246	83	26
1200	42.6	109.4	18685	17900	0.0151	0.0193	962	0.266	99	27

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
