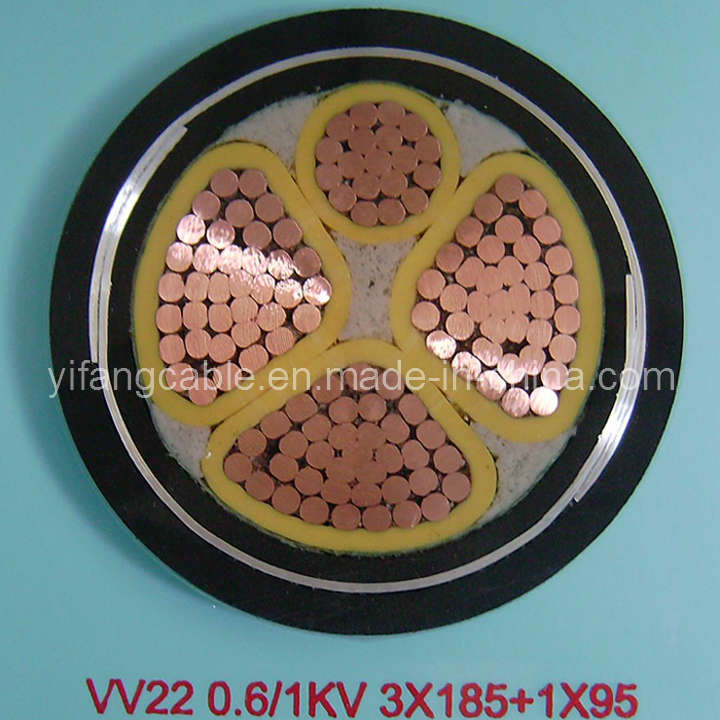

Low Voltage Power Cable (VV22)

Name: Low Voltage Power Cable (VV22)
Brand: all-electronics-online.com
SKU: 667063642
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	Negotiable
Trade Terms:	25 Days After Receive The Down Payment or L/C
Min Order:	500/Meter
Pay Type:	L/C

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV22
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	ISO
Current:	DC Cable
Voltage:	Low and Medium Voltage Cable
Application:	Power Station
Insulation Material:	PVC or XLPE

Product Description

1. The long-term permissible operation temperature of conductor shall not be higher then70 degree centigrade.
2. Conductor maximum short circuit(not more than 5seconds)temperature shall not be higher then 160 degree centigrade.
3. The cable is not limited by drop in level when eing laid, and the environment temperature shall not be 0 degree centigrade.
4. Perfect chemical stability, resistant against acids, alkalis, grease and organic solvents, and flame retardance.
5. Light weight, perfect bending properties, installed and maintained easily and conveniently.

Voltage rating: 0.6/1KV, 3.6/6KV.

Conductors: Copper or aluminum.

Number of cable cores: One core(Single core), two cores(Double cores), three cores, four cores(Four Equal-section-area cores or three equal-section-area and one smaller section area neutral core), five cores (Five equal-section-area cores or three equal-section-area cores and two small area neutral cores).

We provide armored type and non-armored type for the cables stated.

Outer sheath: PVC or XLPE.

STANDARDS: IEC AS BS DIN JIS ASTM CSA ASA NFC

Zhengzhou Yifang Cable Co., Ltd is a large joint-stock\hi-tech enterprise established in 1988. We are specialized in wires & cables, including designment, production and sales.

There are more than 500 staffs in our factory including over 50 technical personnel, 5 senior engineers. With complete advanced cable producing equipments over 150 sets, complete testing equipments, a national level fire-resistant & flame retardant cable laboratory. Our technology has reached advanced levels at home and abroad.

Our main products include: Power Cable for voltage up to 220KV, Overhead insulated cable, ABC Cable, Building Cable and flexible cord, Control Cable, Rubber Cable, Bare Conductor(ACSR, AAC, AAAC, BCC), Welding Cable, Galvanized Steel Wire(Stay wire), flame retardant mining cable, etc

We have own IM/EX right, our products have been exported to Europe, Australian, Middle-east, South-east Asia, Africa, American, South American etc., being subjected to consistent good opinion of customers.
