| Prod Model: |
MA1202 |
| Power Supply: |
220V 50/60Hz |
| Input Sensitivity: |
0.775V. 1.0V, 1.55V |
| Input Impedance: |
10k/20k Ohurs, Unblanced or Blanced |
| Imput Cmrr: |
-75dB |
| Model: |
Ma1200 |
| Output: |
2X350W |
| Power Supply: |
220V,160; 50/60Hz |
| IMD: |
0.01%; Ratedpower at 8ohms |
| Imput Cmrr: |
-75dB |
| Indicators: |
-75dB |
| Type: |
Professional Amplifier |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Sound Channel: |
2.1 |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
AB |
| Usage: |
Commercial |
| Output Number: |
2 |
Product Description

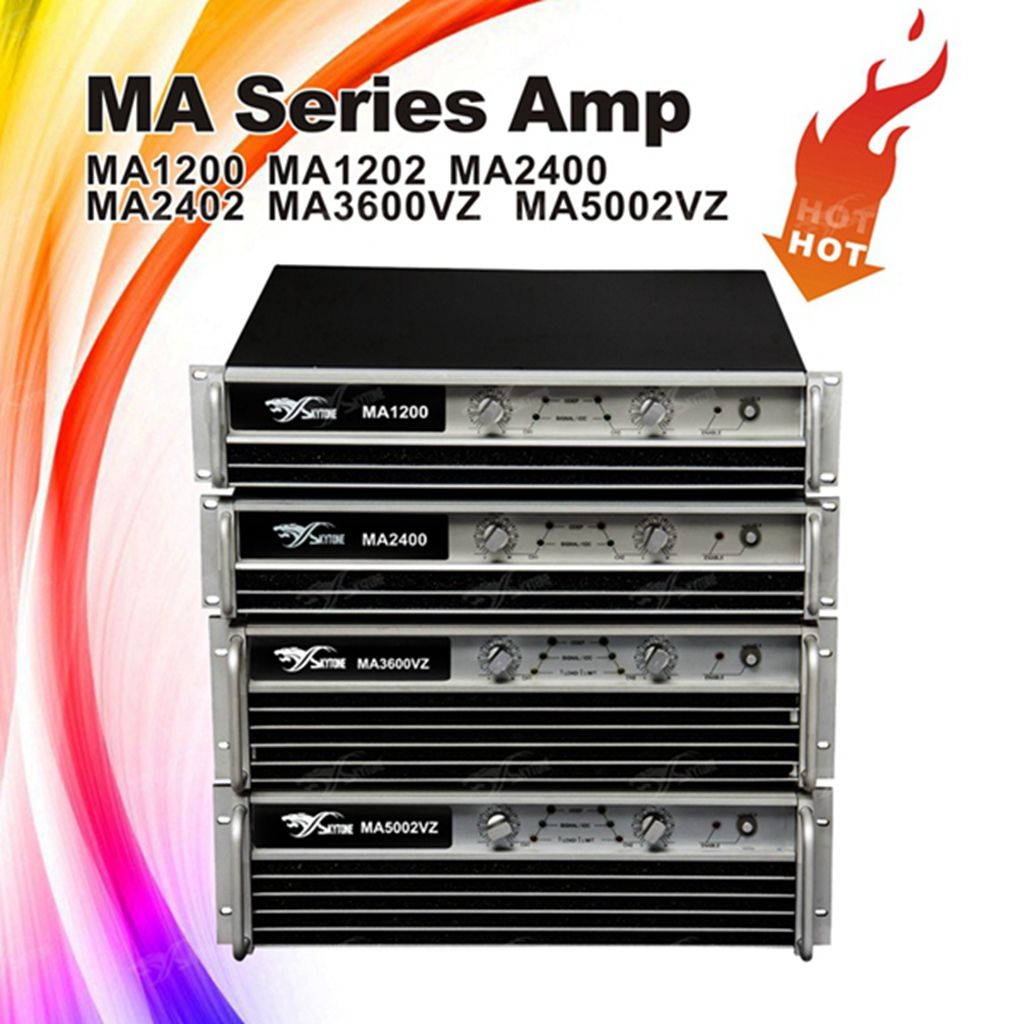

MA1202 2 channels dj audio power amplifier price
MA series power amplifier major features:--Steel chassis with durable black finish
--Aluminum front panel with Lexan overlay
--Two balanced -inch phone jacks on the back panel and two balanced three-pin female XLR connectors
--Two sets of color-coded 4-way binding posts Output Connectors
--Ultra-Low Distortion:
--VZ Power Supply Technology
--On-Board Compressors
--Loudspeaker Offset Integration
--ODEP(R) Protection
--Distortion Indicator
--Selectable Mono Modes
--Unique Dual-Level Design
--Selectable Sensitivities
--THX ApprovedProfessional power amplifier MA series specifications:| Model | MA1202 | MA2400 | MA3600 | MA5002 |
| Output 8ohms 1KHz0.1% THD Stereo Model: | 2x350W | 2x600W | 2x850W | 2x1100W |
| Output 4ohms 1KHz0.2% THD Stereo Model: | 2x500W | 2x850W | 2x1180W | 2x1650W |
| Output 2ohms 1KHz0.3% THD Stereo Model: | 2x700W | 2x1250W | 2x1650W | 2x2300W |
| Output 8ohms 1KHz0.4% THD bridge Model: | 1000W | 1700W | 2200W | 3000W |
| Output 4ohms 1KHz0.5% THD bridge Model: | 1500W | 2500W | 3200W | 4500W |
| Signal/noise: | 103dB | 105dB | 105dB | 106dB |
| Slew Rate: | 60v/us | 60v/us | 80v/us | 80v/s |
| Damping factor: | 400: 01: 00 | 450: 01: 00 | 500: 01: 00 | 550: 01: 00 |
| Fuse: | T8A | T10A | T12A | T15A |
| Power Supply: | 220V 50/60HZ |
| Input Sensitivity: | 0.775V. 1.0V, 1.55V |
| Frequency Response @ 1 Watt into 8ohms: | +0.1dB 20HZ-20KHZ |
| THD+N: | ≤ 0.01% Rated Power @ 8Ω 1KHZ |
| IMD: | ≤ 0.01% Rated Power @ 8Ω |
| Input Impedance: | 10K/20K ohurs, unblanced or blanced |
| Crosstalk at Rated Output 8ohms 1KHZ | ≤ -70dB |
| Imput CMRR: | ≤ -75dB |
| Indicators: | Signal, Protect, Clip, Limited |
| New Weight: | 16.3kg | 18.45kg | 19.45kg | 32kg |
| Dimensions(WxDxH): | 483x480x88 | 483x480x133 |
Certifications of our power amplifiers:
About our company:Skytone audio Co.,Ltd was founded in 2004, which is a professional manufacturer specializing in production, sale and after-sale service of professional speaker cabinets, amplifiers and other audio periphery products.
More details please contact us. Thank you for your scanning.Important Notification:
No. 1Skytone Audio will attend 2017 Guangzhou Entertainment Technology Show (GET Show), we will display new line array , amplifier and other high-end pro sound equipment, warmly welcome you to visit us.
Date: Feb.27 -Mar.2, 2017
Add.: Guangzhou Pazhou Poly World Trade Center
Booth: Hall 3, 3A-06
GET show website: www.getshow.com.cn
No. 2
Skytone Audio China New Year(Spring Festival) Holiday:
Jan. 18th -Feb. 7th.
During this time we are not working.
So if you need to order, please pay attention to the time.

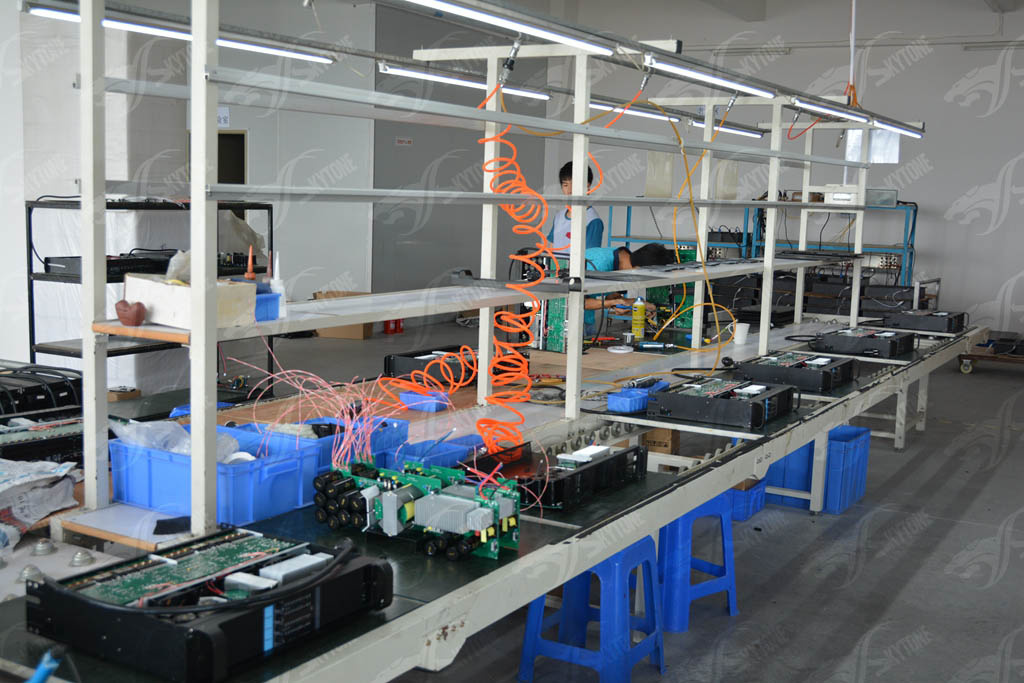

Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake, with 1000 square meters company.

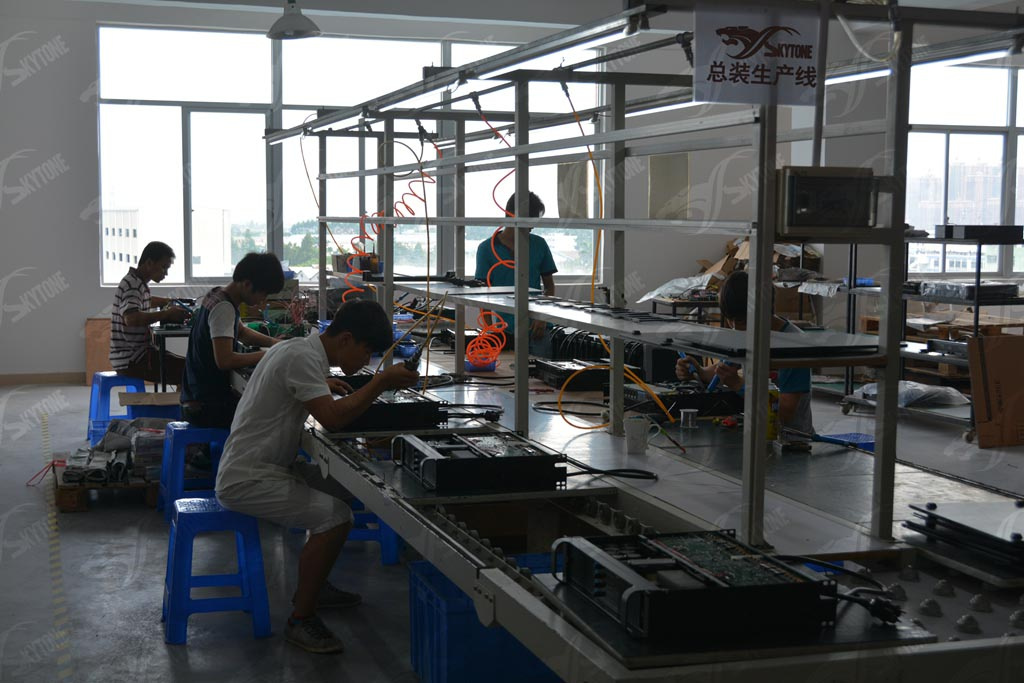

And our factory is located in Panyu district, Guangzhou city with more than 2000 square meters.
Skytone is White hair in PRO Audio business. We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.
Quality is Skytone's culture. Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.
To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!
Making your world sound better!
