Manufactured Cable Accessory Copper Electrical Connector

Name: Manufactured Cable Accessory Copper Electrical Connector
Brand: all-electronics-online.com
SKU: 728656052
Availability: InStock
Rating: 4.5 (107 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GTY
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Copper
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Gty Connector
Name:	Gty Connector
Special:	High Quality
Certificate:	ISO9001
Samples:	Available

Product Description

Product Description

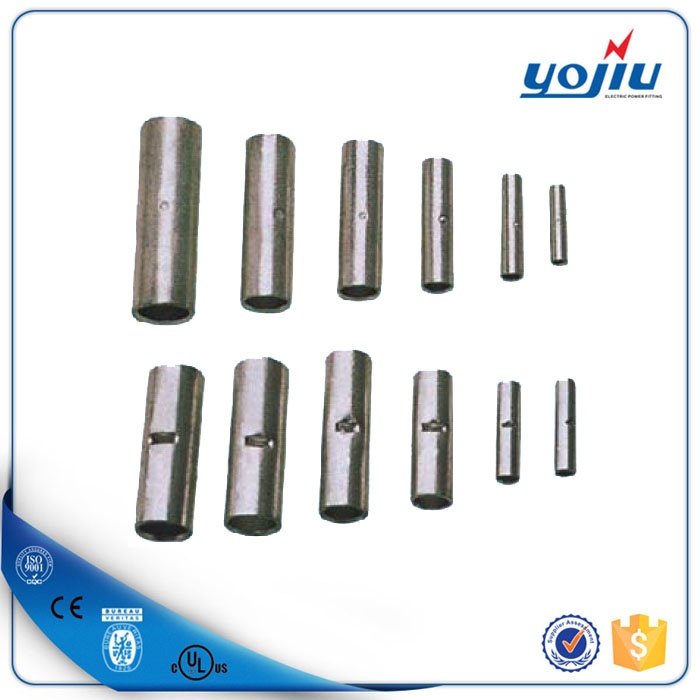

GT Copper Connector(Oil Plugging),tube cable connector

GT copper connector(oil plugging) are suitable for the connection of copper conductors (section 16-500mm2) in power cable with electronic equiment. They are made of higher 99.9% percent pure copper,and can be plated with tin as customer required.

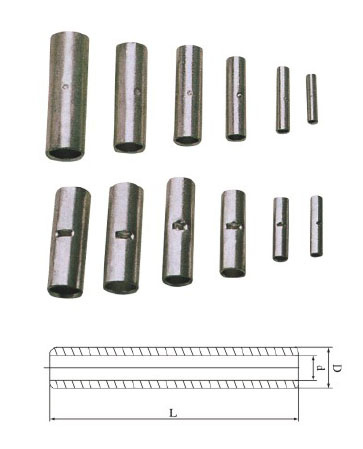

Dimension

Item No.	Cable spec(mm²)	Dimensions(mm)			Note
Item No.	Cable spec(mm²)	D	d	L	Note
GTG1.5	1.5	3.7	1.8	20	(1)Can be produced according to customer's drawings.
GTG2.5	2.5	4	2.5	20
GTG4	4	4.8	3.1	20
GTG5.5	5.5	5.5	3.5	25
GTG10	10	6.8	4.8	30
GTG16	16	7.5	5.5	35
GTG25	25	9	7	40
GTG35	35	10.5	8.1	45
GTG50	50	12.5	9.8	50
GTG70	70	14.5	11.5	55
GTG95	95	17.5	13.5	60
GTG120	120	19.5	15.5	65
GTG150	150	21	16.5	70
GTG185	185	23.5	18.5	75
GTG240	240	26.5	21	80
GTG300	300	30	24	85
GTG400	400	34	27	90
GTG500	500	38	30	100
GTG630	630	45	35	110
GTG800	800	50	39	150
GTG1000	1000	56	44	170

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
