Manufactured Gtl Bimetal Types Cable Connector

Name: Manufactured Gtl Bimetal Types Cable Connector
Brand: all-electronics-online.com
SKU: 728656222
Availability: InStock
Rating: 4.6 (76 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GTL
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Copper&Aluminium
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Gtl Connector
Name:	Gtl Connector
Special:	High Quality
Certificate:	ISO9001
Samples:	Available

Product Description

Product Description

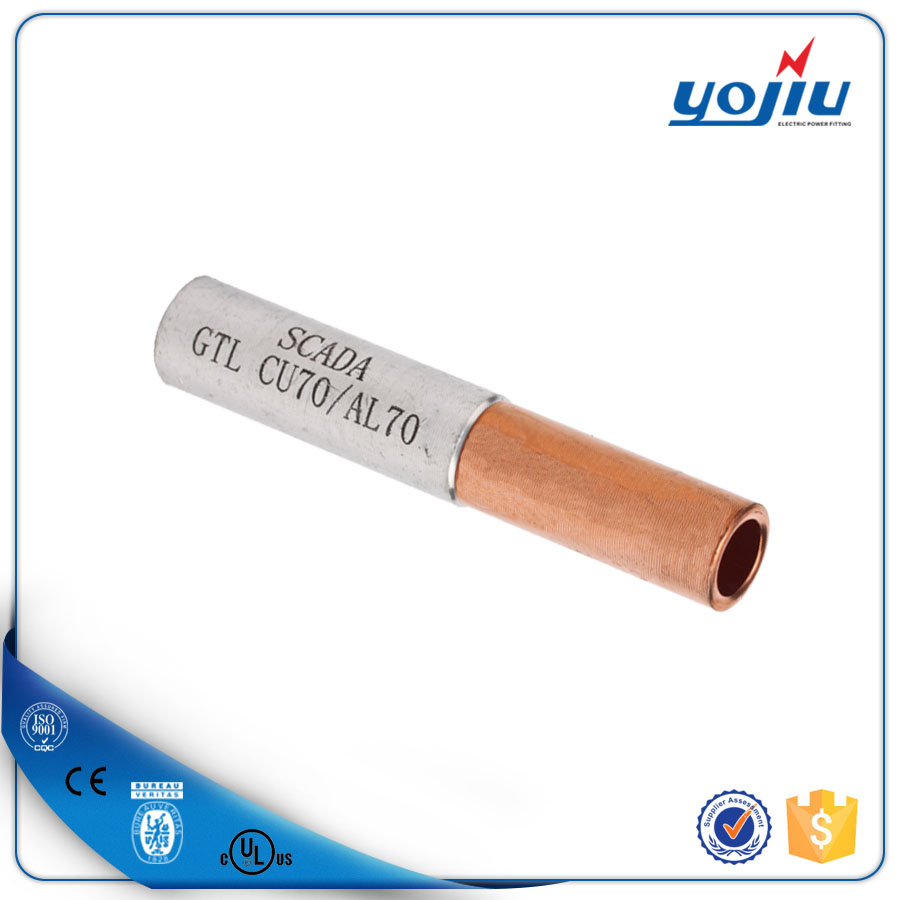

GTL Bimetallic Conenctor Link

These cable connectors are applicable to connect the circular wire and hemicycle-sector wire in distribution equipment or power supply cables. GTL series hole passing connection tube is made of friction-welding craft,both top quality of copper and aluminium.

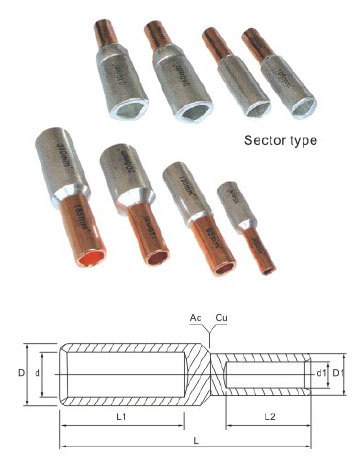

Dimension

Item No.	Cable spec(mm²)		Dimensions(mm)
Item No.	Al	Cu	d1	D1	d	D	L1	L2	L
GTL16	16	10	5	9	6	10	35	30	75
GTL25	25	16	6	10	7	12	35	30	80
GTL35	35	25	7	11	8.5	14	42	30	85
GTL50	50	35	8.5	13	9.5	16	42	32	90
GTL70	70	50	9.5	15	11.5	18	45	38	95
GTL95	95	70	11.5	17	13.5	21	45	40	100
GTL120	120	95	13.5	19	15	23	50	42	107
GTL150	150	120	15	21	17	25	55	44	120
GTL185	185	150	17	23	18.5	28	60	46	125
GTL240	240	185	19	26	21	30	60	54	130
GTL300	300	240	21	28	23	34	65	56	145
GTL400	400	300	23	30	27	45	70	60	155
GTL500	500	400	27	34	29	47	75	65	165
GTL630	630	500	29	38	35	54	80	70	180

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
