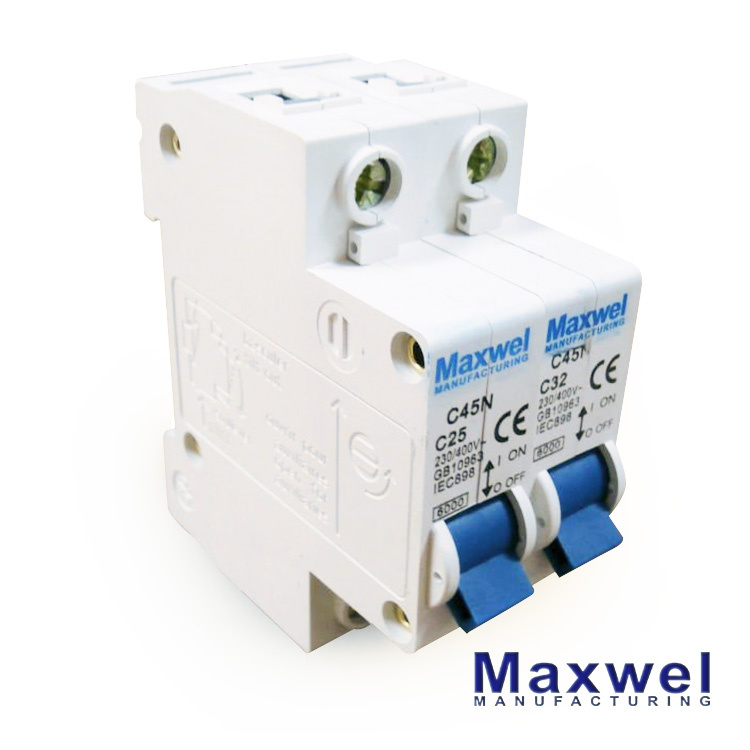

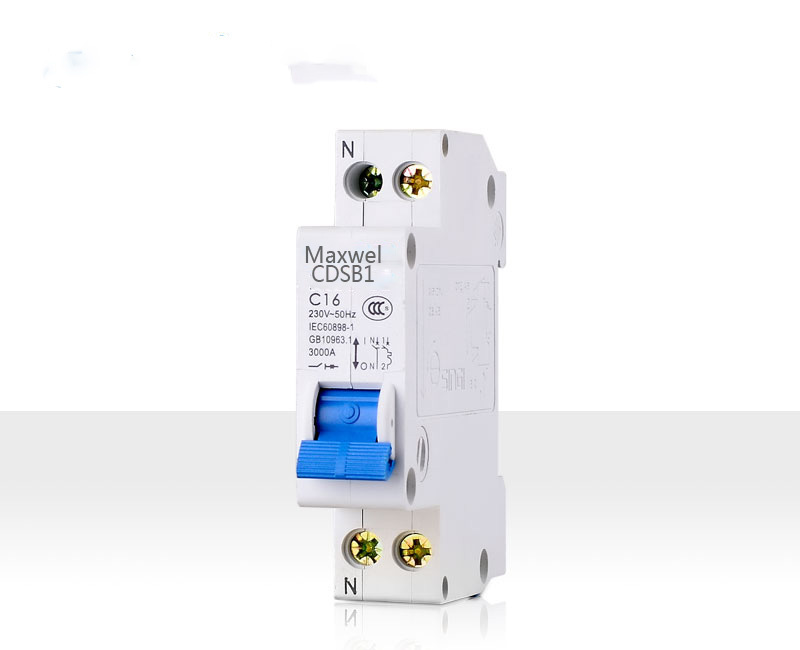

Maxwel MCB Switchimg Miniature Circuit Breaker

Name: Maxwel MCB Switchimg Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 826593245
Availability: InStock
Rating: 4.8 (73 reviews)

Price:	US $ 0.99/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDSB2
Colour:	Grey
Primary Current:	5A~5000A
Class:	0.5/1.0
Frequency:	50/60Hz
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE

Product Description

switch miniature circuit breaker
Application
CDSB2 Is an all new high performance current device with the ability to disconnect short curcuit of up to 10ka.which is the newestmdel in 21 century.
CDSB2 has many merits of high protective grade(up to lp200,high breaking capacity,good reliability of sensitive action,convenient multi pole assorting,long using life ect.They are mainly used for overload and short circuit protection with the circuit of AC 50Hz,230v in single pole,400v in double,three&commerce,Meanwhile, they are also used in turing on or off the electric apparatus and lighting circuit under the normal condition.
Specification: Tropical

Charater	Standard	Rated current(A)	Poles(P)	Rated Voltage(V)	Breaking capacity(A)
B C D	IEC898	1,2,3,4,5,6,10,16,20,25,32,40,50,63A	1	230/240	6000
	IEC898	1,2,3,4,5,6,10,16,20,25,32,40,50,63A	2,3,4	400/415	6000
	IEC947-2	1,2,3,4,5,6,10,16,20,25,32,40,50,63A	1	130	20000
				230/240	10000
				400/415	3000
			2,3,4	230/240	20000
				400/415	10000
				440	6000

Weight(g)	1P	2P	3P	4P
Weight(g)	102	208	308	408

Product Details:

About Warranty:

At least A year!

Delivery Time:

Whin 15 Days After you place an Order!

FAQ
1: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

2: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

3. How to pay?
A: T/T will be more appreciated. Parpal or Wester Union
30% deposit before producing, 70% balance before loading by T/T.

4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

5. What about the Package?
A: Standard export package and we can make special designed for you if need.
