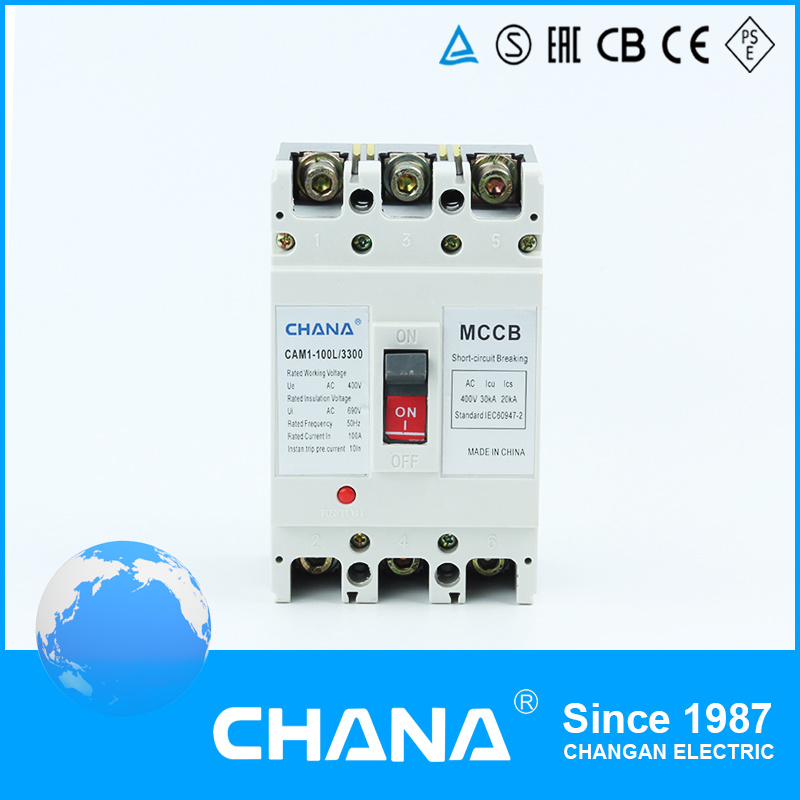

MCCB 100AMP L Type Moulded Case Circuit Breaker (AM1)

Name: MCCB 100AMP L Type Moulded Case Circuit Breaker (AM1)
Brand: all-electronics-online.com
SKU: 743137995
Availability: InStock
Rating: 4.4 (95 reviews)

Price:	US $ 8.71-9.54/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CAM1-100L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Standard:	IEC60947-2 , GB14048.2
Breaking Capacity Level:	L , M and H Type
Warranty:	1.5 Years
Brand Type:	Chana and OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Poles Number:	3
Certification:	TUV
Operation:	Manual Type, Electrica Type
Function:	Short-Circuit and Under Voltage Protection

Product Description

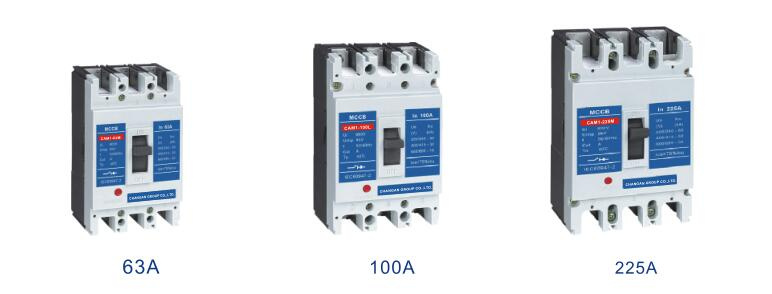

1. Application

CAM1 series moulded case circuit breaker ( named as MCCB in the following) is a new type breaker which is applied with rated insulating voltage 800V (500V for CAM1-63), rated working voltage 690V for CAM1-63) and used for infrequent exchange and startup in AC (60)Hz condition. The MCCB is of protecting function in overloading, short-circuit, and under voltage situation to protect circuit system and power device from damage.

The MCCB can be devided into L; M; H types according to their rated limit short-circuit breaking capacity.

The MCCB is advantageous for its compact body, high breaking capacity ( some even on flying arc), short arc-casting and superior aseismatic function.

The MCCB has function of insulation.

The product complies with IEC60947-2, GB14048.2

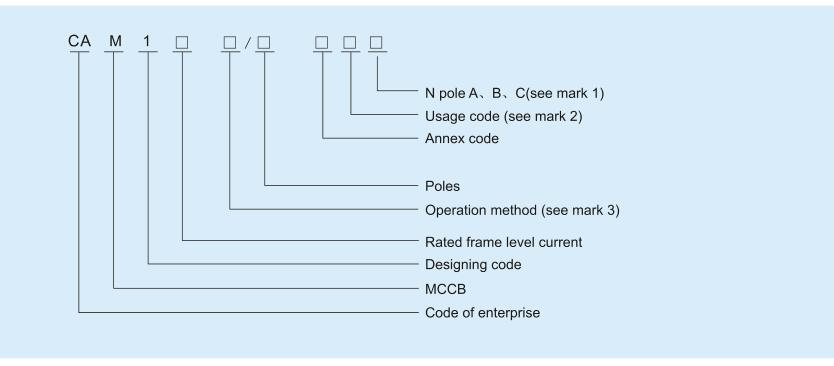

2. Type code and signification

1) N-P type from 4-P has 3 types
A type: N-P without current tripper (normally open)
B type: N-P withour current tripper working together with other 3P
C type: N-P without current tripper working together with other 3P
2) No code for distribution type breaker,2 for motor-protection type
3) No code for distribution type breaker,2 for motor-protection type
4) It can be divided into L (common) type,M (standard) type and H (high) type.L type with connecting current equal to relevant frame level and M type with breaking capacity equaling to their frame level according to their rated limited short-circuit braking capacity(Icu)

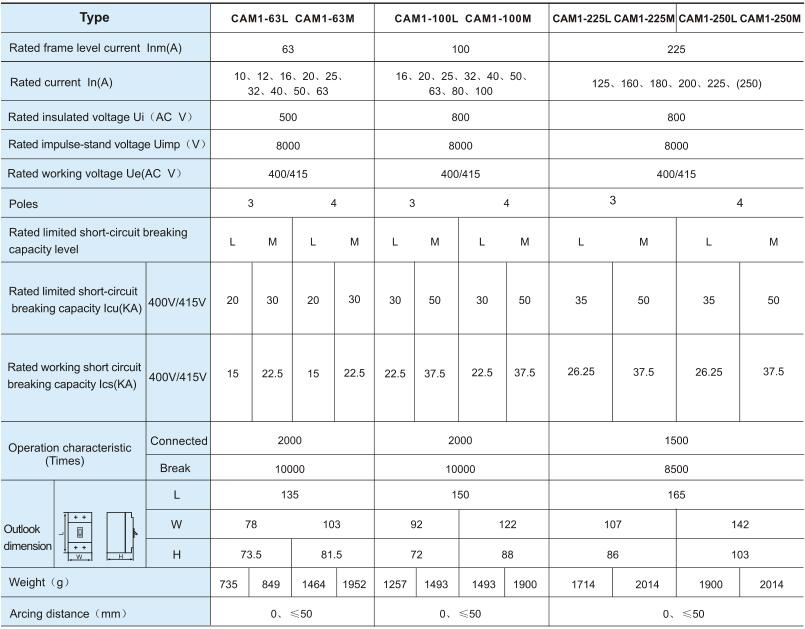

3. Main technique data of MCCB

5. Featured products

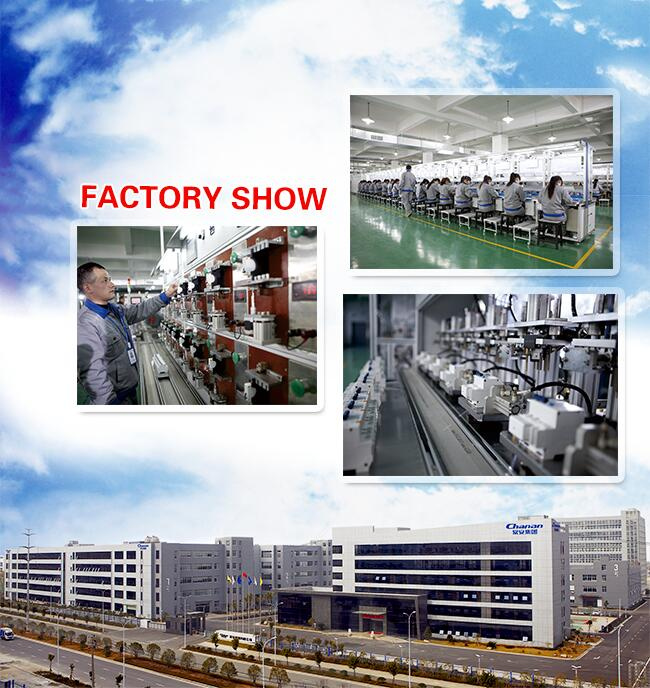

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
