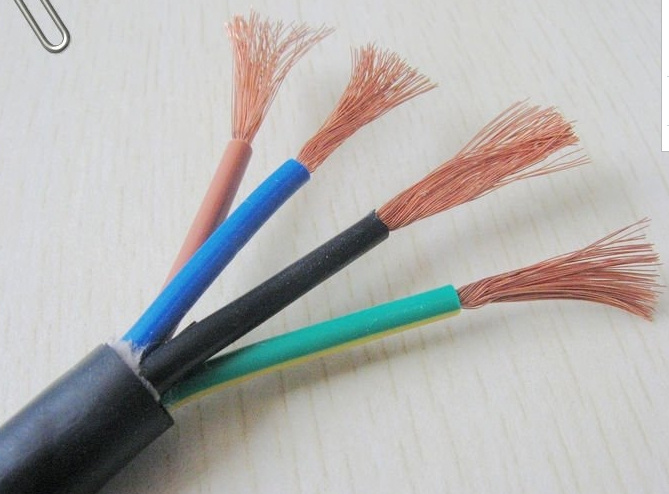

Medium Voltage Power Cable for High Temperature Environment
| Price: |
US $ 0.02-2.5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SIHF/H05SS-F/H0SST-F/YGZ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
Rubber |
| Certification: |
VDE |
| Brand: |
Hoochan |
Product Description
Conductor:bare copper, tinned copper Insulator: silicone rubber Jacket: Silicone rubber Rated Volt.:600/1000VTest Voltage: 3000V. 5MinRated Temp.:-60ºC~+180ºC Mechanical properties Tensile strength: ≥5N/mm2 Elongation at break of insulation: ≥150%
Min.Bending radius: 5×OD Characteristics:Silicone rubber wire & cable have very good flexibility and good performance of resistance to high temperature, range from -55ºC up to 180ºC.The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. Application: Silicone wire & cable are used where high flexibility is required and high temperatuer conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines. | Core×cross section | Structure | Insulation Thickness | Jacket | Cable OD | 20ºC Max.Resist.Ω/KM |
| Nominal | OD | Thickness | Nominal | Toler. |
| mm² | No./Dia. mm | mm | mm | mm | mm | mm | Bare | Tinned |
| 2×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 5.9 | ±0.20 | 39.0 | 40.1 |
| 3×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 6.2 | ±0.20 | 39.0 | 40.1 |
| 4×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 6.8 | ±0.30 | 39.0 | 40.1 |
| 5×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 7.4 | ±0.30 | 39.0 | 40.1 |
| 6×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 7.6 | ±0.30 | 39.0 | 40.1 |
| 7×0.5 | 16/0.20 | 0.6 | 2.15 | 0.8 | 8.1 | ±0.20 | 39.0 | 40.1 |
| 2×0.75 | 24/0.20 | 0.6 | 2.35 | 0.8 | 6.3 | ±0.25 | 26.0 | 26.7 |
| 3×0.75 | 24/0.20 | 0.6 | 2.35 | 0.8 | 6.7 | ±0.30 | 26.0 | 26.7 |
| 4×0.75 | 24/0.20 | 0.6 | 2.35 | 1.0 | 7.7 | ±0.30 | 26.0 | 26.7 |
| 5×0.75 | 24/0.20 | 0.6 | 2.35 | 1.0 | 8.4 | ±0.30 | 26.0 | 26.7 |
| 6×0.75 | 24/0.20 | 0.6 | 2.35 | 1.0 | 8.6 | ±0.30 | 26.0 | 26.7 |
| 2×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 7.1 | ±0.25 | 19.5 | 20.0 |
| 3×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 7.5 | ±0.30 | 19.5 | 20.0 |
| 4×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 8.2 | ±0.30 | 19.5 | 20.0 |
| 5×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 8.9 | ±0.30 | 19.5 | 20.0 |
| 6×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 9.2 | ±0.30 | 19.5 | 20.0 |
| 7×1.0 | 32/0.20 | 0.6 | 2.55 | 1.0 | 9.7 | ±0.30 | 19.5 | 20.0 |
| 2×1.5 | 30/0.25 | 0.6 | 2.9 | 1.0 | 7.8 | ±0.30 | 13.3 | 13.7 |
| 3×1.5 | 30/0.25 | 0.6 | 2.9 | 1.0 | 8.3 | ±0.30 | 13.3 | 13.7 |
| 4×1.5 | 30/0.25 | 0.6 | 2.9 | 1.0 | 9.0 | ±0.30 | 13.3 | 13.7 |
| 5×1.5 | 30/0.25 | 0.6 | 2.9 | 1.1 | 10 | ±0.30 | 13.3 | 13.7 |
| 6×1.5 | 30/0.25 | 0.6 | 2.9 | 1.1 | 10.4 | ±0.30 | 13.3 | 13.7 |
| 7×1.5 | 30/0.25 | 0.6 | 2.9 | 1.1 | 10.9 | ±0.30 | 13.3 | 13.7 |
| 10×1.5 | 30/0.25 | 0.6 | 2.9 | 1.2 | 14 | ±0.30 | 13.3 | 13.7 |
| 2×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 9.2 | ±0.30 | 7.98 | 8.21 |
| 3×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 9.8 | ±0.30 | 7.98 | 8.21 |
| 4×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 10.6 | ±0.30 | 7.98 | 8.21 |
| 5×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 11.6 | ±0.30 | 7.98 | 8.21 |
| 6×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 12 | ±0.30 | 7.98 | 8.21 |
| 7×2.5 | 50/0.25 | 0.7 | 3.4 | 1.2 | 12.6 | ±0.30 | 7.98 | 8.21 |

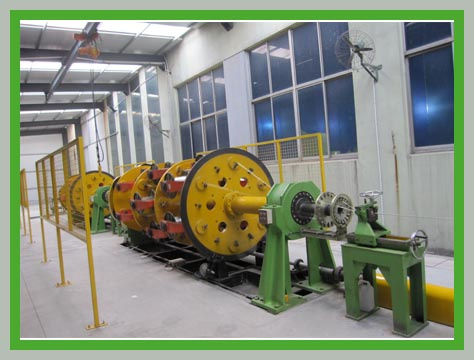

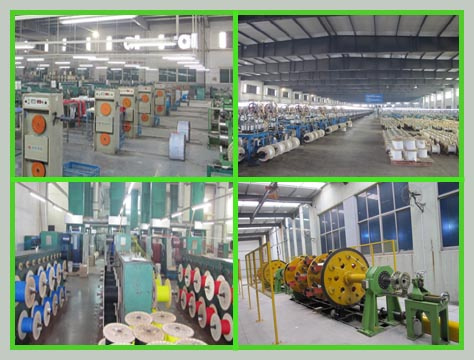

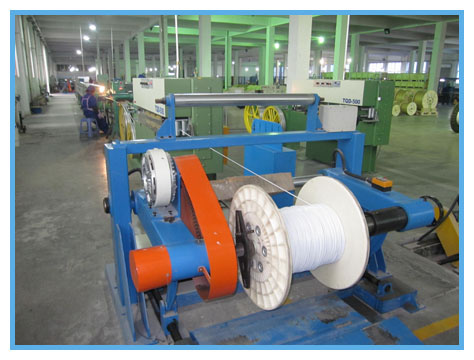

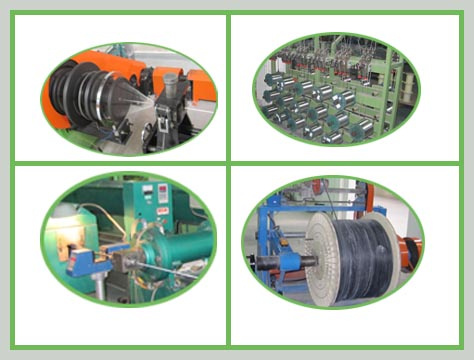

Wuxi Huacheng Cable Co., Ltd. is specialized in production of heat resistant silicone rubber wire & cable, also engaging in its R & D field, total building covers about 20000 square meters, with kinds of advanced Rubber extruding machines, Coating equipment lines, Braiding machines 1500 sets etc. After tens of year constant development, our annual output is more than 250, 000 KMS and became the famous leader and production base in domestic market.
Most of the products have passed USA UL/cUL, Germany VDE, China CCC, Japan F-MARK and ROHS Certification, completely meet with EU environment protect policy requirement, acquired ISO9001: 2000 International Quality Management & ISO14001 Environment Management Certification. All the staff exalt the tenet "Pursue truth, Honor fact, Keep Innovation", insisting on the quality policy of "Customer's wishes oriented, adopting PDCA circulation, continuously improve product and service, fully satisfying customers", based on above, our products sell well everywhere, applying to famous corporations, and even sell far to Occident, Mid-east, Southeast Asia countries and area, acquire good reputation and approval of customers.
More than hundreds of series of products are optional for customer's choice, mainly used for new energy, wind power motor, metallurgy, power, railway, home electrical appliance, lighting relative fields.
