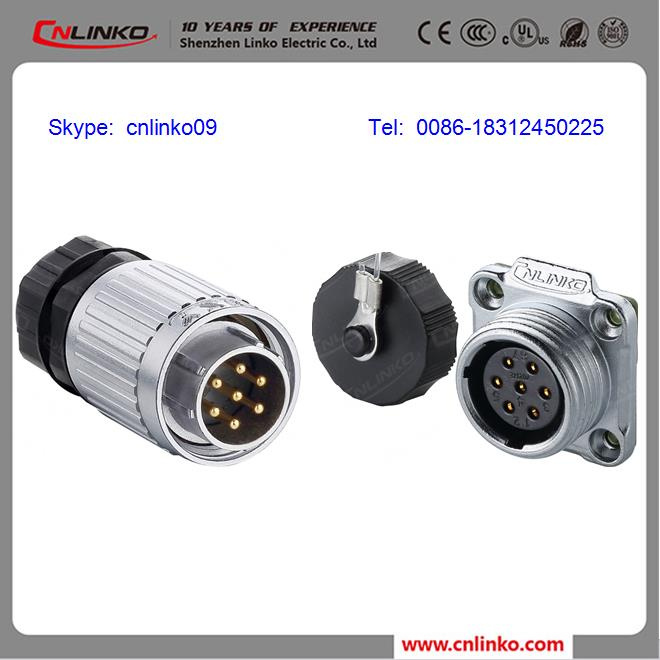

Metal Circular 7pin Power Connector/Quick Latching Connector

Name: Metal Circular 7pin Power Connector/Quick Latching Connector
Brand: all-electronics-online.com
SKU: 790001095
Availability: InStock
Rating: 4.4 (64 reviews)

Price:	US $ 4.2/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	YW-20-C07PE-02-001&YW-20-J07SX-02-001
Waterproof Level:	IP65/IP67
Materials:	Plastic and Metal
Certification:	UL, Ce, RoHS, CCC, ISO9001
Gender:	Male
Application:	UHF

Product Description

metal circular 7pin Power Connector/Quick Latching Connector

YW-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.

Product Data Sheet

YW-20-C07PE-02-001,YW-20-J07SX-02-001
Connecting mode:	1/4 bayonet connecting type
Protection level:	IP65/IP67
Cable specification:	1.0 mm2 ~1.5 mm2 /18-16 AWG
Diameter range:	Φ8mm ~Φ12mm
Contact diameter×Qty:	Φ2.0×7
Current rating(A):	12A
Operating voltage(AC.V.rms):	500V
Withstand voltage(AC.V)1min:	2500V
Contact resistance:	<1mΩ
Insulation resistance:	>500MΩ
Durability:	≥500 mating&unmating cycles
Temperature rating:	-40°C~80°C
Method of connecting cable:	solder
Prevent the combustion level:	UL94-V0
Temperature rise:	20A per contact at 30°C, 25A per contact at 40°C, 30A per contact at 50°C.
Produce type:	Circular Plastic Connector
Material:
Shell&insulated parts:	High performance engineering plastics
Hardware metal:	Zinc alloy(pearl hard chromium)
Contact pin:	Copper alloy(gold-plated)
Spring:	Stainless steel
Sealing:	Silica gel

Main characteristics:
- Sealed against dust and fluid (IP65/IP68)
- Vibration resistance,impact resistance,stretching resistance
- With one hand, can quickly insert or pull out

Application industries:
- Stage equipment	- The smart grid
- Medical equipment	- Server
- Solar energy equipment	- Ship equipment
- Electric power equipment	- Vehicle equipment
- Communications equipment	- Heavy machinery

Payment term: T/T, Western Union, Paypal in advance
Lead time: 5-7 working days below 5000set
Shippment: by express, by air, by sea
