Mfr012 Mechanical Hygrostat Mfr 012 with 100% Guaranteed Quality

Name: Mfr012 Mechanical Hygrostat Mfr 012 with 100% Guaranteed Quality
Brand: all-electronics-online.com
SKU: 748767985
Availability: InStock
Rating: 5 (70 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MFR012
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Humidity:	30-95rh
Function:	Control Enclosure Heaters
Theory:	Temperature Controller
Installation Type:	DIN Type
Material:	Plastic

Product Description

Description:

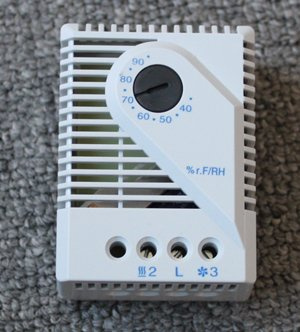

Mechanical Hygrostat MFR 012
Adjustable relative humidity
Change-over contact
High switching capacity
Easily accessible terminals
Clip fixing
The electromechanical hygrostat MRF 012 is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.
Technical Data
Switch difference*4% RH (± 3% tolerance)
Permissible air velocity15m/sec
Contact typechange-over contact
Contact resistance< 10mOhm
Service life> 100 000 cycles
Min. Switching capacity20V AC/DC 100 mA
Max. Switching capacity250 VAC, 5 (1) A

DC 20W
Connection3-pole terminal for 2.5mm? 2; , clamping torque 0.5Nm max.: Rigid wire 2.5mm? 2; , stranded wire (with wire end ferrule) 1.5mm? 2;
Mountingclip for 35mm DIN rail, EN60715
Casingplastic according to UL94 V-0, light grey
Dimensions67 x 50 x 38mm
Weightapprox. 60g
Fitting positionvariable
Operarting/Storage temperature0 to +60° C (+32 to +140° F) / -20 to +80° C (-4 to +176° F)
Protection typeIP20
ApprovalsVDE and UL submitted
*at 50% RH
Art. No. Setting range
01220.0-0035 to 95% RH

Switch difference*	4% RH (3% tolerance)
Permissible air velocity	15m/sec
Contact type	change-over contact
Contact resistance	< 10mOhm
Service life	> 100 000 cycles
Min. switching capacity	20V AC/DC 100 mA
Max. switching capacity	250 VAC, 5 (1) A
	DC 20W
Connection	3-pole terminal for 2.5mm, clamping torque 0.5Nm max.: rigid wire 2.5mm, stranded wire (with wire end ferrule) 1.5mm
Mounting	clip for 35mm DIN rail, EN60715
Casing	plastic according to UL94 V-0, light grey
Dimensions	67 x 50 x 38mm
Weight	approx. 60g
Fitting position	variable
Operarting/Storage temperature	0 to +60C (+32 to +140F) / -20 to +80C (-4 to +176F)
Protection type	IP20
Approvals	VDE and UL submittedat 50% RH
