Micc N Type Mi-Cable with Nicrobel Sheath Material

Name: Micc N Type Mi-Cable with Nicrobel Sheath Material
Brand: all-electronics-online.com
SKU: 754215445
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 6/Meter
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Meter
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	N type Nicrobell mi cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Core Number:	2, 4, 6
Dia(Mm):	From 0.25mm to 12.7mm
MOQ:	10m
Sample:	Available
Type:	Insulated
Certification:	CCC
Conductor Type:	Solid
Application:	Temperature Sensor
Brand:	Micc
Sheath Material:	Ss310 Ss316 Ss321 Inconel600 Nicrobell
Insulation Material:	Insulation Material: 99.6% High Purity MGO

Product Description

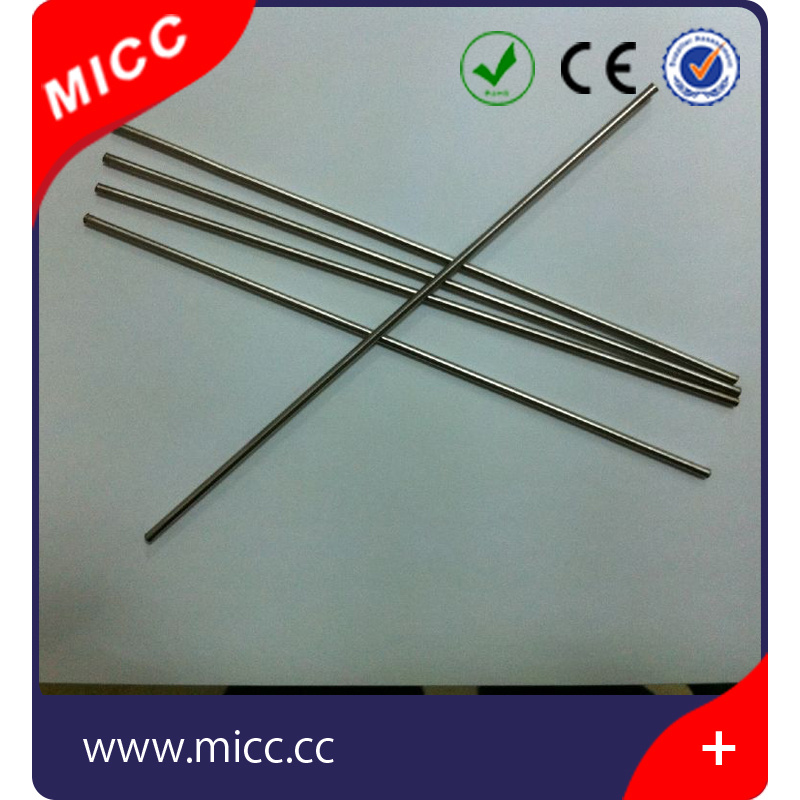

MICC N type mi-cable with Nicrobel sheath material

Name: Thermocouple mineral insulated cable
Type: K, N, E, J, T
Conductor material: NiCr-NiSi, NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600, Nicrobell
Dia(mm): From 0.25mm to 12.7mm
Application: Connecting with thermocouple and instrument machine
Place of Origin: Jiangsu, China (Mainland)
Eco-friendly: Yes
MOQ: 100m
Certificate: ISO, CQC
Making sample time: All type in stock
Trade term: FOB, EXW, CIF, CFR
Advantage: Competitive price and best service

Name	Type	Class of Accuracy
		I		II		III
		Tolerance	Temperature	Tolerance	Temperature	Tolerance	Temperature
Ni Cr - Ni Si	K	1.5C or 0.4%t	-40~1000	2.5C or 0.75%t	-40~1000	2.5C or 0.75%t	-200~40
Ni Cr Si- Ni Si	N		-40~1000		-40~1000		-200~40
Ni Cr - Konstantan	E		-40~800		-40~800		-200~40
Fe - Konatantan	J		-40~750		-40~750		---
Cu - Konstantan	T	1.5C or 0.4%t	-40~350	1C or 0.75%t	-40~350	1C or 0.75%t	-200~40
Pt Rh 10 - Pt	S	1C or 1+(t-1100)x0.003	0~1600	1.5C or 0.25%t	0~1600	---	---
Pt Rh 13 - Pt	R	1C or 1+(t-1100)x0.003	0~1600		0~1600	---	---
Pt Rh 13 - Pt Rh 6	B	---	---		600~1700	4C or 1.5%t	600~1700

Product Name	Code	Type	Sheath material	Outer dia.(mm)	Temperature
Ni Cr - Ni Si	KK	K	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
Ni Cr Si - Ni Si	NK	N	SS304	0.5-1.0	400
			SS321	1.5-3.2	600
			SS316	4.0-8.0	800
				0.5-1.0	500
			SS310	1.5-3.2	800
			INCL600	4.0-6.4	900
				8.0-12.7	1000
Ni Cr -Konstantan	EK	E	SS304	0.5-1.0	400
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Fe - Konstantan	JK	J	SS304	1.0	300
			SS321	1.5-3.2	500
			SS316	4.0-8.0	800
Cu - Konstantan	TK	T	SS304	1.0	-200-100
			SS321	1.5-3.2	100-200
			SS316	4.0-8.0	100-350

Name	Type	Class of Accuracy
		I		II		III
		Tolerance	Temperature	Tolerance	Temperature	Tolerance	Temperature
Ni Cr - Ni Si	K	1.5C or 0.4%t	-40~1000	2.5C or 0.75%t	-40~1000	2.5Cor 0.75%t	-200~40
Ni Cr Si- Ni Si	N		-40~1000		-40~1000		-200~40
Ni Cr - Konstantan	E		-40~800		-40~800		-200~40
Fe - Konatantan	J		-40~750		-40~750		---
Cu - Konstantan	T	1.5C or 0.4%t	-40~350	1C or 0.75%t	-40~350	1C or 0.75%t	-200~40
Pt Rh 10 - Pt	S	1C or 1+(t-1100)x0.003	0~1600	1.5C or 0.25%t	0~1600	---	---
Pt Rh 13 - Pt	R	1C or 1+(t-1100)x0.003	0~1600		0~1600	---	---
Pt Rh 13 - Pt Rh 6	B	---	---		600~1700	4C or 1.5%t	600~1700

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
