Mine Explosion-Proof Dry Type Transformer (KBSG)

Mine Explosion-Proof Dry Type Transformer (KBSG)
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: KBSG
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage (V): 1140V, 660V
Rated Current (a): 400, 315, 200

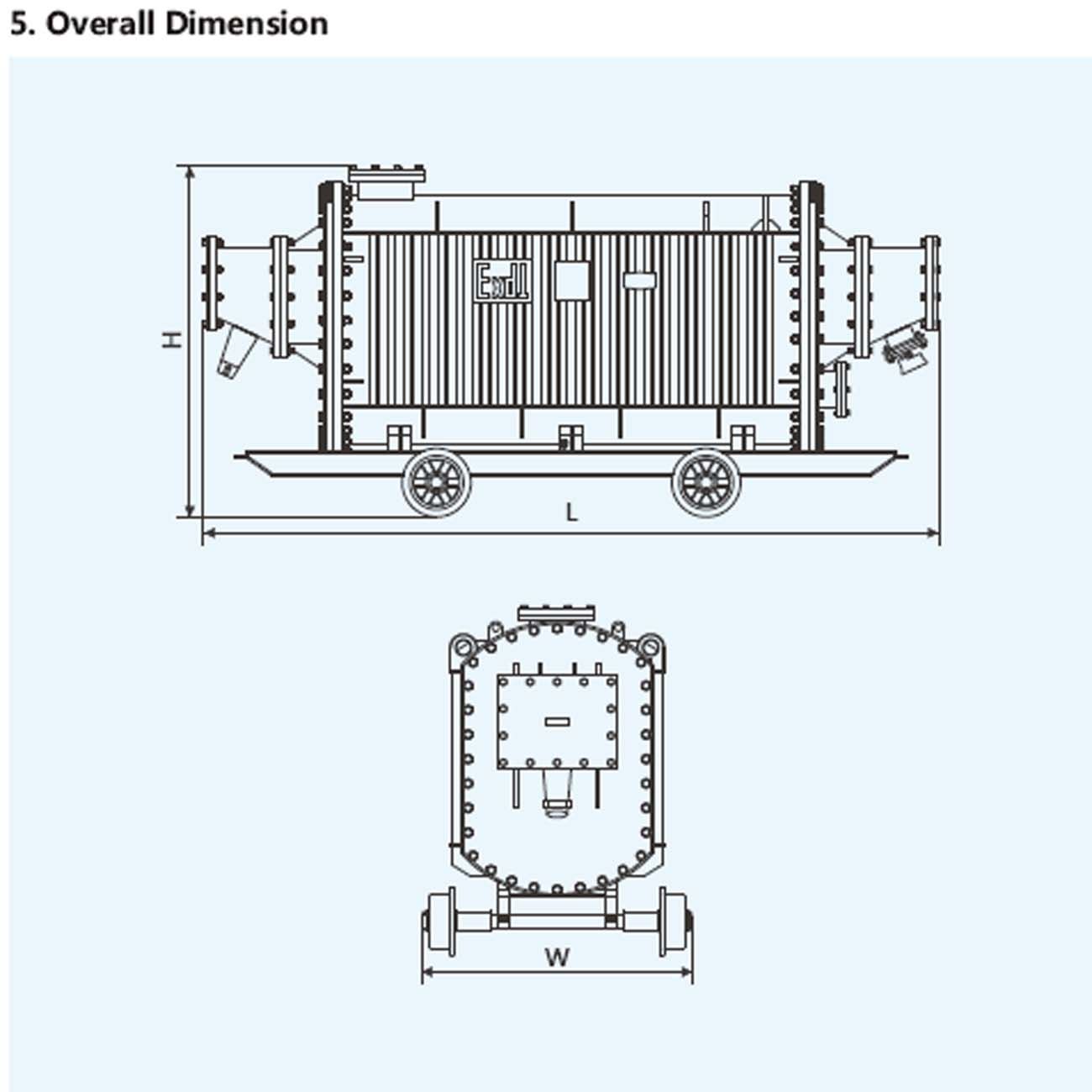

Outline Dimension (Mm): 2300X595X800
Weight (Kg): 1400
Max Power (Kw): 590/340,450/270,290/170
Phase: Single
Coil: Amorphous Alloy Transformer
Cooling Method: Dry-type Transformer
Winding Type: Separated Winding Transformer
Application: Audio

Product Description

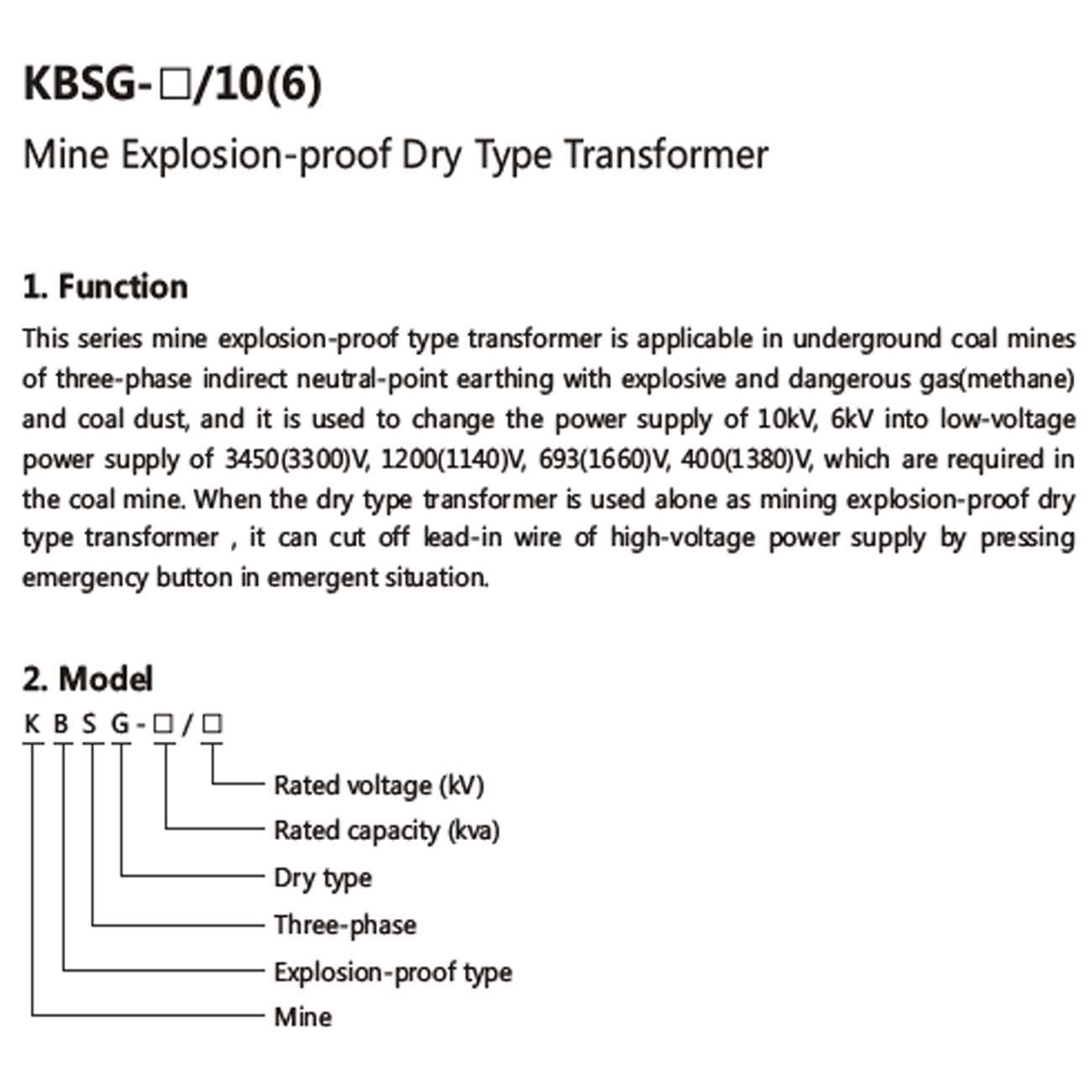

1. Function

This series mine explosion-proof type transformer is applicable in underground coal mines
of three-phase indirect neutral-point earthing with explosive and dangerous gas(methane)
and coal dust, and it is used to change the power supply of 10kV, 6kV into low-voltage
power supply of 3450(3300)V, 1200(1140)V, 693(1660)V, 400(1380)V, which are required in
the coal mine. When the dry type transformer is used alone as mining explosion-proof dry
type transformer , it can cut off lead-in wire of high-voltage power supply by pressing
emergency button in emergent situation.

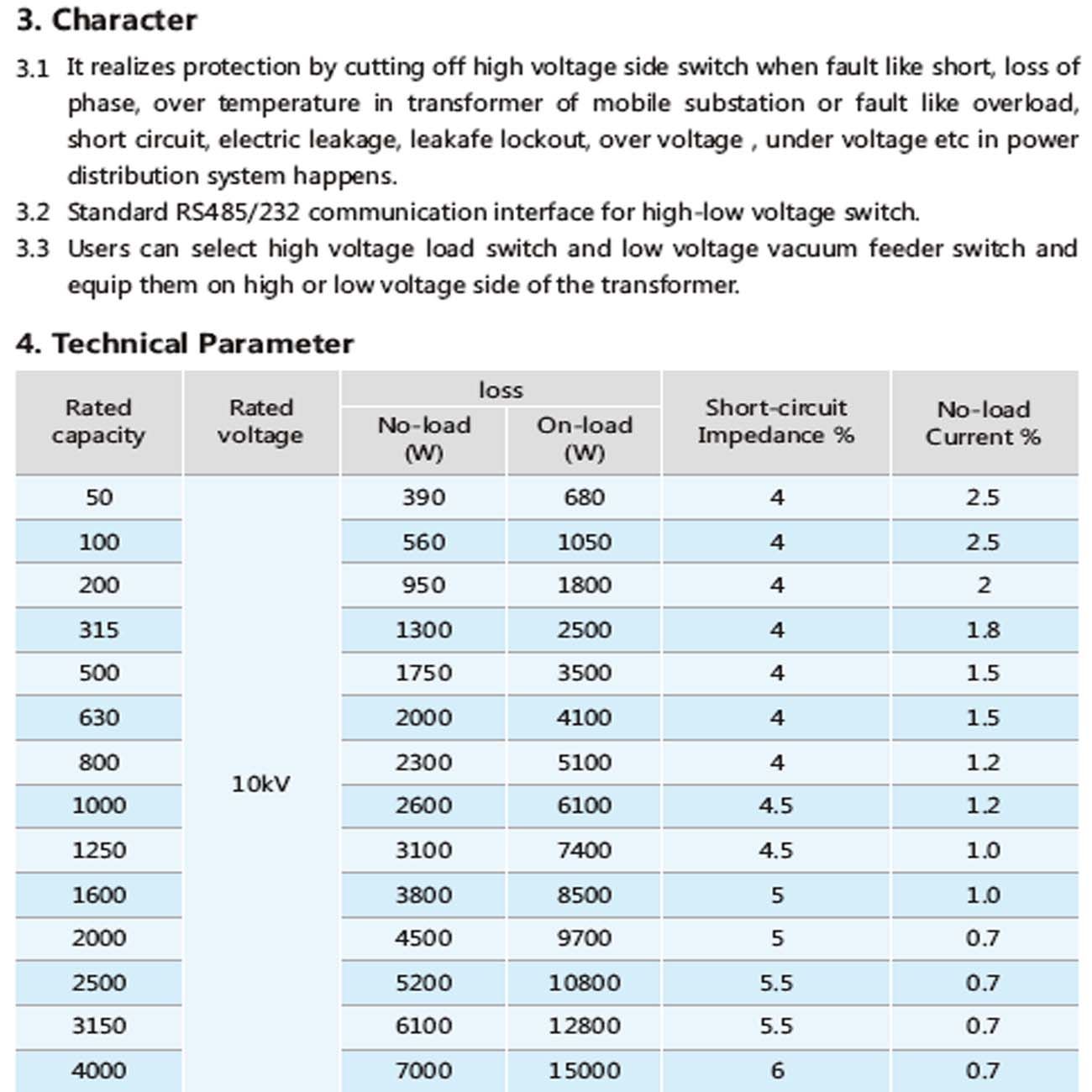

2. Characteristics

2.1 It realizes protection by cutting off high voltage side switch when fault like short, loss of
phase, over temperature in transformer of mobile substation or fault like overload,
short circuit, electric leakage, leakafe lockout, over voltage , under voltage etc in power
distribution system happens.
2.2 Standard RS485/232 communication interface for high-low voltage switch.
2.3 Users can select high voltage load switch and low voltage vacuum feeder switch and
equip them on high or low voltage side of the transformer.
