Mini Circuit Breaker with 3 Years Warranty

Name: Mini Circuit Breaker with 3 Years Warranty
Brand: all-electronics-online.com
SKU: 827169655
Availability: InStock
Rating: 4.3 (93 reviews)

Price:	US $ 1.16/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDSB3
Colour:	Grey
Primary Current:	5A~5000A
Class:	0.5/1.0
Frequency:	50/60Hz
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE

Product Description

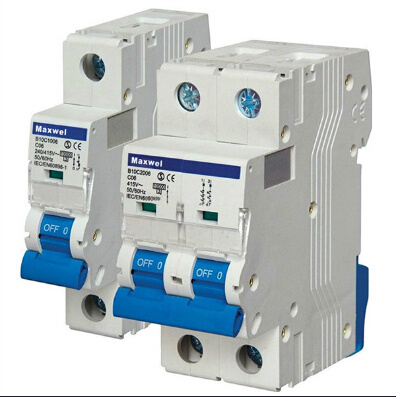

Protector Mini Circuit Breaker
Application
CDSB1 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system.The produuct is novel in structure.light in weight,reliable and excellent in performance.It's case and items are adopted with high fire-resistant and shockroof plastics.The product,with long life,is mainly used in AC 50HZ/60HZ single as well as for in frequent on and off switching electric equipment and lighting circuit in normal case.This product omly with GB10963,IEC898,BS3871.
Specification:

Rated temperature 40ºC

Rated voltage 240v/415v AC

Rated current(C):1,2,4,6,10,15,16,20,25,32,40,50,60,63A

Eleric endurance not lower than 6000times

Mechaical endurance lower then 20000 times

Tropical tecs:2 kinds

Weight(g)	1P	2P	3P	4P
Weight(g)	102	208	308	408

Standard	Rated current(A)	Pole	Voltage	Breaking capacity(A)
BS3871-1 IEC898	1 to 40	1	240	4000
BS3871-1 IEC898	1 to 40	2,3,4	415	4000
IEC157-1	1to40	1	220/240	6000
		2,3,4	220/240	12000
		2,3,4	380/415	6000

Product Details:

With 3 years Warranty
Website:www.maxwel.com

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
