Mini Circuit Breaker with Glasses (CEBG)

Name: Mini Circuit Breaker with Glasses (CEBG)
Brand: all-electronics-online.com
SKU: 615749814
Availability: InStock
Rating: 4.3 (120 reviews)

Price:	US $ 1.1/Piece
Trade Terms:	FOB
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CEBG MCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Current:	0.5-63A
Rated Voltage:	AC 230(240)/400(415),DC Max.60V
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	1
Certification:	CCC
Structure:	Conventional Circuit Breaker

Product Description

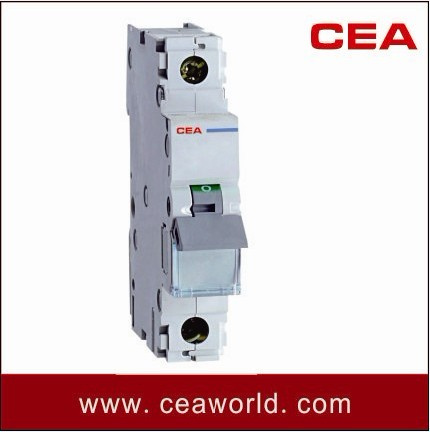

MCB, CEBG Mini Circuit Breaker

CEBG miniature circuit breaker is mainly suitable for overload and short circuit protection. It is especially used for illumination and distribution in industry and commerce. It is of pleasing outlook & high breaking capacity etc. Its frame and parts adopt plastics of reliable performance, high inflammable resistance and shock resistance for long service life. It is mainly used for overload and short circuit protection within the circuit of AC 50/60Hz, rated voltage of single pole up to 230V, two, three or four poles up to 400V. It can also be for an unfrequent switchover of the circuit and illumination under normal conditions.

1. Product Net weight: 130g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton.
3. N. W: 31KG/carton
4. G. W: 33KG/carton
5. Packing size: 40.5*18*23cm

Pole No.	1.2.3.4
Rated Voltage (un)	230(240)/400(415)VAC, max. 60V DC
Rated Current (in)	0.5-63A
Rated Frequency	50Hz
Rated Breaking Capacity	6KA
Energy Limiting Class	3
Tripping Characteristic	B C D
Cross-section of Connecting Lead	1-25mm
Isolating Class	B
Mounting on the Rail	EN 50022
Build-in Width	18mm/pole
Standard	IEC 60898 EN60898
