| Power: |
72W |
| CCT: |
Ww/ Wh/ R/ G/B/Y/RGB/RGBW Ect Available |
| Lead Time: |
3 Working Days |
| Warranty: |
3years |
| Application: |
Building |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
<50m |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Voltage: |
12V-24V |
Product Description

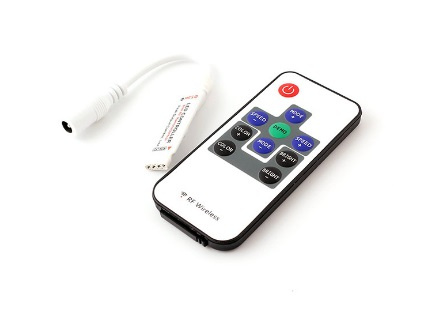

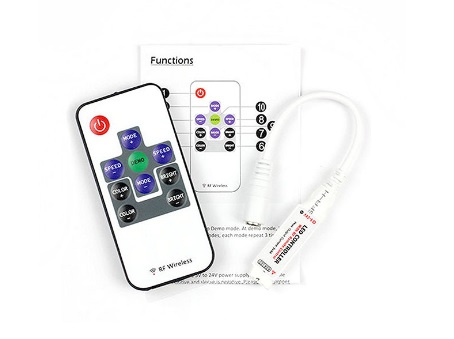

Mini Wireless RF Remote SD 256G Card Controller for RGB strips
Product Description This RF Mini RGB controller adopted the advanced computer control chip. Controlled by 433Mhz wireless remote.Its mainly used to controlled all kinds of constant voltage led lights,such as:LED source, LED strips,led wall washer,wall Glass curtain lights,etc.It integrated with low cost,easy connection,simple manipulation and others advantages.User can choose the mode of fade, strobe,Blasting flash,flicker,and other Static color model. What's more, this controller have the characteristics of small volume, easy to carry,etc, its popular amount the many markets.
| Input voltage | DC5-24V |
| Output | 3 circuit |
| Connection mode | Common anode |
| controller size | L40.0×W12.0×H5mm |
| controller size | L85.9×W39.6×H6.9mm |
| RF frequency | 433.92Mhz |
| Net weight | 35g |
| Gross weight | 40g |
| Static power consumption | <0.5W |
| Output current | <2A*3CH(each circuit) |
| Output power | 5V:<30W, 12V:<72W |
| Working temperature | -20-60ºC |
Dynamic modes:
Dynamic model | NO. | Mode | NO. | Mode | NO. | Mode |
| 1 | 7 color fade | 8 | Purple fade in and fade out | 15 | Blue blasting flash |
| 2 | 3 color fade in and fade out | 9 | Blue fade in and fade out | 16 | Purple blasting flash |
| 3 | 7 color fade in and fade out | 10 | 3 Color Jump | 17 | Yellow blasting flash |
| 4 | White fade in and fade out | 11 | 6 color Jump | 18 | White blasting flash |
| 5 | Green fade in and fade out | 12 | 3 color flash | 19 | 3 color blasting flash |
| 6 | Yellow fade in and fade out | 13 | Red blasting flash | | |
| 7 | Red fade in and fade out
| 14 | Green blasting flash | |
Static mode | NO. | Mode | NO. | Mode | NO. | Mode |
| 1 | Red | 8 | Milk-white | 15 | Blue-purple |
| 2 | Green | 9 | Dark yellow | 16 | Yellow-white |
| 3 | Blue | 10 | Sky blue | 17 | yellow |
| 4 | White | 11 | Brown | 18 | cyan |
| 5 | Orange | 12 | Pink-white | 19 | purple |
| 6 | Light green | 13 | Light-yellow | 20 | Blue-white |
| 7 | Dark blue | 14 | Light blue |
