Mjpt Pre Insulated Sleeve for Aluminum Cable Tension Terminal

Name: Mjpt Pre Insulated Sleeve for Aluminum Cable Tension Terminal
Brand: all-electronics-online.com
SKU: 840397085
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 0.5-1/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MJPT
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Aluminium
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Mjpt Cable Connector
Name:	Mjpt Cable Connector
Special:	High Quality
Certificate:	ISO9001
Samples:	Available

Product Description

Product Description

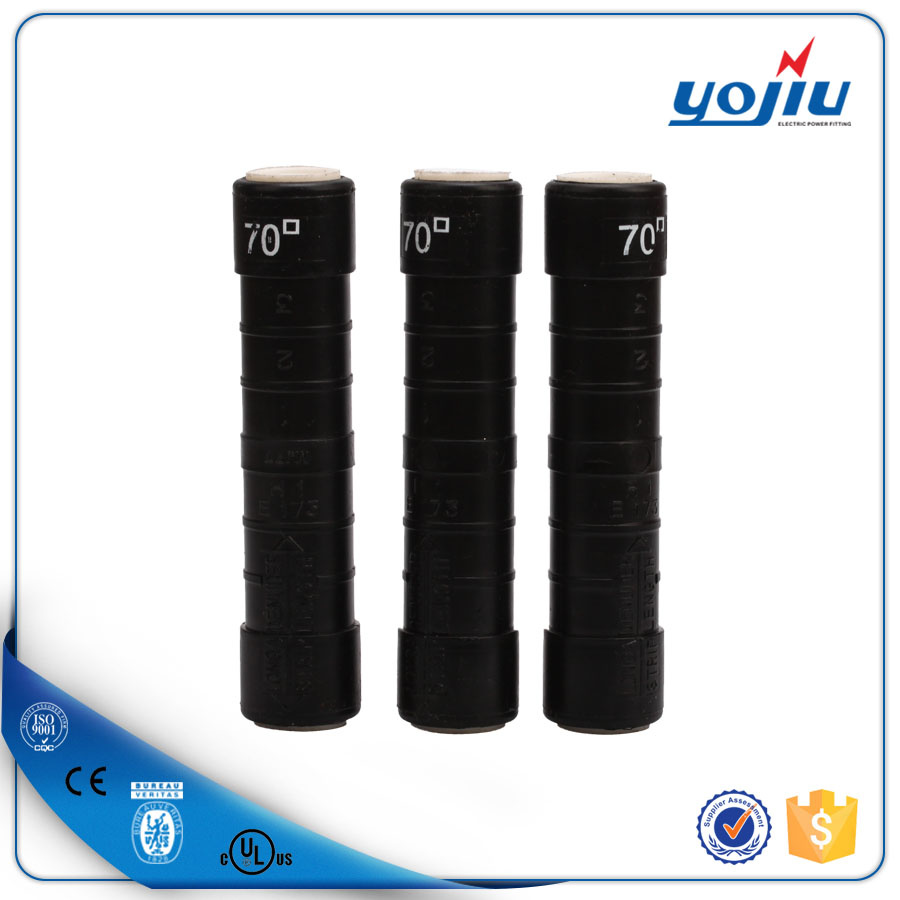

Pre-Insulated Sleeves MJPT and MJPB

This pre -insulated sleeves is composed of an aluminium sleeve with a stop in the middle. A black thermoplastic sealed with a flexible elastomer ring. A neutral contact grease in the tube which improve the contact area and protect the aluminium against oxidation.The crimping is realized on the plastic part according to the marks on the body of the sleeve.

This sleeve withstand the tests described in the French standard NFC33021. They are water resistant. The mechanical resistance is 50% of the cable breaking load.

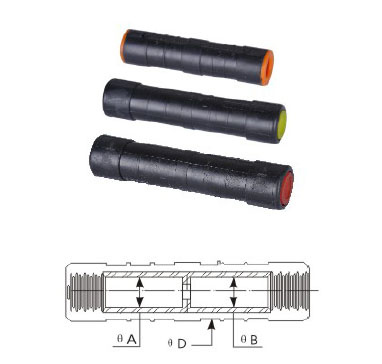

Dimension

Designation	Cross section(mm2)	Dimensions
Designation	Main	ΦA	ΦB	ΦD
Sleeves for Insulated
MJPT16	16	5.5	5.5	20
MJPT25	25	6.5	6.5	20
MJPT35	35	8	8	20
MJPT35-25	35-25	8	6.5	-
MJPT50	50	9	9	20
MJPT50-35	50-35	9	9	20
MJPT70	70	10.5	10.5	20
MJPT70-35	70-35	10.5	8	20
MJPT70-50	70-50	10.5	9	20
MJPT80	-	-	-	-
MJPT95	95	12.2	12.2	20
MJPT95-35	95-35	12.2	8	20
MJPT95-50	95-50	12.2	9	20
MJPT120D25	120	14.2	14.2	25
MJPT150	150	15.5	15.5	25
MJPT150-70	150-70	15.5	10.5	25
MJPT150-95D25	150-95	-	-	-
MJPT150-120D25	150-120	-	-	-
Sleeves for Insulated
MJPT54	54.6	10	10	20
MJPT70N	70N	10.5	10.5	20
MJPT70N-54	70N-54.6	10.5	10	20
MJPT80N	80	-	-	-
Sleeves for Insulated

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
