Model Bnd- 902 50kg Mini/ Micro Load Cell for Body Scale

Name: Model Bnd- 902 50kg Mini/ Micro Load Cell for Body Scale
Brand: all-electronics-online.com
SKU: 805492885
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	US $ 2-10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-902
Zero Output:	0.5mv/V
Rate Output:	0.15mv/V
Non-Linearity:	0.2%F.S.
Hysteresis:	0.2%F.S.
Repeatability:	0.1%F.S.
Creep:	0.1%F.S.(3min)
Operation Temperature Range:	-10 ~ +60
Four Corner Error:	0.1%F.S.
Input/Output Impedance:	1000
Excitation:	3~10V
Material:	Alloy Aluminum
Pattern:	Mini Load Cell

Product Description

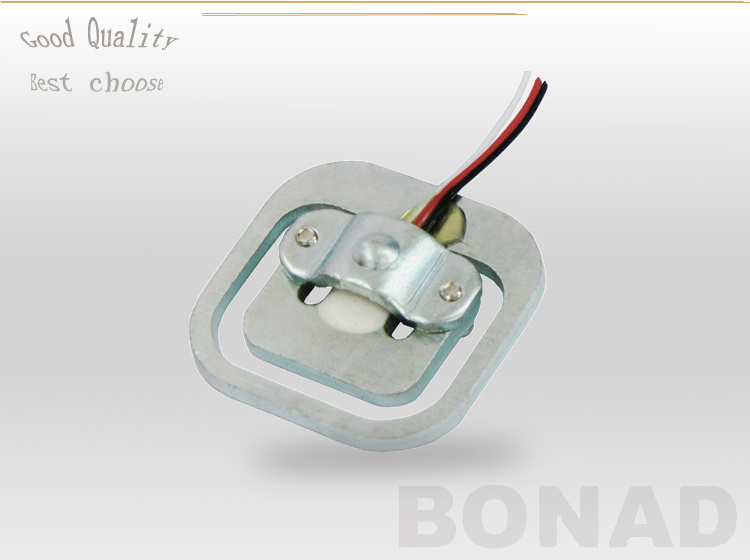

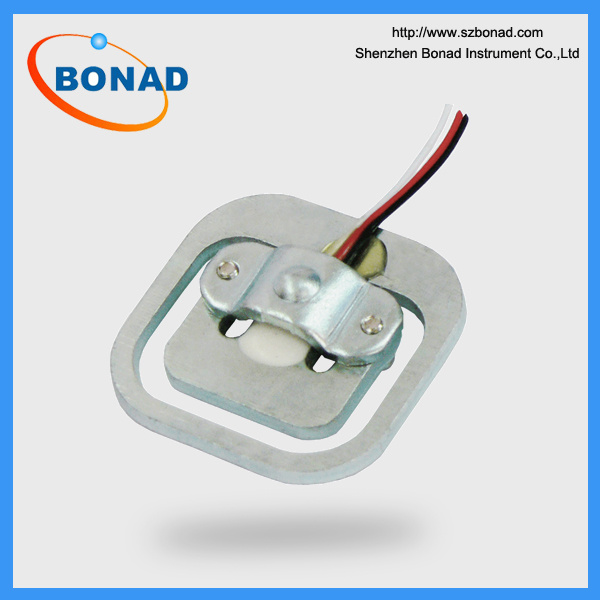

Model BND- 902 50kg mini/ micro load cell for body scale
Capacity : 10 KG -50KG
Applications:Our micro-load cells can be applied in body scales, hand scales, kitchen scales, postal scales, fishing scales, baby body scales and other micro electronic weighing systems.

Parameters:

Model Number	BND-902
Material	alloy aluminum
Capacity	10-50KG
Zero output	±0.5mV/V
Rate output	±0.15mV/V
Non-Linearity	0.2%F.S.
Hysteresis	0.2%F.S.
Repeatability	0.1%F.S.
Creep	0.1%F.S.(3min)
Operation Temperature Range	-10 ~ +60°C
Four corner error	0.1%F.S.
Temperature effect on zero	0.3 % F.S. / 10°C
Input/Output Impedance	1000 ±10Ω
Temperature effect on sensitivity	0.1 % F.S. / 10°C
Insulation	≥2000MΩ
Excitation	3~10V
Ultimate Overload	150 % F.S.
Overall accuracy	0.3 % F.S.

Pictures

Packaging & Delivery
Packaging: Carton Box
Delivery:Shipped in 3~15 days after payment

FAQ
1.What's your MOQ?

MOQ for most of our products is 1 unit. If you purchase more products, you will get a better price accordingly.

2.Do you have an OEM/OED service?

Yes! Please contact us for details.

3.What's the lead time?

It depends on the product and the qty.

If it is in stock, 3~7 days will be taken. Normally, 1~2 weeks for most products. 4~7 or more weeks will be needed for complex ones.

Please contact us to confirm.

4.What's the payment term?

T/T, Western Union, Money gram ,PayPal ,etc .

5.What's the shipping way?

Via air , sea or express like DHL, UPC, TNT, FedEx and so on.

6.What's your after-sales service policy?

One year warranty and life long tech support.
