Model Bnd-Czl110 Load Cell/Load Indicator for Industrial Applications Truck Scale

Name: Model Bnd-Czl110 Load Cell/Load Indicator for Industrial Applications Truck Scale
Brand: all-electronics-online.com
SKU: 805390605
Availability: InStock
Rating: 4.9 (123 reviews)

Price:	US $ 50-250/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CZL110
Status:	in Stock
Precison:	C2 & C3
Comprehensive Error(%F.S):	0.03
Rated Output(Mv/V):	3.0
Creep(%F.S/30min):	0.024
Zero Balance(%F.S):	1.0
Input Resistance(Ω):	350
Output Resistance(Ω):	350
Insulation Resistance(MΩ):	5000(100VDC)
Use Temp Range:	-20~+55
Material:	Alloy Steel

Product Description

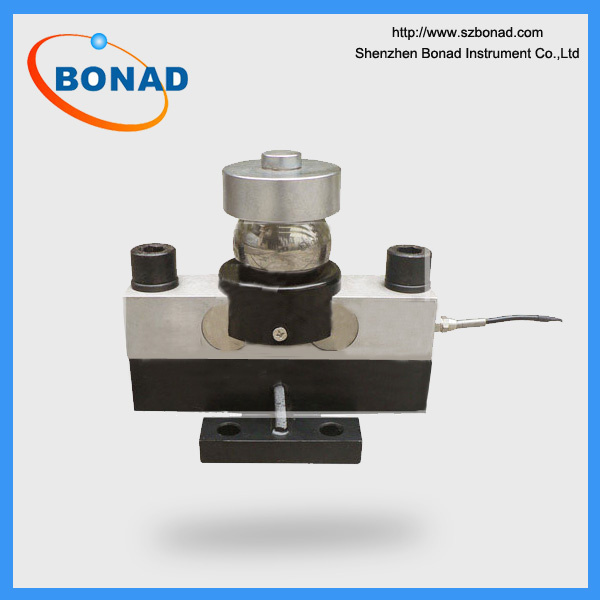

Model BND-CZL110 Load Cell/Load indicator for Industrial Applications truck scale
Rated load:10000kg / 20000kg / 25000kg / 30000kg
Features: Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion, suitable for multiform environments; suitable for electronic platform scales, hopper scales, and other electronic weighing devices.
Application: Industrial Applications.

Parameters:

Model Number	BND-CZL110
Material	Alloy steel
Precison	C2 & C3
Comprehensive error(%F.S)	±0.03 & ±0.02
Rated output(mv/v)	3.0±0.003
Creep(%F.S/30min)	±0.024 & ±0.016
Zero balance(%F.S)	±1.0
Input resistance(Ω)	350±5
Output resistance(Ω)	350±3
Insulation resistance(MΩ)	≥5000(100VDC)
Temp. effect on span(%F.S/10ºC)	±0.017& ±0.011
Temp. effect on zero(%F.S/10ºC)	±0.023 & ±0.015
Compensated temp. range(ºC )	-10~+40
Use temp range(ºC )	-20~+55
Excitation voltage(V)	9~12(DC)
Safe overload (%F.S)	150
Ultimate overload (%F.S)	200
Defend grade	IP66

Wiring schematic diagram:

Color	Type
Red	Input ( + )
White	Output ( - )
Black	Input ( - )
Green	Output ( + )
Notes: It used 6-core shielded cable(φ6.2×16000mm).

Packaging & Delivery
Packaging: Carton Box
Delivery:Shipped in 3~15 days after payment
