Model Bnd- Ds110e Heavy Duty Design Canister Style Load Cells

Name: Model Bnd- Ds110e Heavy Duty Design Canister Style Load Cells
Brand: all-electronics-online.com
SKU: 805496995
Availability: InStock
Rating: 4.3 (136 reviews)

Price:	US $ 15-45/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND- DS110E
Precison :	C3
Excitation Voltage(V) :	5.5~12(DC)
Comprehensive Error(%F.S):	0.02
Rated Output(Mv/V):	1,000,000 Counts
Creep(%F.S/30min):	0.02
Compensated Temp. Range:	-10~+40
Use Temp. Range:	-20~+60
Safe Overload (%F.S):	120
Ultimate Overload (%F.S):	150
Material:	Alloy Steel

Product Description

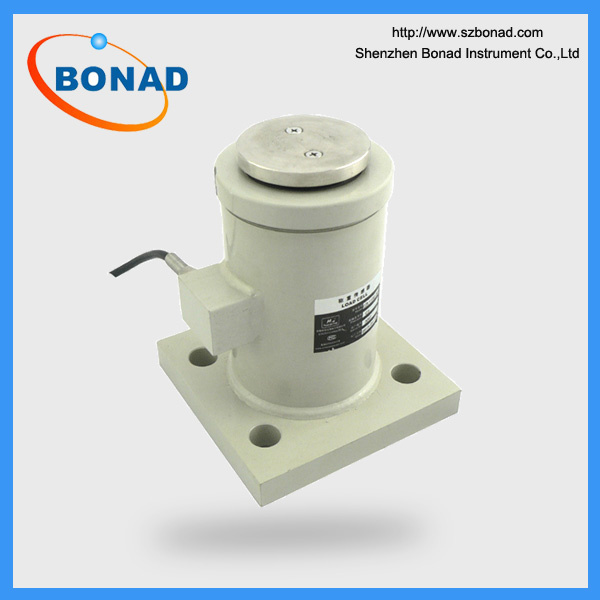

Model BND- DS110E Heavy Duty Design Canister Style Load Cells
Rated Load :10/ 20/ 30/ 40/50 (Ton)
Features:Alloy steel & stainless structure; bellows hermetically sealed by laser, nickel plated, waterproof and anti-corrosion.
Application: Widely used in industrial process for control force, batching control systems and testing equipment, and other equipment weighing force measurement.

Parameters:

•Precison : C3		•Excitation voltage(V) : 5.5~12(DC)
•Comprehensive error(%F.S) : ±0.02		•A/D module resolution(Code): 1,000,000
•Rated output(mv/v) : 1,000,000 counts		•Communication BP(BPS) : -10~+40
•Creep(%F.S/30min) : ±0.02		•Communication port : RS 485 / 4 cable
•Temp. effect on span(%F.S/10ºC): ±0.017& ±0.011		•Digital refurbishing frequency(s) : 10~80
•Temp. effect on zero(%F.S/10ºC): ±0.023 & ±0.015		•Safe overload (%F.S) : 120
•Compensated temp. range(ºC ) : -10~+40		•Ultimate overload (%F.S) : 150
•Use temp. range(ºC ) : -20~+60		•Defend grade : IP67

Packaging & Delivery
Packaging: Carton Box
Delivery:Shipped in 3~15 days after payment
