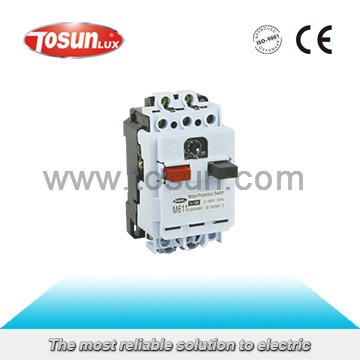

| Prod Model: |
M611 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current (a): |
0.16 to 20 |
| Rated Fixed Current (a): |
0.1 to 63 |
| Dimensions: |
111X60X75mm |
| Installation Method: |
by Screw or DIN Rail Mounting |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Insert |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
CCC |
Product Description
Application
· This product is suitable for using in circuit up to AC 660V or 440V and current 0.1 to 63A.
· It can be used for protection of overload and short circuit of 3-phase squirrel-cage motors, and starters of motors as well at full voltage.
· It is suitable to protect the motor with under voltage trip.
· It can also be used in operating AC single phase load and DC load.
· It can monitor the fuse of switch disconnector to act as protection of phase failure.
· This product includes basic type switch and 26 accessories with purposes of expanding usage.
· Rated Curret(A): 0.16, 0.25, 0.40, 0.63, 1.0, 1.6, 2.5, 4.0, 6.3, 10, 16, 20, 25, 32, 40, 63
· Poles No.:2, 3
· It complies with IEC60947-2.
Specification
| Rated Current(A) | 0.16 | 0.25 | 0.40 | 0.63 | 1.0 | 1.6 |
| Rated Fixed Current(A) | 0.1~0.16 | 0.16~0.25 | 0.25~0.40 | 0.40~0.63 | 0.63~1.0 | 1.0~1.6 |
| Rated Current(A) | 2.5 | 4.0 | 6.3 | 10 | 16 | 20 |
| Rated Fixed Current(A) | 1.6~2.5 | 2.5~4.0 | 4.0~6.3 | 6.3~10 | 9.5~16 | 13~20 |
| Rated Current(A) | 25 | 32 | 40 | 63 |
| Rated Fixed Current(A) | 19~25 | 20~32 | 30~40 | 40~63 |
