Mounted Rack Mountable UPS Long Backup Time Pure Sine Wave Output
| Price: |
US $ 1-200/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
Rack Mount Star Series |
| External Battery Pack: |
Optional |
| Transfer Time: |
0ms |
| Thdi: |
<3% |
| Battery Management: |
Abm |
| Color: |
Black, Silver |
| Size: |
2u,3u,5u |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Over Load/Current/Voltage, Short Circuit etc |
| Application: |
Hospital, Bureau, Traffic, Public Security, ATM |
| Brand: |
Upsen or OEM |
Product Description

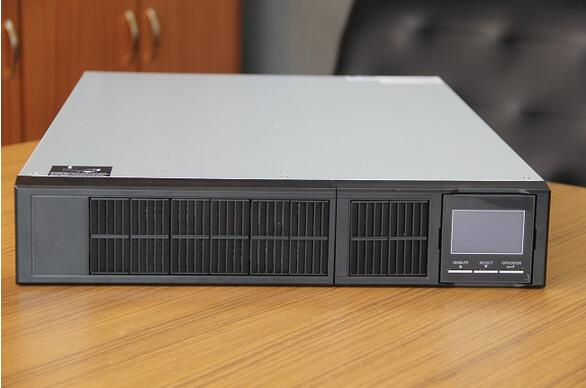

Mounted Rack Mountable UPS Long Backup Time Pure Sine Wave Output

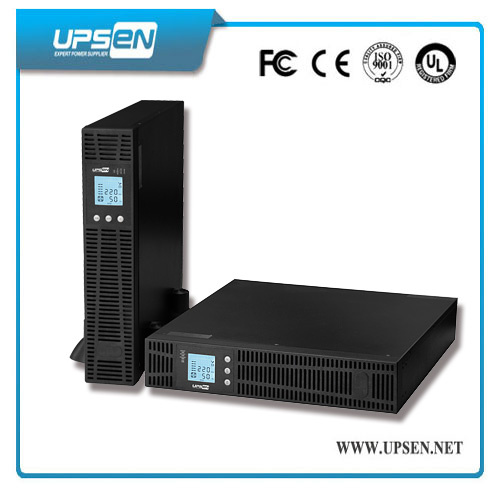

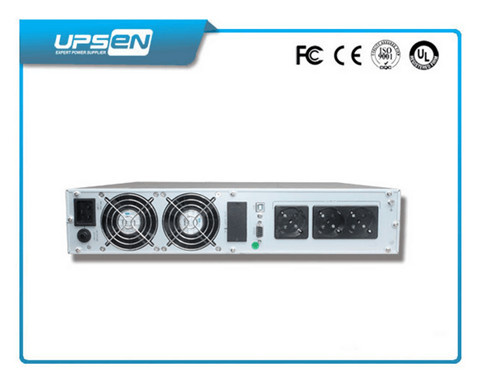

High Frequency Online UPS Rack Tower Star Series RT 1K-10KVA(1Ph in/1Ph out)
Key Features:
1: Programmable power management outlets
2: Automatic battery charging in UPS off mode
3: Microprocessor control guarantees high reliability
4: High frequency and dual conversion on-line technology
5: Provides line-interactive design and true sine wave output
6: Enable to extend runtime with scalable external battery pack
7: Environmental design, Better integration with the user environment
8: User-Replaceable hot swappable battery design & cold startup capability
9: Adopting high frequency full bridge topology for high steady performances
10: Lock output frequency at 50Hz or 60Hz to suit power sensitive equipments
11: Compact size and ergonomic design: it can be placed on a desk top or other convenient location
Applications
Alarm Systems,Marine Equipment,Packaging machines,Emergency Lighting Systems,Transmitter station, control room, medical instruments ,telecom,bank,hospital,Sensitive Electronic Equipment,public security, ATM etc.
Technical Specification
MODEL(RT Series) | RT1K | RT1KL | RT2K | RT2KL | RT3K | RT3KL | RT6KL | RT10KL |
| Input | Rated Capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W |
| Voltage | 90 ± 5 ~290 ± 5Vac | 176 ~ 276Vac |
| Current | 6A(max) | 12A(max) | 16A(max) | 31A(max) | 60A(max) |
| Frequency | 40 ~ 60 Hz |
| Power factor | Conformity EN60555-2(≥0.95) | ≥0.95(MAX) |
| Output | Voltage | 220Vac ( 1 ± 2%) | 220Vac ( 1 ± 1%) |
| Current | 4.55A | 9.1A | 13.6A | 27.3A | 54A |
| Frequency | (50 ± 2)Hz | (50 ± 1)Hz |
| Power Factor | 0.8 lag |
| Waveform | Sine Wave |
| Waveform | Linear ≤ 7% when RCD 100% loading (Non-line) |
| Distortion | Linear ≤ 3% when RCD 100% loading (line) |
| Overload protection | 105%< <125% → 50s | 100%-125%, 1 minutes to |
| 125%< <150% → 25s | transfer to bypass; >150%, |
| >150% → 300s | 100ms to transfer to bypass |
| Transfer Time | Oms |
| Type of Battery | Sealed lead acid maintenance-free |
| External Battery Voltage | 3x7 Ah | 36Vdc | 6x7 Ah | 72Vdc | 8x7 Ah | 96Vdc | 192Vdc/240Vdc |
| Working | Operating | 0-40ºC |
| Environment | Temperatures(ºC) |
| | Relative | 0-90(%) |
| | Temperature(ºC) |
| | Altitude | <1500m |
| Communication | 9pin D trpe comector (RS232) |
| Size (WXDXH) mm | 482x450x88 | Standard Type (3U): 482x680x132.5 | 482x680x132.5 |
| Long Backup Type (2U): 482x450x88 |
| Weight (kg) | 14.5 | 8 | 22 | 9.8 | 26 | 9.8 | 20 | 25
|

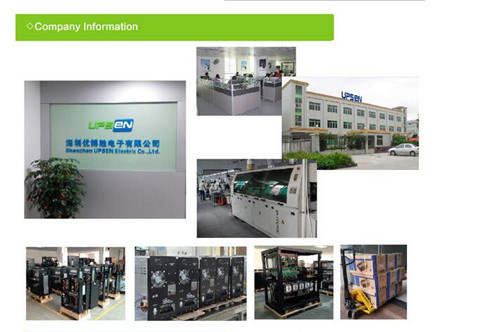

Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
