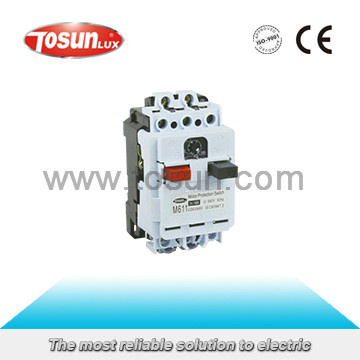

Name: MPCB Motor Protection Circuit Breaker
Brand: all-electronics-online.com
SKU: 754877685
Availability: InStock
Rating: 4.7 (114 reviews)

Price:	US $ 3-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	M611
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated:	0.16-32A
Length:	111mm
Width:	60mm
Height:	75mm
Enclosure:	as Per Request
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CE
Structure:	MPCB
Function:	Overload, Short-Circuit, Undervoltage

Product Description

APPLICATION

1. M611 Motor Protection Circuit Breaker is suitabel for using in circuit up to AC 660V or 440V and current 0.1 to 63A.

2. Be used for protection of overload and short circuit of 3-phase squirrel-cage motors, and starters of motors as well at full voltage.

3. Suitable to protect the motor with under voltage trip.

4. Be used in operating AC single phase load and DC load.

5. Monitor the fuse of switch disconnector to act as protection of phase failure.

6. Includes basic type switch and 26 accessories with purposes of expanding usage.

7. Complies with IEC60947-2.

SPECIFICATION

Rated Current(A)	0.16	0.25	0.40	0.63	1.0	1.6
Rated Fixed Current(A)	0.1-0.16	0.16-0.25	0.25-0.40	0.40-0.63	0.63-1.0	1.0-1.6

Rated Current(A)	2.5	4.0	6.3	10	16	20
Rated Fixed Current(A)	1.6-2.5	2.5-4.0	4.0-6.3	6.3-10	9.5-16	13-20

Rated Current(A)	25	32	40	63	-	-
Rated Fixed Current(A)	19-25	20-32	30-40	40-63	-	-
