Mt 500va-1000va Long Backup Offline UPS

Name: Mt 500va-1000va Long Backup Offline UPS
Brand: all-electronics-online.com
SKU: 839208165
Availability: InStock
Rating: 4.3 (89 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MT500VA-1000VA
Input:	110V or 220V +- 20%
Output:	110V or 220V+ - 10%
Wave Form:	Transfer Time Less Than 10ms
Output PF:	0.6
Phase:	Single Phase
Type:	Line Interactive
Protection:	Short Circuit
Classification:	UPS
Brand:	Greenmaster

Product Description

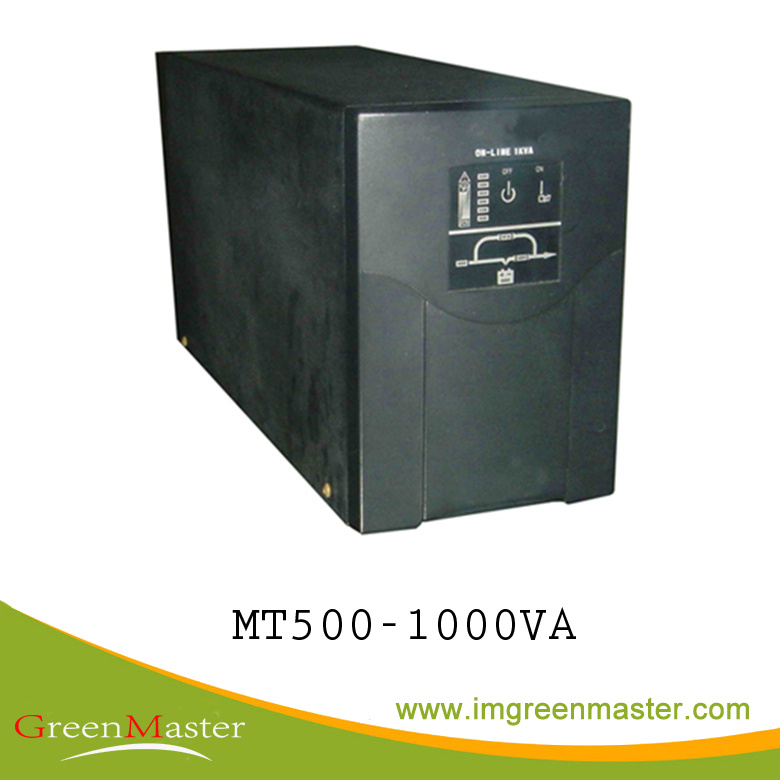

MT 500VA-1000VA Long backup offline UPS

* I/P: 165~265V±5V or 88 - 139V ,O/P:2220V or 110V ± 10%

* Wave Form:Modified sine wave

* Transfer Time:<10 ms

* DC Voltage: 500VA /12VDC,1000VA /24VDC

* Bat.:500VA /12V External,1000VA/24V External

Key features

1.Line-interactive UPS with super-long backup time

2.wide input range with AVR function

3.Protection for short circuit, overload and battery low voltage

4.LED indication and audible alarm function

5.Intelligent battery management

6.with cold start function

7.with AUTO restart function

8.Automatic battery charging while UPS off mode ( Option)

9.RJ11/RJ45 is option

Technical Specifications

ITEM	MODEL	MT 500S	MT 1000S
Capacity	Output power	500VA/300W	1000VA/600W
Input	Voltage range	165~265Vac±5V or 88 - 139Vac
	Frequency range	50 or 60 ± 2.5Hz
Output	Voltage (battery mode)	220V or 110V ± 10%
	Frequency (battery mode )	50 / 60HZ or ± 10%
	Transfer time	<10Ms
	Waveform	Modified sine wave (battery mode)
Battery	Type	Sealed lead acid, maintenance free
	DC voltage	12VDC	24VDC
	Battery number	12VDC External	24VDC External
	Standby time	Depended on battery capacity
	Recharge time	12VDC3.5AMP ,	24VDC 3.5AMP
Protecting	Output overload	Fuse & current limited when overloaded
	Battery low voltage	Automatically lock out the machine so as to protect the Battery from over discharging
	Short circuit	Fuse & current limited
	Restart	Auto restart when AC recovery.
Alarm	Battery back-up	Sounding every 4 seconds
	Battery low	Sounding every 1 second
	Overload	Shutdown at once
Indicator	LED	Line Mode, Battery Mode, Charging, battery capacity, Fault
PCS/ CTN		2PCS	2PCS
Carton size	LWH(mm) 2PCS	505485345/2PCS	505485345/2PCS
Carton Gross weight	Kg, 2PCS	17Kg	23Kg

Trade Show:

Certification:

We supply different kinds of LED light. High quality and favorable price. We're pleased to get your Inquiry and we will reply you ASAP. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

Green Master Electronics Co., Ltd.

Factory: No. 350, Laoxu Road, Cixi City, Zhejiang, China.

Ningbo office: HAORU BUILDING 505, NINGBO SOUTHERN CBD, TAIKANG ROAD 468#, NINGBO, China

Website: http://www.imgreenmaster.com

Connect Person: Mr. Tom. Li

Faxaphone: +86-574-88216630

Fax: 86-574-8813 8440

Zip Code: 315000
