| Prod Model: |
LED RGB controller LT-3900IR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
LED RGB Controller Lt-3900IR |
| Product Size: |
L211*W40*H30(mm) |
| Power Supply Chosen: |
CV LED Power Supply |
| Max. Load Current: |
6A * 3CH Max18A |
| Grey Scale: |
256 Steps Per RGB |
| Packing Size: |
L213*W61*H38(mm) |
| Weight(G.W): |
220g |
| Max. Load Power: |
90W/216W/432W(5V/12V/24V) |
| Remote Control Distance: |
10m |
| Funtion: |
8 Touching Button |
| Application: |
IR Remote Control |
| Signal Transmission: |
IR Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Material: |
Plastic |
| Battery Type: |
Button Battery |
| Transmission Distance: |
10m |
| Voltage: |
DC5V-24V |
Product Description

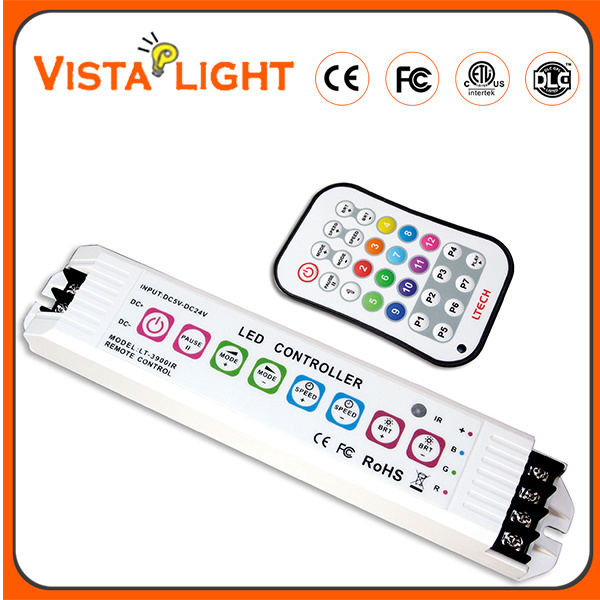

Multi-functional DC5V-24V IR remote control LED RGB Controller

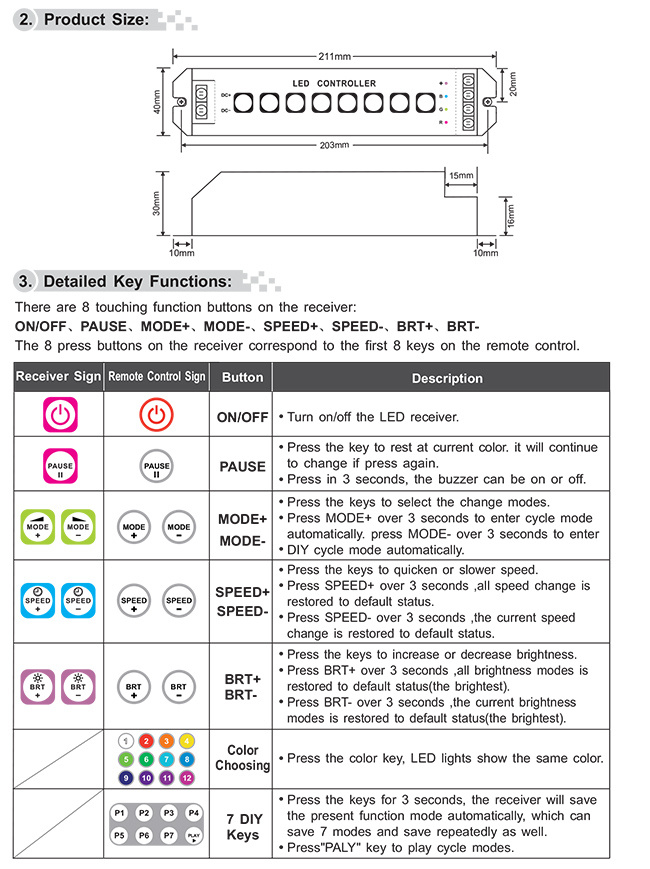

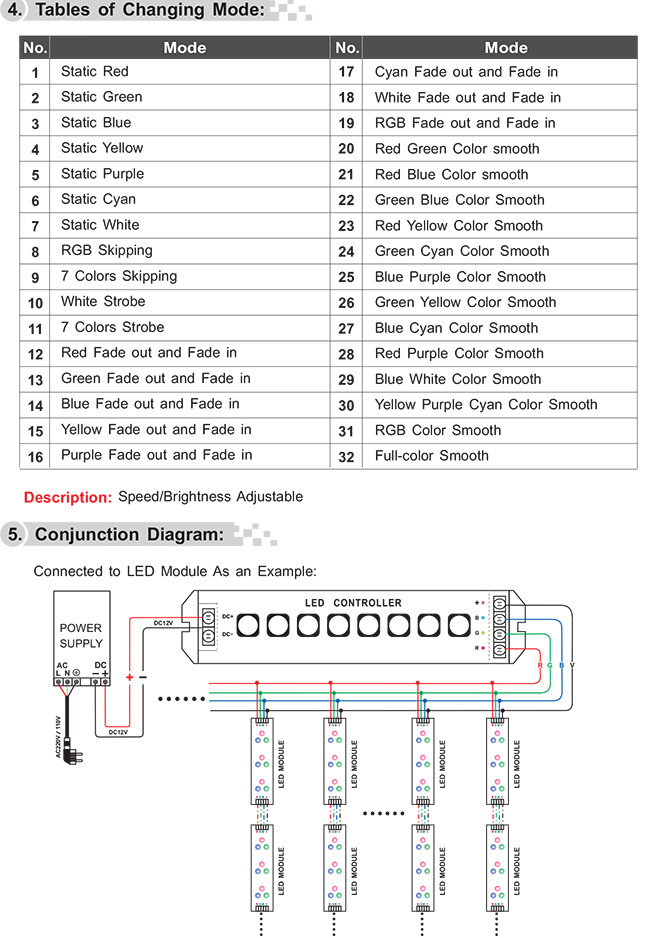

LT-3900IR is a multi-functional RGB controller, built-in 32 modes, adopts advanced PWM(Pluse-Width Modulation) control technique, smooth changing effect, without flicker. Adopting hi-power MOS driver, RGB 3 channels output and total current up to 18A; With unique touch technique,the receiver has 8 touch buttons, which are used for choosing ON/OFF, PAUSE, MODE+/-,SPEED+/-, BRT+/-, Also can use IR wireless remote for long-distance control, which has 12 preset color keys and 7 DIY keys, very user friendly. It can automatically adapt to DC5-24V input, suitable for most conventional RGB LED products, such as LED strips, LED modules,etc. and all low-power RGB LED lights whose current is limited by resistors can be controlled.
Technical Specs:| LED RGB Controller LT-3900IR |
| Power supply Chosen | CV LED power supply |
| Input voltage | DC5V-DC24V |
| Max. Load Current | 6A × 3CH Max18A |
| Max. Load Power | 90W/216W/432W(6V/12V/24V) |
| Grey Scale | 256 Steps per RGB |
| Remote control distance | 10m |
| Working Temperature | -30-55 |
| Dimension | L211×W40×H30mm |
| Package Size | L213×W61×H38mm |
| Weight (G.W) | 220g |
Product Details The Charging Methods for Remote Control1. When charging, please connect USB cable to the mobile charger or computer with the USB interface.
2. The downside white light of 3 in l white LED indicator flickers while charging, and the upside white indicator light is on, means the charging is finished. The remote control can be chargeable even at the OFF state, on which the indicator light is black.
3. No memory effect in the lithium battery of remote control. Follow the standard charging procedure, no need for overcharge for the first 3 times .
4. Indicator light flickers(the right side white indicator light is on) meaning low battery and need to be charged charging in low battery will affect life of battery.
5. The remote should be full charged and stored under low cold drying while a long time without being operated And please full recharge every 3 months. Product Attention1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please ensure it is mounted in a water proof.
3. Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
4. Please check if the output voltage of any LED power supplies used comply with the working voltage of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the.
6. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7. If a fault occurs please return the product to your supplier. Do not attempt to fix this product by yourself.
Product Warranty Agreement
1. We provide lifelong technical assistance with this product:
(1) A 5-year warranty is given from the date of purchase. The warranty is for free repair or replacement and covers manufacturing faults only.
(2) For faults beyond the 5-year warranty we reserve the right to charge for time and parts.
2. Warranty exclusions below:
(1) Any man-made damages caused from improper operation, or connecting to excess voltage and overloading.
(2) The product appears to have excessive physical damage.
(3) Damage due to natural disasters and force majeure.
(4) Warranty label, fragile label and unique barcode label have been damaged
(5) The product has been replaced by a brand new product.
3. Repair or replacement as provided under this warranty is the exclusive remedy to the customer. Ltech shall not be liable for any incidental or consequential damages for breach of any stipulation in this warranty.
4. Any amendment or adjustment to this warranty must be approved in writing by Ltech only.
Our companyWe are a professional manufacturer of various kinds of LED lighting products in Shenzhen China. Our current products lines range include: LED Flexible strip light, LED COB Down lights, LED moudle LED Panel lights and DIY products by customer etc. We could provide the most reliable light solution to client s' application. Our products are getting CE, RoHS, ETL DLC approval these days and all the light source chips are of brand in Epistar, Samsung, Edison, Nichia, Citizen, CREE and Luxeon etc.

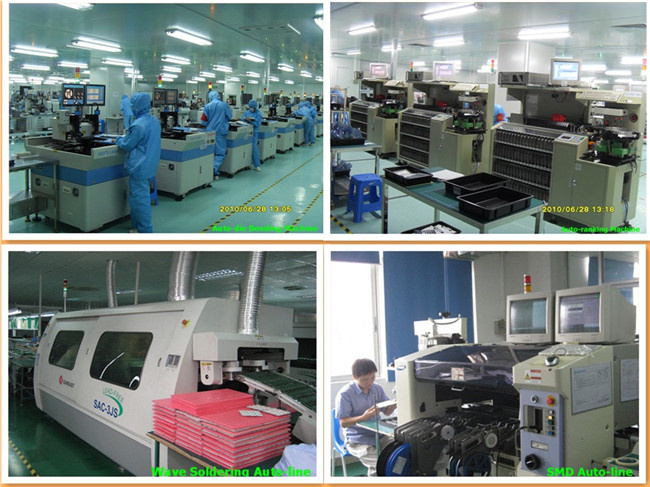

Equipped with automatic SMT production lines testing room aging room dispensing room and all comprehensive processing technology in this industry. We got professional team who are in rich experience of processing technology engineering testing and other related fields. The production system is according to the standard of ISO9001: 20000. All the products will be sent to aging room for life testing and then must pass the strict tests of the Quality Control Dept. Before shipping. Our products are Environmentally-friendly Energy-saving High efficient and with long-lifespan. Our products have been successfully used in widely: Such as Famous hotels Big Chain stores, museum and various business centers and so on.
We are adhering to the principle of" Honesty Cooperation aspects and Win-Win" and we are doing our utmost to satisfy our clients 'personalization demand.
Certification FAQ1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A: Non-artificial damage, one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
