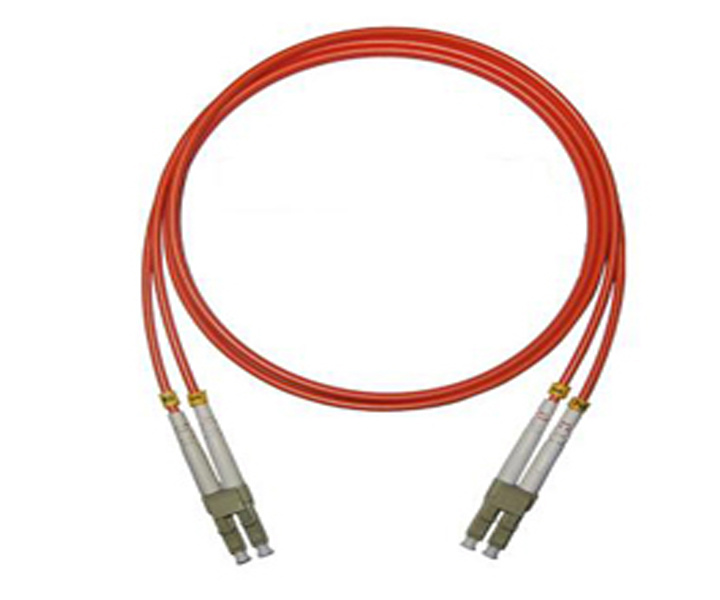

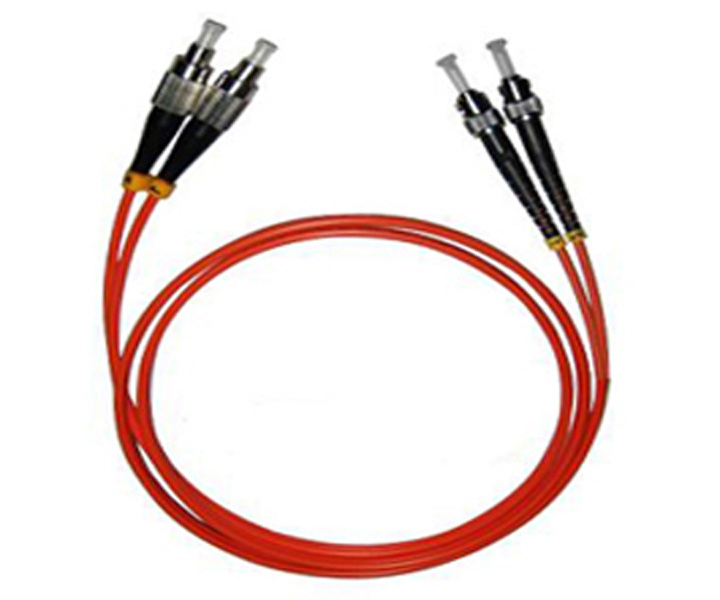

Multi-Mode Fiber Optic Patch Cords

Name: Multi-Mode Fiber Optic Patch Cords
Brand: all-electronics-online.com
SKU: 831022065
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 0.8-0.9/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fiber Optic Patch cords
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO9001
Connection Structure:	Sc LC FC St
Allowed Tensile Strength:	≥98n
Core:	Simplex or Duplex or Multi-Cores
Brand:	Fiberlink
Sheath Material:	PVC or LSZH

Product Description

Description:
Fiber Optic Patch Cords are used for Telecom networks and also used for high speed metropolitan and access network. Our Multi-mode patch cords are manufactured using LSZH cables which conform to IEC, EIA/TIA and Telecordia standards.

Compliance
Telcordia GR-326-CORE Generic requirements for optical connectors and Jumper assemblies
IEC 874-1 Generic specification for fiber optic connectors and cables
ANSI/TIA-568-C.3, ISO/IEC 11801 2nd Ed
Cable flame resistant rate: OFNR or IEC60332-3 standard

Connector specifications

Item	Multi-mode
	OM1	OM2	OM3 or OM4
Insert. Loss	0.3dB Max. (0.15dB typ.)
Return Loss	N.A
Connector Type	SC, FC, ST, LC, MU, MTRJ, E2000, MPO etc
Ferrule	Zirconia Ferrule (Zro2)
Polishing Type	PC or UPC
Durability	500 cycles(0.2 dB max increase), 1000mate/demate cycles
Pull strength	≥98N

Cable Specifications

Fiber Mode	Multi-mode
Fiber Mode	OM1, OM2, OM3 or OM4
Cable Type	Simplex, Duplex Zip-cord, or Multi-cores
Tight-buffered Fiber Diameter	0.9mm
Tight-buffered Fiber Coating	PVC or LSZH
Strength Member	Aramid Yarn
Cable Diameter	0.9mm, 1.6mm, 2.0mm, 2.4mm, 2.8mm, 3.0mm
Outer Jacket	PVC or LSZH
Jacket Color	SM Yellow \| OM1, OM2 Orange \| OM3 Aqua \| OM4 Pink
Operating Temp.	-20 ˚C to +70˚C/+85˚c (armored)
Storage Temp.	-40 ˚C to +85˚C

Fiber Specifications

Fiber Type	Max. Attenuation (dB/km)				Min. Overfill Launch Bandwidth (Mhz•km)		Min. Gigabit Ethernet Link Distance (m)
	Max. Attenuation (dB/km)				Min. Overfill Launch Bandwidth (Mhz•km)		Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nm
OM1 62.5/125μm	≤2.7	≤0.6	-	-	≥200	≥600	275	550	-
OM2 50/125μm	≤2.5	≤0.7	-	-	≥500	≥500	550	550	-
OM3 50/125μm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125μm	≤2.3	≤0.6	-	-	≥3500	≥500	1000	600	550

Our company supplies high-performance fiber optic communication system products with high quality and favorable price. Our main products are Fiber optic cable, Fiber patch cord, Fiber adapter, Fiber attenuator, FBT Coupler, PLC splitter, Fiber patch panel, Fiber termination box, Fiber distribution box, Fiber optic splice closure, MPO system and FTTH solution products, etc. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.

Interconnect Products Division: Develops and manufactures fiber optic components for a diverse range of applications. The division's products include Fiber optic connectors, patch cords andadapters, attenuators, couplers, PLC splitters, circulators, and isolators.

Solution Products Division: Known for providing Fiber Optic Communication Solution in the world, the Solution Products division focused on fiber accessories and systems, such as Fiber patch panel, Fiber termination box, Fiber distribution enclosure, Fiber optic splice closure, MPO system andFTTH solution products, etc.

OEM Products Division: OEM Products division provides OEM services to our clients by not only complete customers' requirements but also give active suggestions to improve the products' performance and quality. This division's main mission is to help customers stay competitive by constant innovation service.
