NEMA 17 Stepper Motor for 3D Printer Users, 3D Printer Customer Used NEMA 17 Stepper Motor Swidely Prefer

Name: NEMA 17 Stepper Motor for 3D Printer Users, 3D Printer Customer Used NEMA 17 Stepper Motor Swidely Prefer
Brand: all-electronics-online.com
SKU: 835120705
Availability: InStock
Rating: 5 (103 reviews)

Price:	US $ 5-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BYGH450-48-2901
Brand Name:	Jianghua
Key Words:	NEMA 17 Stepping Motor
Weight:	350g
Color:	Black
Current:	1A
Frame Size:	42mm*42mm
Motor Lengt:	48mm
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Electromechanical
Function:	Motor
Brand:	Jianghua

Product Description

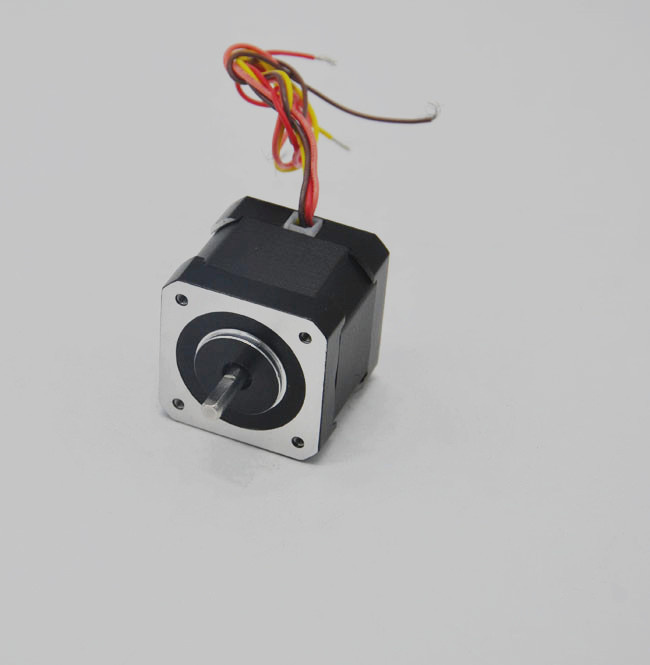

           42mm NEMA17 hybrid CE stepping motor

Place of Origin: Jiangsu China (Mainland)                         Brand Name: JH stepper motor
Model Number: 42BYGH450-48-2901                                  Phase: 2 Type: Hybrid
Certification: CCC, CE, ISO, ROHS, UL, ISO9001                   Step Angle(degrees): 1.8degree
Holding Torque: 40N.CM                                                       stepper motor Current / Phase:1A
Length:48mm                                                                  Place of Origin ofstepper motor: Changzhou, China
Brand Name of stepper motor: JH                              Certification of stepper motor: CE,ROHS ,ISO9001
MOQ of stepper motor: 1PCS                                                Packaging Details: EXPORT CARTON
Payment Terms: T/T,L/C, PAYPAL, Western union              Supply Ability: 100000pcs/month
HS code of stepper motor: 8501109990                              Round   shaft:5MM*16.5MM

Model No.	Step distance	Motor Length	Current /Phase	Resistance /Phase	Holding Torque	# of Leads	weight
42BYGH450-48-2901	1.8	48mm	1A	4.5Ω	40N.CM	4	350g

Products Show

The products above can be customized according to your requirements.

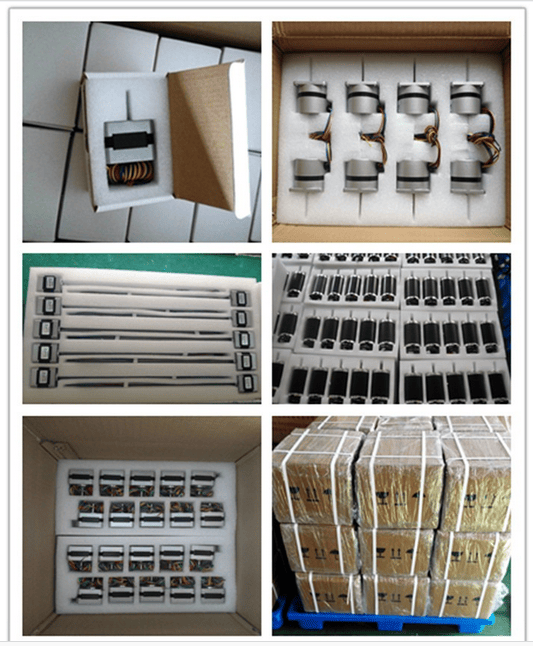

Packing&delivery

Certification show

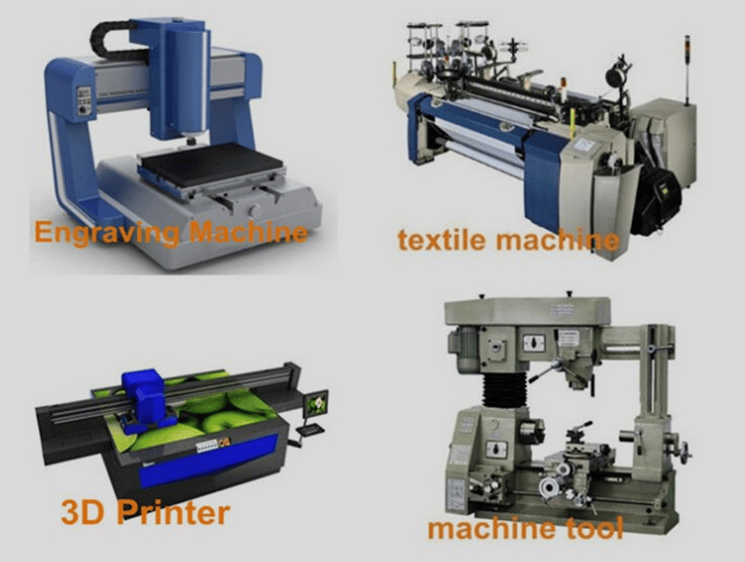

Application

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

conatct name:Fanny liu

Changzhou JiangHua electric appliance Co., Ltd is located in changzhou qi shuyan, north near Shanghai-nanjing expressway, south meets the 312 national highway, the traffic is very convenient.

Our company specializing in the production of stepping motor with many years of production experience, the product in Beijing, Shanghai, zhejiang and southern region is very popular in the customer high praise. With advanced production equipment, precision testing equipment, exquisite production process.

The company pays attention to the enterprise image, the new products constantly, breed is expanding, continuous improvement technology. The company will continue to with more excellent professionalism dedicated to our machinery equipment industry.

The company continued the effective operation of ISO9001 quality management system, excellent production equipment and advanced production processes, complete test means, perfect service system, will provide our customers with excellent products and services.

Our company carries out the "business-oriented to the letter, walk the world shengwalunding paying court" as our tenet, following the mutual reciprocity and mutual benefit spirit and their clients to establish long-term friendly cooperative partnership. Today's efforts, tomorrow's success, let us cooperate, create together fine tomorrow!
