New 4-20mA Hart Protocol Pressure Transmitter (A+E-970)
| Price: |
US $ 130/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
A+E-970 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Signal: |
4-20mA |
| Communication: |
Hart Protocol |
| Supply Voltage: |
10.5-42V DC |
| Max. Measuring Range: |
0-35MPa |
| LCD Display: |
Optional |
Product Description
4-20mA HART protocol Pressure Transmitter A+E-970
Overview for pressure transmitter
A+E-970 Series Pressure (Differential Pressure) Transmitter selects imported high-quality diffused silicone, ceramic pressure sensor as the sensitive element, and it uses specific integrated module to realize the accurate measurement and transmission of pressure change of media such as liquid, gas, steam, through subtle compensation of temperature, zero point, full range and nonlinearity. It can realize the ideal surveillance of vacuum media changes in various sites of industrial and mining enterprises and scientific research institutions.
Characteristics for pressure transmitter

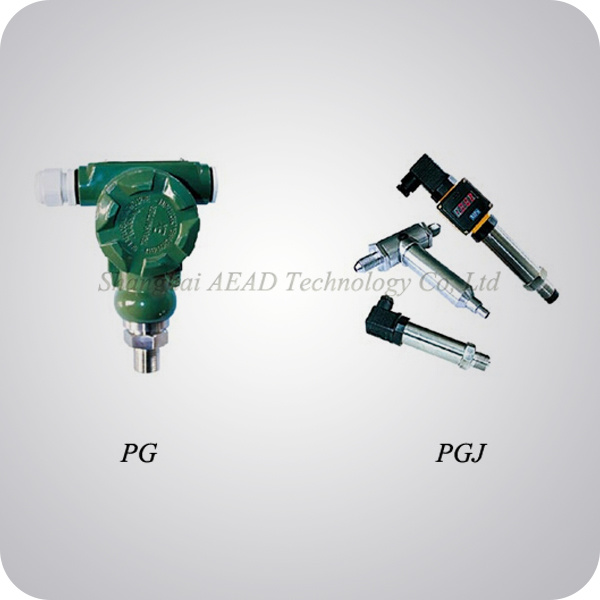

PG Series Standard Pressure Transmitter
1) It uses special V/integrated circuit, few peripheral components, and it has
the advantages of high reliability, simple and easy maintenance, small size,
light weight, extremely convenient installation and debugging.
2) Aluminum alloy die-casting casing, three-terminal isolation, electrostatic
sprayed protective layer, and it is sturdy and durable.
3) 4-20mA DC two-wire system signal transmission, it has strong anti-interference
ability and long transmission distance.
4) Three indication headers of LED, LCD and pointer, the on-site reading is
very convenient. It can be used to measure thick, crystal and corrosive media.
5) High accuracy and high stability. Except for the imported original sensor
already corrected by laser, it also integrates the whole machine
within operating temperature.
PGJ Subtle Pressure (Differential Pressure) Transmitter
1) It has the advantage of small volume, light weight and it, can be mounted and
used in the narrow position.
2) 316L stainless steel mechatronics structure makes it sturdy and durable.
3) Special integrated chip with few discrete components and good
temperature characteristics.
4) Easy operation and convenient maintenance.
|
type |
pressure transmitter |
|
Communication |
HART protocol |
|
Supple voltage |
9-32V |
|
Output |
4-20mA |
|
Display |
LCD display and LED display (Optional) |
Shanghai AEAD Technology Co., Ltd is a cooperation of Chinese and German technique which mainly performs in R&D, production and sales.
AEAD Technology was first founded in 2009 in Jiangsu, and established Shanghai Branch in May 18th, 2014. The new Shanghai factory would complete in DEC 2014, located in the Free Trade Zone. Before the business started in 2009, the General Manager Mr. R. H. Liu and Technical Director Mr. S. P. Zong had dedicated in instrumentation for more than 20 years. After 5 years development and achieving good reputation in domestic market, we become a leading manufacture in East China. Now we believe we are ready to overseas users.
The company adopts advanced production line from Germany, and the main products include A+E series products for exporting and A+D products for domestic sales in pressure, temperature, flow, level, calibration and valve which can cater for the needs from domestic and foreign markets. Products are organized and sold under fully dedicated divisions, each staffed with an experienced and highly trained team of dedicated technical sales, applications engineering and customer service support personnel. Products are applied to water treatment, petrochemical, chemicals, machinery, pharmacy, food, mine, metallurgy, etc.
AEAD Technology adheres to the development strategy of Internationalization, Technicalization, Industrialization, which can realize the high-end extension of the products from domestic market to international market. The value chain turns from providing single product to system solution, and the operation expands from linear-oriented to a comprehensive modern enterprise operation including merger and capital operation.
The company has already passed the ISO9001 Quality Management System Certification, ISO14001 Environmental System Certification, and Occupation Health Safety Management System Certification (OHSAS18000).
