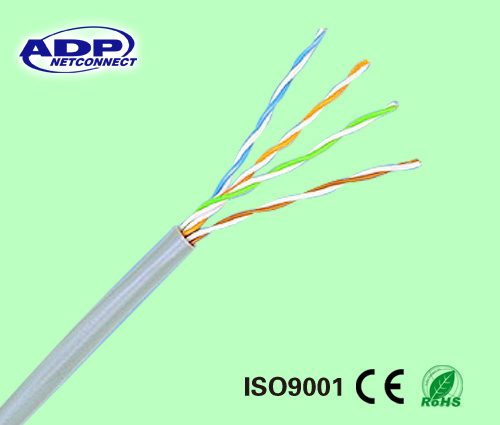

New Style Fluke Tested 100 MHz UTP Cat5e Network Cable and LAN Cable Communication Cable

Name: New Style Fluke Tested 100 MHz UTP Cat5e Network Cable and LAN Cable Communication Cable
Brand: all-electronics-online.com
SKU: 799300835
Availability: InStock
Rating: 4.7 (89 reviews)

Price:	US $ 14-80/Roll
Min Order:	200/Roll
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Application:	Local Communication Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Cat5e
Wire Core Material:	Bc/CCA/CCS/Ccag
Model:	Cat5e LAN Cable
Brand:	ADP/OEM

Product Description

Specification
Conductor: 24AWG Soft Plain Copper
Insulation: Polyethylene with colour marking on white cores for easy identification
Colour Code: White-Blue/Blue,White-Orange/Orange,White-Green/Green,White-Brown/Brown
Drain Wire: Tinned copper
Shield: Aluminium foil, polyester tape and drain wire
Outer Jacket: PVC, CMX,CM,CMR,CMG , Leaded and Lead-free as well as LSZH versions available Nominal Diameter: 7.5 +/- 0.3 mm
Printing: Sheath printed black with legend as per customer requirement
Maximum Pulling Force: 80 N
Minimum Bending Radius: 65 MM
Nominal Weight: 60 KG/KM
Operating Temperature: -15Deg C ~ +70 Deg C
Installation Temperature: +5 Deg C ~ +40 Deg C
Fire Performance: IEC332.1, VW1, IEC332.3 versions available depending on jacket type

Application
1.Computer Network Cabling Project
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission.

Packing &delivery
1) Length:305m/roll, other length is available according to clients request.
2) Packing: Easy pull color box+outer carton
3) Other packing available according to client's request
Delivery Detail: 7-15 days after receiving 30% T/T or L/C

Any inquiry, just feel free to contact with us any time!

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
