| Prod Model: |
JD400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
300-600W:12VDC/24VDC |
| O/P: |
220V,110V ±10 V |
| Capacity: |
300-3000W |
| Wave: |
Modified Sine Wave |
Product Description

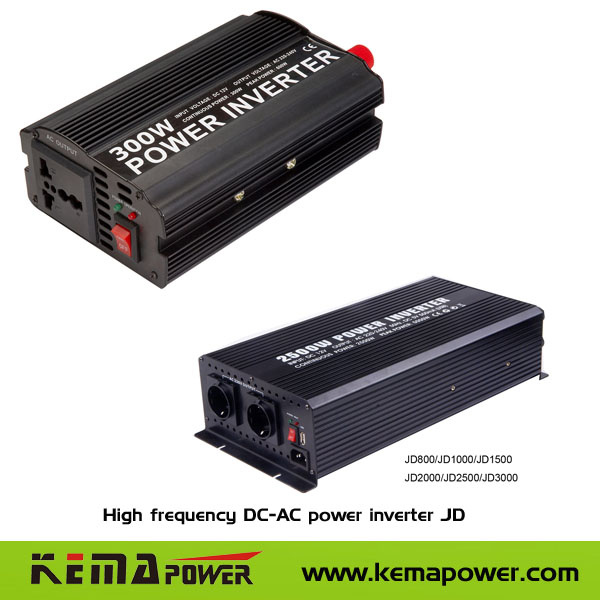

High Frequency Power Inverter (JD300) * High frequency DC-AC power inverter
* I/P:300-600W:12VDC/24VDC
* O/P:220V,110V ±10 V
* Capacity:300-3000W
* Wave Form:modified sine wave
* Bat.:12VDC or 24VDC External battery
* Stand by Function
* Special design for Off Grid Solar System inverter
Key Features:
1. High frequency DC-AC power inverter
2. Single phase modefied sine wave ouput
3. Full range protection for the inverter and the battery
4. With USB port
5. Smaller and light
6. Modified sine wave
7. LED display and alarm
8. Two times surge power
Technical Specifications | Mode | JD 300 | JD 400 | JD 500 | JD 600 |
| Continuous power (W) | 300 | 400 | 500 | 600 |
| Surge capability (W) | 600 | 800 | 1000 | 1200 |
| DC input (VDC) | 12/24 | 12/24 | 12/24 | 12/24 |
| DC input range | 10.5V to 15.5V±0.3 or 21V to 31V±0.3 |
| AC output | 220V,110V ±10 V |
| Output frequency | 50/60±5 HZ |
| Output waveform | Modified sine wave |
| Efficiency | >85% |
| Battery low alarm | 10.2-10.8V or 20.4-21.6V |
| Over discharge protection | 10 ±0.5V or 20±0.5V shut off |
| Resume voltage | 11.7V--12.8V or 23.4-25.6V auto restart |
| Over voltage protection | 15V-16.5V, 30-33V shut off. |
| Overload protection | Shut off while over 120% rated capacity |
| With cooling fan | Yes |
| USB | Optional | Yes | Yes |
| DC conection | With cable |
| Connection convertor | Yes | Yes | Yes | Yes |
| Product package | Paper skin |
| Running temperature | 20 to 40 degree |
| High temperature protection | Yes |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Product size(mm) | 150*102*55 | 150*102*55 | 200*102*55 | 200*102*55 |
| Carton size (mm) | 575*340*450 | 575*340*450 | 575*340*450 | 575*340*450 |
| Carton weight (kg) | 20 | 21.5 | 25 | 26 |
| PCS /CTN | 20 | 20 | 20 | 20 |
