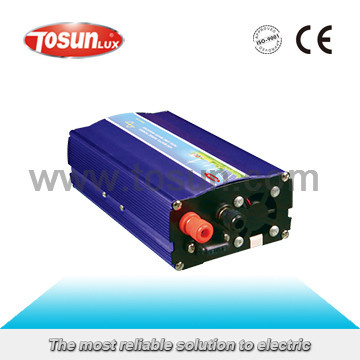

off-Grid Pure Sine Wave Inverter with Power 150W-6000W

Name: off-Grid Pure Sine Wave Inverter with Power 150W-6000W
Brand: all-electronics-online.com
SKU: 753358445
Availability: InStock
Rating: 4.3 (123 reviews)

Price:	US $ 36.78-37.62/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	TZ-300S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Continuous Power:	300W
Surge Power:	600W
Power Source:	Solar Power
Phase:	Single
Brand:	Tosunlux
Application:	Home Appliance

Product Description

Details Show

Input	Rated DC Voltage	12V 24V 48V 110V
	Voltage Range	10-16VDC 20-33VDC 40-63VDC 90-130VDC
	Efficiency	<88%
	DC Connection	Cables with Clips or Car Adaptor
	AC Voltage	100/110/120VAC 220/230/240VAC
Output	Waveform	Pure Sine Wave
	Frequency	50Hz / 60Hz
	AC Regulation	3%
Protection	Low Voltage Alarm	10.5VDC±0.5V 21VDC±1V 42VDC±1V 100VDC±1V
	Low Voltage Shut Down	10VDC±0.5V 20VDC±1V 40VDC±1V 96VDC±5V
	Short Circuit	Shut off ouput automatically
	Overload	Shut off ouput automatically
	Overvoltage	16V 33V 63V 130V
	Over Thermal	Shut off ouput automatically
Environment	Working Temperature	-10ºC-+50ºC
	Working Humidity	20%-90%RH
	Storage Temperature	-30ºC-+70ºC
Other	Start	Soft start
Other	Cooling ways	Cooling fan

Specification

Model		TZ-150S	TZ--300S	TZ-500S	TZ-600S		TZ-800S	TZ-1000S
Input	Idling Current	<0.6A	<0.7A	<0.5A			<0.5A	<0.8A
Output	Continuous Power	150VA	300VA	500VA		600VA	800VA	1000VA
Output	Surger Power	300VA	600VA	1000VA		1200VA	1600VA	2000VA
Package	Machine Size(mm)	20010560		26516585			30016585	33516585

Model		TZ-2000S	TZ-2500S	TZ-3000S	TZ-4000S	TZ--5000S	TZ-6000S
Input	Idling Current	<1.1A	<2.5A		<2.5A	<2.5A	<2A
Output	Continuous Power	2000VA	2500VA	3000VA	4000VA	5000VA	6000VA
Output	Surger Power	4000VA	5000VA	6000VA	8000VA	10000VA	12000VA
Package	Machine Size(mm)	46516585	425217153	425217153	425217153	520217153	550217153

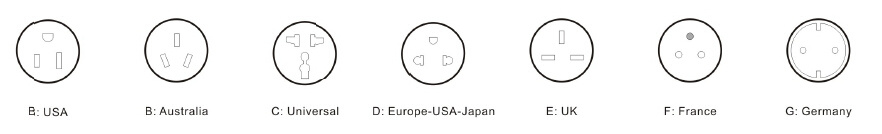

Available Socket

Application

1. Pure sine wave output.

2.Low work nose, high efficiency.

3. Small, light and artistic, benefited from adopting the SMD technology.

4. Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

5. Cooling fan is intellectual controlled, andits working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

6. With complete protection: 1) overload protection

2) internal over-trmperature protection

3) output short-circuit protection

4) input under -voltage protection

5) input over-voltage protection

Why Us?

1. Clients' benefit first.

2. Experinced in the line for more than 21 years.

3. Reasonable price and good source of raw material.

4. A group of professional inspectors monitor quality.

5. TUV, SEMKO, CE, CB, ROHS Approval for products.

6. Unique design for packing.

7. Experienced salesmen offer one-to-one service.
