| Prod Model: |
TZ-150S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Continuous Power: |
150va-6000va |
| Power Source: |
Solar Power |
| Type: |
DC/AC Inverters |
| Output Power: |
101 - 200W |
| Brand: |
Tosunlux |
Product Description
Application 1. Pure sine wave output. 2.Low work nose, high efficiency. 3. Small, light and artistic, benefited from adopting the SMD technology. 4. Featured with high reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology. 5. Cooling fan is intellectual controlled, andits working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise. 6. With complete protection: 1) overload protection
2) internal over-trmperature protection
3) output short-circuit protection
4) input under -voltage protection
5) input over-voltage protection
Specification| Input | Rated DC Voltage | 12V 24V 48V 110V |
| Voltage Range | 10-16VDC 20-33VDC 40-63VDC 90-130VDC |
| Efficiency | <88% |
| DC Connection | Cables with Clips or Car Adaptor |
| AC Voltage | 100/110/120VAC 220/230/240VAC |
| Output | Waveform | Pure Sine Wave |
| Frequency | 50Hz / 60Hz |
| AC Regulation | 3% |
| Protection | Low Voltage Alarm | 10.5VDC±0.5V 21VDC±1V 42VDC±1V 100VDC±1V |
| Low Voltage Shut Down | 10VDC±0.5V 20VDC±1V 40VDC±1V 96VDC±5V |
| Short Circuit | Shut off ouput automatically |
| Overload | Shut off ouput automatically |
| Overvoltage | 16V 33V 63V 130V |
| Over Thermal | Shut off ouput automatically |
| Environment | Working Temperature | -10ºC-+50ºC |
| Working Humidity | 20%-90%RH |
| Storage Temperature | -30ºC-+70ºC |
| Other | Start | Soft start |
| Cooling ways | Cooling fan |

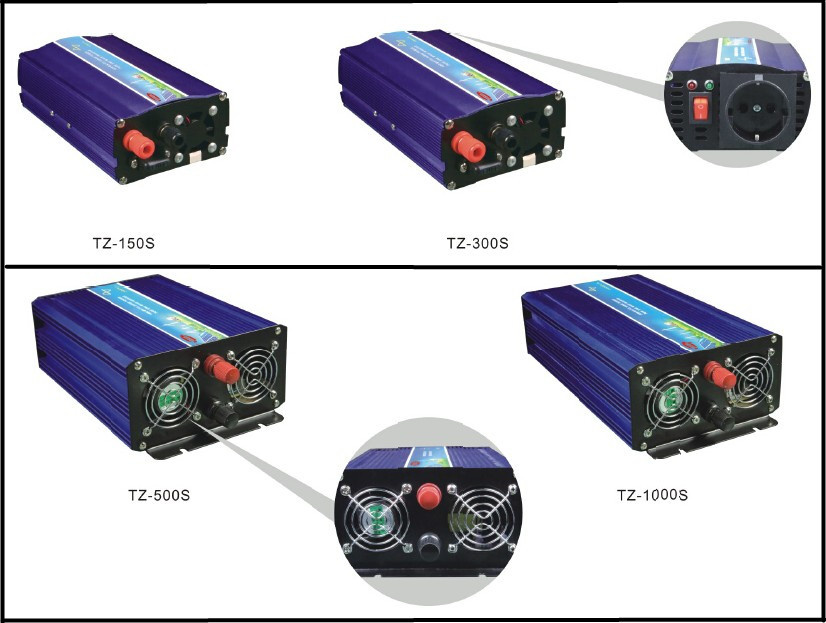

| Model | TZ-150S | TZ--300S | TZ-500S | TZ-600S | TZ-800S | TZ-1000S |
| Input | Idling Current | <0.6A | <0.7A | <0.5A | <0.5A | <0.8A |
| Output | Continuous Power | 150VA | 300VA | 500VA | 600VA | 800VA | 1000VA |
| Surger Power | 300VA | 600VA | 1000VA | 1200VA | 1600VA | 2000VA |
| Package | Machine Size(mm) | 200*105*60 | 265*165*85 | 300*165*85 | 335*165*85 |
| Model | TZ-2000S | TZ-2500S | TZ-3000S | TZ-4000S | TZ--5000S | TZ-6000S |
| Input | Idling Current | <1.1A | <2.5A | <2.5A | <2.5A | <2A |
| Output | Continuous Power | 2000VA | 2500VA | 3000VA | 4000VA | 5000VA | 6000VA |
| Surger Power | 4000VA | 5000VA | 6000VA | 8000VA | 10000VA | 12000VA |
| Package | Machine Size(mm) | 465*165*85 | 425*217*153 | 425*217*153 | 425*217*153 | 520*217*153 | 550*217*153 |
Available Socket
