Offline Line Interactive UPS (SMD 500-1500W)

Name: Offline Line Interactive UPS (SMD 500-1500W)
Brand: all-electronics-online.com
SKU: 839169165
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SMD 500-1500W
Packing Size:	425400454-422264275
Phase:	Single Phase
Type:	Line Interactive
Protection:	Overvoltage
Application:	It , Hospital,Telcom,Equipment.
Brand:	Greenmaster

Product Description

Offline Line Interactive UPS (SMD 500-1500W)

* I/P: 220VAC or 110VAC , O/P:220VAC or 110VAC ± 5%

* Capacity:500VA / 600VA /1KVA /1.2KVA/1.5KVA

* Output: PF 0.6, Modified sine wave

* Transfer Time:4-6ms normal ,max 8 ms

* DC Voltage:500VA/600VA:12VDC,1K/1.2K/1.5KVA:24VDC

* Bat.:500VA / 600VA:1PCS 7.2AH,1KVA /1.2KVA:2PCS,7.2AH 1.5KVA:2PCS 9AH or external battery.

* Full Bridge, CPU Control,USB

Key features:

1. CPU Control, SMD Technology, Line interactive UPS

2. Boost and Bluck AVR

3. SMD Technology

4. Protection for Short circuit, overload and battery low voltage

5. LED indication and audible alarm function

6. Silence Setup

7. Intelligent battery management

8. AUTO Restart function when AC recovers

9. Off charge function

10. Cold start function

11. RJ11/RJ45 is option

12. USB is option

13.LCD display is option

Product Show:

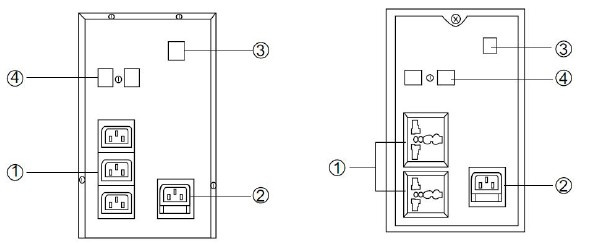

Back panel

1.Output receptacles

2.AC input with AC fuse

3.USB computer

4. Network/fax/modem/surge Protection

Technical specification

ITEM	MODEL	SMD600	SMD800	SMD1000	SMD1250	SMD1500
Capacity		600VA/360W	800VA/480W	1KVA/600W	1.2KVA/750W	1.5KVA/900W
Input	Input Voltage	75-150 or 145-290+-5VAC
	Input Frequency	50/60HZ+-5% (AUTO Sensing)
Output	Wave Form	Modified Sine Wave
	Output Voltage	120/220/230/240VAC;50-127V,100-255V
	Transfer Time	4~6ms normal ,Max8Ms
	Output Frequency	50.0/60Hz±1.0Hz (Battery Mode),follow Main while AC Mode
Battery And Charger	Battery protection	FUSE
	DC Voltage	12VDC		24VDC
	Standard UPS	1*7AH	1*9AH	2*7AH	2*7AH	2*9AH
	Battery
	Backup time	3-20Minutes(1PC+15 inch CRT)		30-60Minutes(1PC+15 inch CRT)		40-80Minutes(1PC+15 inch CRT)
Protection		Over charge and over discharge,short Circuit,Overload
Display		LED display for AC/ DC mode and Fault. LCD is option
Alarm		Alarm while DC mode/ Battery low / Overload /Battery replacement.
Enviromental Characteristics	Ambient Temp.	0 to 40 degree celsius
	Relative Humidity	0% to 90%
	Storage Temp.	-15 to 40 degree celsius
	Noise Level	40dB(Max)
Product Size		30585140	30585140	324100153	324100153	324100153
Packing Size (MM)		380278443	380278443	415410298	415410298	415410298
PCS/CTN		4	4	2	2	2
Gross Weight /CTN (KG)		22.8/CTN	26/CTN	22.8/CTN	22.8/CTN	25.6/CTN
