Oil Plugging Aluminium Gt Type Copper Connecting Pipe Terminal Connector

Name: Oil Plugging Aluminium Gt Type Copper Connecting Pipe Terminal Connector
Brand: all-electronics-online.com
SKU: 840391885
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT
Yojiu Profession:	28 Years
Crimp Terminal Surface:	Original or Tin Plated
Crimp Terminal Material:	Copper
Usage:	Wire Connector, Power
Others:	OEM Service Offered
Product Name:	Gt Connector
Name:	Gt Connector
Special:	High Quality
Certificate:	ISO9001
Samples:	Available

Product Description

Product Description

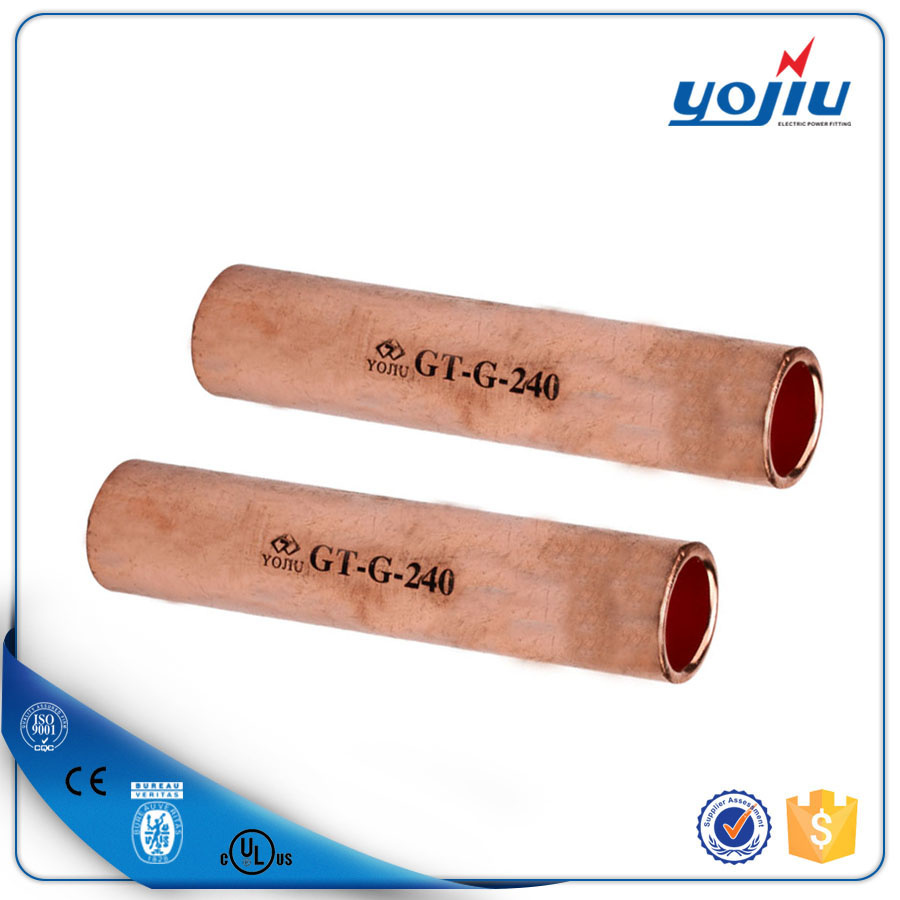

GT Copper Connector(Oil Plugging),tube cable connector

GT copper connector(oil plugging) are suitable for the connection of copper conductors (section 16-500mm2) in power cable with electronic equiment. They are made of higher 99.9% percent pure copper,and can be plated with tin as customer required.

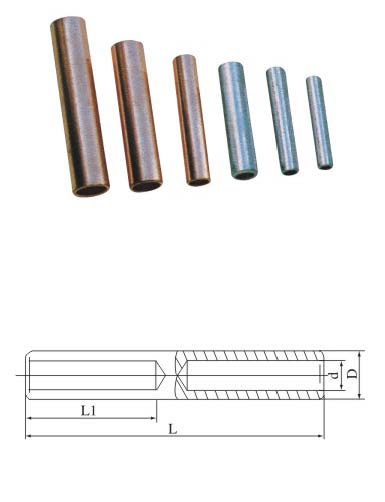

Dimension

Item No.	Cable spec(mm²)	Dimension(mm)				Note
Item No.	Cable spec(mm²)	D	d	L1	L	Note
GT16	16	10	6	30	65	(1)Can be produced according to customer's drawings.
GT25	25	11	7	32	70
GT35	35	12	8.5	34	75
GT50	50	14	9.5	35	80
GT70	70	16	11.5	42	90
GT95	95	18	13.5	43	95
GT120	120	20	15	47	100
GT150	150	22	16.5	49	105
GT185	185	25	19	50	110
GT240	240	27	21	55	120
GT300	300	32	23	60	130
GT400	400	34	27	65	140
GT500	500	38	29	70	155

We are the biggest manufacturer and exporter of electric power fitting and cable accessory in China. We have more than 20 years experience and we are ISO9001/2000 certified enterprise. Our campany located in Liushe Town, Wenzhou. Liushi is the centr of eelectric appliance in China. It isabout 15Kmfar away from Wenzhou Airport and Railway Station and 104State level highway across through. Therefore the transportation is very convenient.

The total area of our company is over 1500m2. We have more than300 workers include 38 senior and intermcdiate special technical personnel and administraive personnel. We havemore than 200 series and 3000 vareties products. Include cable hardware, circuity hardware, substation hardware, power station hardware, cabletie, heat or cold shrinkable material and other accessory.

Our product has been exported to the Southeast Asia, Africa, Middle East, Europe and America more than 40 countries. In our trade with merchants of various countries, we always adhere to theprinciple of equality and mutual benefit. Welcomecustomers in this line to come over for negotia-tion and cooperation and make contribution to development of electric power.
