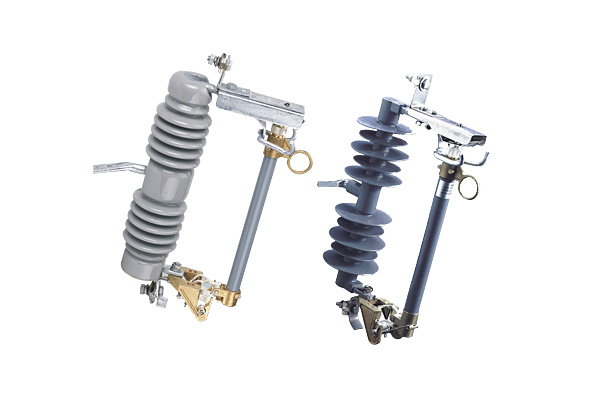

Outdoor Polymer High Voltage Dropout Fuse Cutout

Name: Outdoor Polymer High Voltage Dropout Fuse Cutout
Brand: all-electronics-online.com
SKU: 719833565
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	Fuse Cutout
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	China (Mainland)
Brand Name:	Powery
Material:	Polymer, Ceramic
Rated Voltage:	12kv
Mechanical Life:	2000times
Rated Current:	100A 200A
Impulse Voltage:	125kv 150kv
Temperature:	40°c -- 50°c
Type:	Temperature Fuse
Breaking Capacity:	High
Usaga:	High Voltage
Standard:	IEC

Product Description

Product discription fuse ？cutout ？characteristics 1. Widely applicable for12KV electric distribution as protector; 2. can protect transformer, capacitor, cable, branch cable; 3.polymer fuse cutout can supply reliable overload protection and short circuit protection on right time; 4.fuse cutout can be installed arcing chamber. ？ high voltage fuse cutout ？performance 1.Durable and corrosion resistant-Zinc impregnation on surface; 2.Excellent conductivity; 3.Single-phase exhausting. 4.UV radiation resistance ？ polymer fuse cutout Advantages 1.Dropout Fuses installation is simple, people can work with gloves; 2.Solid copper casting ensure opening and closing reliable; 3.Very simple to insert or unload fusion tube; 4.Tripping is reliable; 5.Dropout Fuses is not matter with fault current. Drop out fuse cutout is composed of insulator supports and fuse tube. Material: Procelain or silicon rubber

Rated Voltage(kv)	Rated current(A)	Breaking current(KA)	Impulse voltage(BIL)	Power frequency withstand voltage	Leakage distance(MM)	Weight(KG)	Dimensions(cm)
12	100	6.3	110	40	250	5.8	42369
15	200	12	125	45	320	6.9	50369
24	100	8	150	65	530	10	5138.512.8
15	200	12	125	45	350	4.15	52.534.510
12	100	6.3	110	40	250	6.3	40369
15	200	12	125	45	320	10	48369
24	100	8	150	65	540	10	473612.8
33	200	12	170	70	720	11.6	573712.5
11	100	6	110	42	250	5.8	42369
12	200	12	125	45	250	5.8	41369
15	100	10	125	45	320	7.2	5036.59
11	200	8	110	40	250	7.5	492711.5
24	100	8	170	70	540	4.4	503410
33	200	10	170	70	700	13	904513

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.
