Overload Protection 3p Contactor Magnetic AC 4p Contactor

Name: Overload Protection 3p Contactor Magnetic AC 4p Contactor
Brand: all-electronics-online.com
SKU: 792591845
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 58.85-64.24/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-265
Export Market:	Global

Product Description

CC1 256A Magnetic Contactor

1. Description

Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC.
Standard:IEC/EN 60947-4-1

2. Specification

Control Coil Valtage (Ac Coil Operation)

Volts(VAC)

110

127

220

230

240

380

415

440

480

500

600

Code

50Hz

60Hz

50/60Hz

Model No.		CC1-115	CC1-150	CC1-185	CC1-225	CC1-265	CC1-330
Rated Conventional Heating Current	Ith(A)	200	200	275	275	315	380
Rated Voltage Ui(V)	Ui(V)	690	690	690	690	690	690
Rated Operation Current Ue=380/415V	AC-3 Le(A)	115	150	185	225	265	330
Rated Operation Current Ue=380/415V	AC-4 Le(A)	52	60	79	86	105	117
Power Controlled 3Ph Cage Motor AC3	380/415 kW	55	75	90	110	132	160
Power Controlled 3Ph Cage Motor AC3	660/690 kW	80	100	110	129	160	220
Eletrical life(x10^3 operations)	AC-3	600	600	300	300	300	300
Eletrical life(x10^3 operations)	AC-4	100	100	100	100	100	100
Mechainical life(x10^3 operations)		6	6	3	3	3	3
Matched Fuse	Size	RT16-1	RT16-2	RT16-2	RT16-2	RT16-2	RT16-2
Matched Fuse	A	200	225	315	315	355	450
Main Circuit		3P or 4P

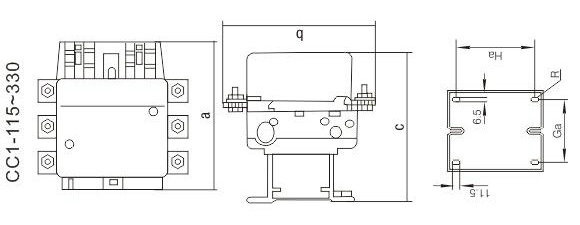

3. Dimension(mm)

Model	A max	B max	C max
CC1-115	163.5	162	171
CC1-150	163.5	170	171
CC1-185	168.5	174	181
CC1-225	168.5	197	181
CC1-265	201.5	203	213
CC1-330	213	206	219

4. Certificate

5. Our Service

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.

B.After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.

C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.

Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!

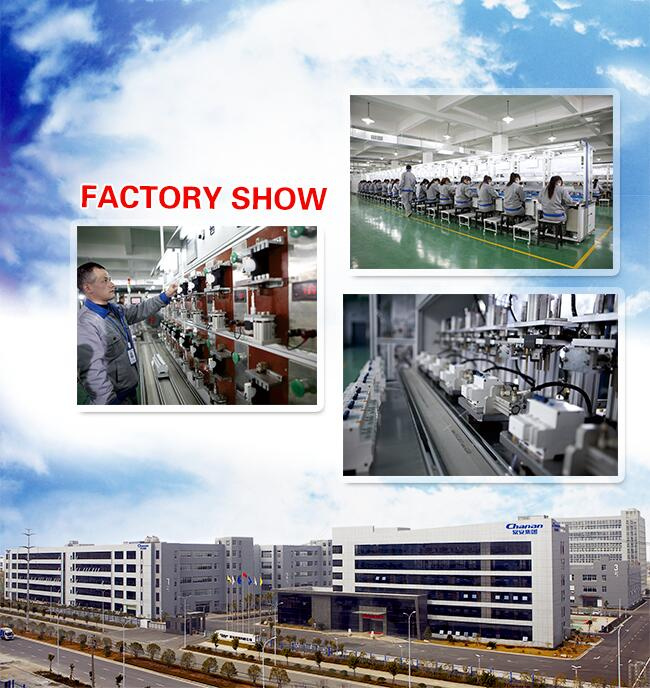

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

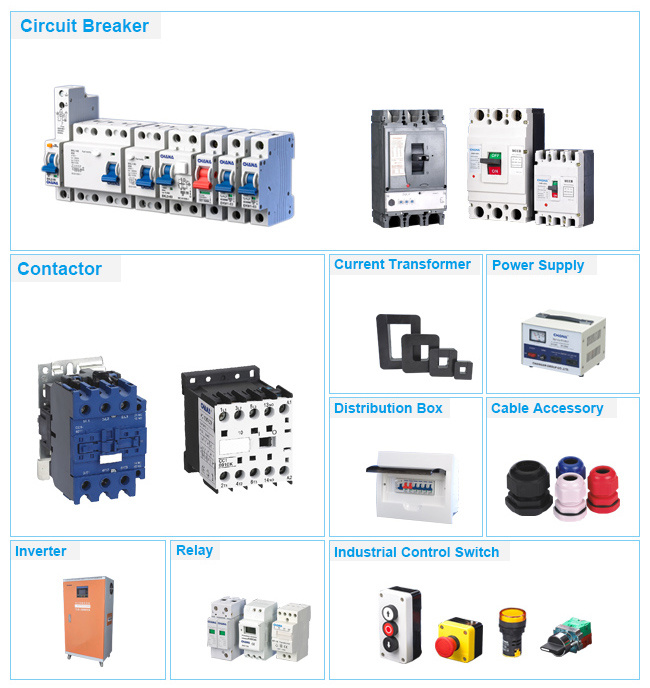

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
