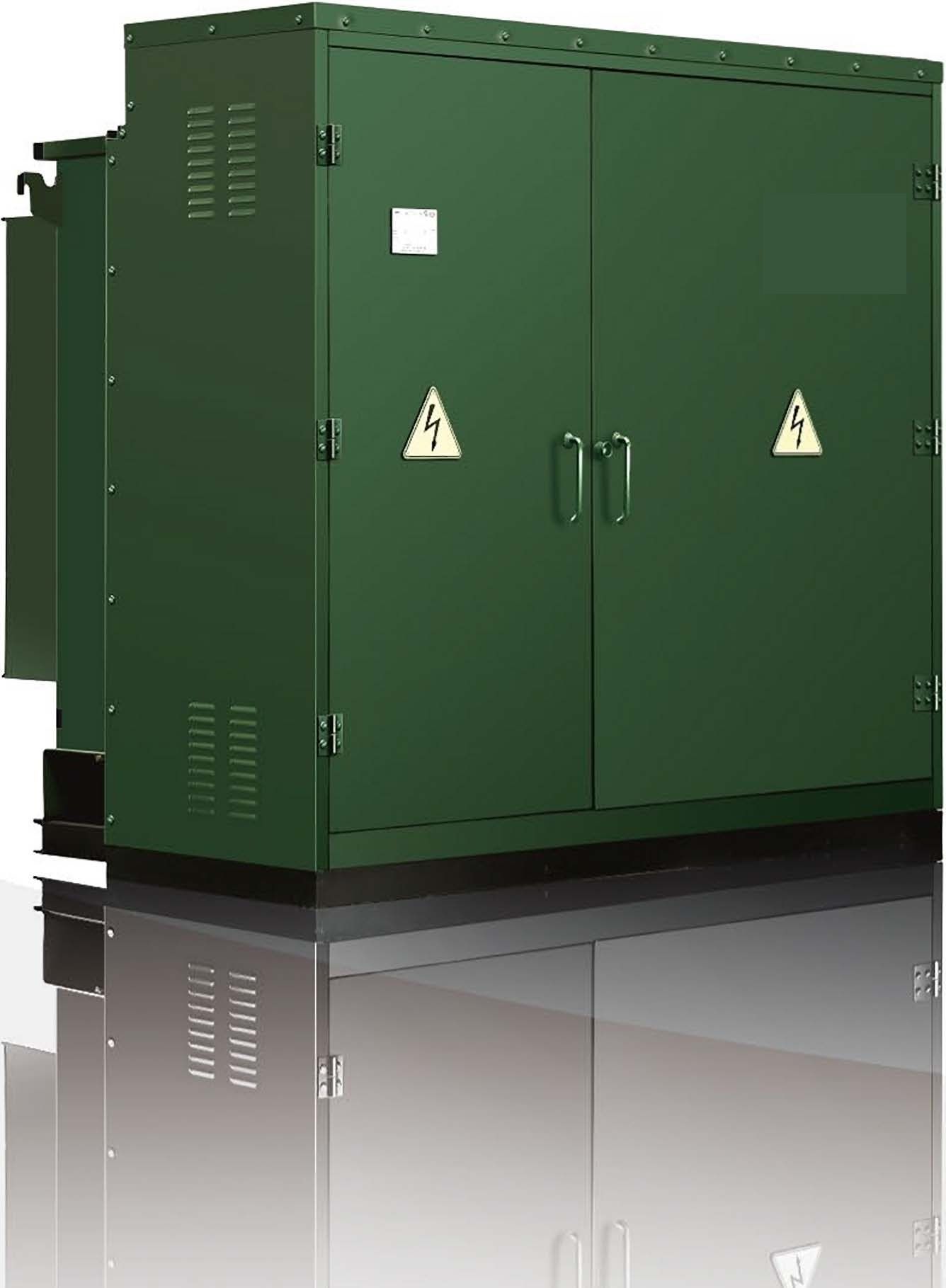

Package Substation 11kv/0.415kv 500kVA
| Price: |
US $ 30000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
SSB |
| Application: |
Power |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Winding Type: |
Two-winding Transformer |
Product Description
THREE PHASE TRANSFORMER PEDESTAL TYPE 500 KVA, 10.5/0.23 KV
FOR WORKING IN ALTITUDE OF 3500 M.O.S.L.
Ítem | Descriptión | Unit | Required | Guaranteed |
1 | GENERAL DATA | | | |
1.1 | Manufacturer | | To indicate | HEMG |
1.2 | Country | | To indicate | P.R.China |
1.3 | Brand | | To indicate | HEMG |
1.4 | Power | KVA | 500 | 500 |
1.5 | Number of coils | | 2 | 2 |
1.6 | Number of phases | | 3 | 3 |
1.7 | Altitude of operation | | 3500 | 3500 |
1.8 | Mounting | | Outdoor | Outdoor |
2 | NOMINAL DATA AND CHARACTERISTICS | | | |
2.1 | NominalFrequency | Hz | 60 | 60 |
2.2 | Nominal Voltage High voltaje side without load | KV | 10.5+/-2x2.5% | 10.5+/-2x2.5% |
2.3 | Nominal Voltage low voltage side without load | kV | 0.230 | 0.230 |
2.4 | Insulation level high voltage | | | |
| Insulation Class | KV | 12 | 12 |
| Impulse Withstand Voltage 1.2/50 of external insulation | kVp | 125 | 125 |
| Impulse Withstand Voltage 1.2/50 of internal insulation | kVp | 75 | 75 |
| Withstand voltage industrial frequency | KV | 28 | 28 |
| Number of terminals in the primary side | | 6 | 6 |
| Material of the coils | | Copper | Copper |
| Bridge capacity for work in mesh or ring. | Amps | 200 | 200 |
2.5 | Insulation level low voltage side | | | |
| Insulation Class | KV | 1.1 | 1.1 |
| Withstand voltage industrial frequency | KV | 3.0 | 3.0 |
| Material of the coils | | Copper | Copper |
| Number of terminals in the secondary side | u | 3 | 3 |
2.6 | ConnectionGroup | | Dyn5 | Dyn5 |
2.7 | Type of working | | Meshor ring | Meshor ring |
2.8 | Shortcircuit voltage at 75 C | % | 4 | 4 |
2.9 | Losses | VA | 30 | 30 |
| Losses in the iron (% Nominal Power ) | | 1179 w | 1179 w |
| Losses in the copper with full load (% Nominal Power ) | | 6540 w | 6540 w |
2.10 | On temperature rise ( Limit Max Power ONAN ) | | | |
| On temperature rise in the hot point of the coils | C | 65 | 65 |
| On temperature rise of the oil in the top side of the tank | C | 60 | 60 |
2.11 | Type of Oil | | Mineral, free of PCBs | Mineral, free of PCBs |
2.12 | Standard for design, manufacture and test reports | | Indicate | IEC60076 |
2.13 | Standard for capacity of overload | | Indicate | IEC60076 |
2.14 | Standard for insulation oils | | Indicate |
IEC60296
|
2.15 | Standard for the bushing plug type | | Indicate | IEC60076 |
2.16 | Standards for guaranteed losses | | Indicate | IEC60076 |
3.0 | Equipments | | | |
3.1 | Cabin of Medium Voltage | | Yes | Yes |
| Load Break switch submergible in oil, arranged such as to allow the primary network continue without interruption even when the transformer is out of service. | | Yes | Yes |
| Hold fuse Bay -O-Net type | | Yes | Yes |
| Fuses system Bay -O-Net current sensing | | Yes | Yes |
| Current limiting fuses | | Yes | Yes |
| Resyn insulators for system of connector plug-in | | Yes | Yes |
| Lock of the door | | Yes | Yes |
| Support of parking | | Yes | Yes |
| Plugs connector for Medium Voltage cubit type | | Yes | Yes |
| Kit of grounding of plugs connectors | | Yes | Yes |
3.2 | Cabin of low voltage | | Yes | Yes |
| Porcelain Insulators | | Yes | Yes |
| General Circuit Breaker for low voltage | | Yes | Yes |
| Auxiliar Circuit Breaker for low voltage | | Yes | Yes |
| interlocking for the door | | Yes | Yes |
| Lock of the door | | | |
3.3 | Transformation Module | | Yes | Yes |
| Indicator of oil level | | Yes Yes | Yes Yes |
| Drain tap | | Yes | Yes |
| Lifting ears | | Yes | Yes |
| Nameplate | | Yes | Yes |
| Vacuum tap changer | | Yes | Yes |
| Terminal for grounding | | Yes | Yes |
| Viwefinder of oil level | | Yes | Yes |
| Well for measure temperatures | | Yes | Yes |
3.4 | Telescopic pole operation of 6 bodies, 33 KV | | yes | yes |
Ningbo Hyuan Power Industry Co., Ltd was found in 2006, It is a professional company which is involved in Complete supply, Designing, Consulate and Service of Substation up to 245kv and of Distribution Automation up to 245kv
Our product is including of:
1.15KV/27KV/38KV, 50Hz/60Hz, 630A/1250A The Most advanced Recloser in the world for Pole mounted and Substation Mounted with Protocol IEC61850/DNP3.0 according to IEEE/ANSI/IEC standard;
2.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Three phase Outdoor Isolator/Disconnector with Double Break at side /Central Single Break for Level/Vertical Mounted on Pad Substation or Power Tower;
3.15KV/27KV/33KV/66KV/123KV/145KV/150KV/170KV/245KV, 50Hz/60Hz, 1250A/2000A/3150A, Outdoor Three phase /Single phase SF6/Vacuum Circuit Breaker with Three Phase Common Operation /Single Phase Seperate Operation;
4.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, MR2000/1(5)A, Outdoor Oil/Resin/Capacitor Current transformer, Voltage Transformer up to 5 cores;
5.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz, 100kvar to 100Mvar capacitor bank for pad mounted and Pole mounted;
6.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Power Transformer up to 200mva and reactor up to 200Mvar;
7.400V/6KV/15KV/27KV/38KV, 50Hz. 60Hz, indoor AC control and Protection switchgear panel for substation and Distribution system;
8.48VDC/110VDC/220VDC 50Hz/60Hz Lead-Acid/Ni-CD Battery bank with Charger up to 2000AH;
9.15KV/27KV/38KV/66KV/123KV/145KV/150KV/245KV, 50Hz/60Hz Cable heat srink/cold shrink Terminal and Joint with joint box
10.33KV/66KV/145KV 50Hz/60Hz dead tank GCB /HGIS and compact GIS;
11.11KV/33KV, 50Hz/60Hz, 9/11/17/32 steps ON LOAD TAP CHANGER for Power Ttansformer
12. RTU remote terminal unit for VCB, SWITCHGEAR AND RECLOSER WITH IEC61850/DNP3.0 Protocol
Our Mian service is including of:
1. Designing, Complete Supply, Conssate and Commission of 33KV/66KV/145KV/245KV 60Hz/50Hz substation including of GCB, DS, CT PT, LA, Transformer, Cable, Control & Protection Panel, Earthing Grounding system,
SCADA system, Steel grid tower;
2. Desinging, Complete Supply, consulate and Commission of 33kv/66kv/145kv/230kv 60Hz/50Hz Distribution automatic system including of recloser, sectionaliser, fault indicator, RTU, GPRS, and management software
We are rich experience in substation and automatic distribution system for 10years, our business had been involve in the world I including of Bangladesh, Indonesia, malasia, Pakistan, zimbia, zembewei, Peru, Ecuador ect over the world.
Customerizer will be welcome, Speciall required wil be welcome, we have good experience to proposal you and support you to success in business.
All the goods from HEMG will be guaranteed within 2 years, in specially, it will be 5 years.
For Above 1 million Order, We will send our engineer to work in site untill runing in good conditions.
