PCB Stencil Solder Paste for PCB Assembly with Aluminum Framed

Name: PCB Stencil Solder Paste for PCB Assembly with Aluminum Framed
Brand: all-electronics-online.com
SKU: 830430435
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	US $ 130/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-427-V4.27
Structure:	Stencil Foils, Aluminum Framed
Foil Thickness:	0.05mm, 0.06mm, 0.08mm, 0.1mm
Foil Thickness.:	0.12mm, 0.15mm, 0.18mm, 0.2mm
Aperture Configured:	Laser Cut
Appearance:	Engraving and Electro Polishing
Advantages1:	a) High Precision Dimension;
Advantages2:	B) Good Shape on The Window;
Advantages3:	C) Hole Wall Is Smoother.
Fiducial Mark:	Open for Fixed Position
Application:	Csp, BGA, 0.5mm Qfp etc
Layers:	Double-Layer
Certification:	ISO
Customized:	Customized
Mode Of Production:	Laser Cut
Base Material:	Stainless Steel Shim

Product Description

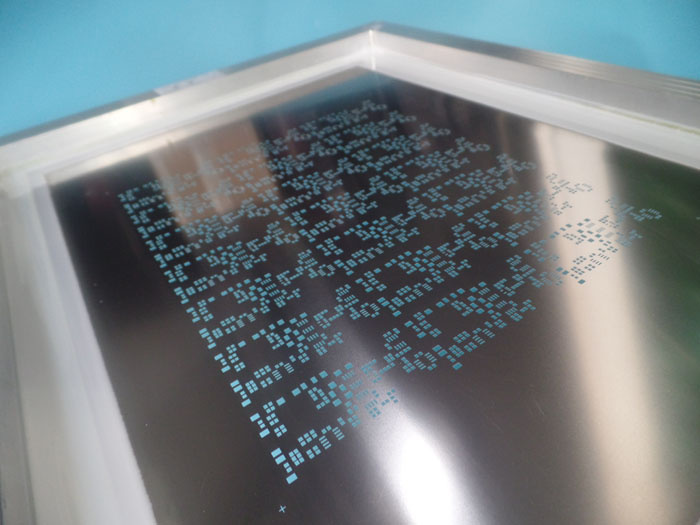

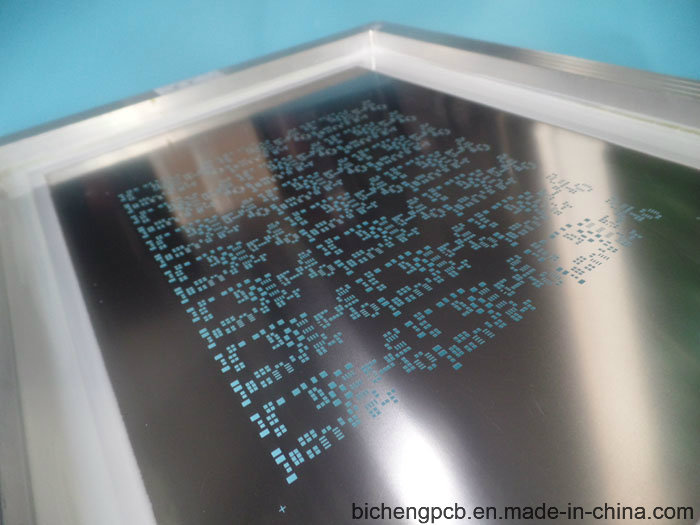

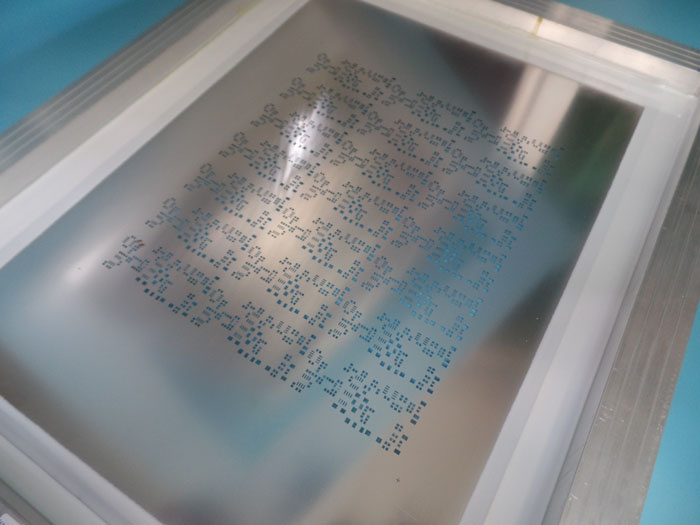

PCB stencil Solder Paste Laser Stencil with Aluminum Frame

Commodity Introduction
This is a type of laser cut SMT stencil. It's 520mm x 420mm with aluminum frame. It's fabricated per IPC 7525A using supplied Gerber data. It's packed with KK carton (hard card) and usually 2 stencils are packed
for shipment.

Specifications

Standard dimension:	370mm x 470mm, 420mm x 520mm, 550mm x 650mm
Structure	Stencil foils, Aluminum framed
Base material	Stainless steel shim
Foil Thickness(Optional)	0.05mm, 0.06mm, 0.08mm, 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm
Aperture configured	Laser cut
Appearance	Engraving and electro polishing
Fiducial mark	Open for fixed position
Service area:	Worldwide
Quantity of open pads:
Advantages:	a) High precision dimension; b) Good shape on the window; c) Hole wall is smoother.
Application:	CSP, BGA, 0.5mm QFP etc. package

Frequently used Unit Conversion in PCB industry
1. Etched Method

2. Laser Method

1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²
