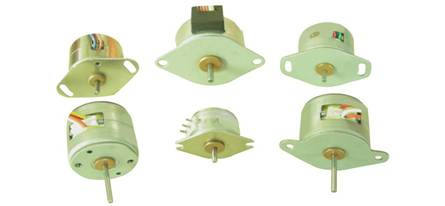

Permanent Stepper Motor Pm Stepper Motor

Name: Permanent Stepper Motor Pm Stepper Motor
Brand: all-electronics-online.com
SKU: 647540925
Availability: InStock
Rating: 4.9 (82 reviews)

Price:	US $ 5-8/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Permanent Stepper Motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	15mm--57mm
Step Angle:	7.5--18
Voltage:	5--24V
Rated Current:	0.12--0.9
Number Of Stator:	Two-Phase
Excitation Mode:	PM-Permanent Magnet
Type:	Magnetic-Electric
Certification:	Ce RoHS
Brand:	I.CH

Product Description

Applications: Widely applied in printer, scanner, stage light etc

Features:
1. Precise Position Control, linear Speed Selection, forward & Reverse, Pause and Holding Function, long life
2. Low Vibration, Low Noise, low cost, High Speed, High Torque, High Performance, low inertia and high accuracy
3. The variety of accessories and equipment, to meet the customers in different field

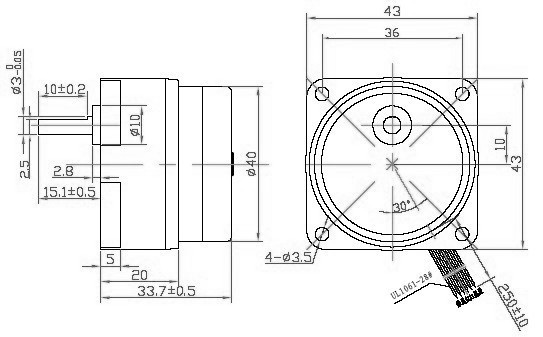

Drawing:

Electrical Specification
SERIES	Figure size	Step Angle	Voltage	Rated Current	Phase Resistance	Phase Inductance	Holding Torque	Detent Torque	Lead Wire
SERIES	Figure size	( o )	(V)	(A)	(Ω)	(mH)	(N.cm)	(N.cm)	(NO.)
P15	15mm	18	5~12	0.12~0.5	10~100	2~20	25~27	5~20	2
P20	20mm	18	5~12	0.08~0.5	10~280	4.3~81.7	60~90	20	2
P25	25mm	7.5/15		0.15~0.5	10~80	2.1~18	90~130	20~75	6
P35	35mm	7.5/15	12~24	0.22~0.28	47~110	16.5~54.2	330~550	45~125	4
P42	42mm	7.5	12~24	0.2~0.8	15~100	12~61	450~800	125~210	4
P49	49mm	7.5	0~5	0~0.9	0~5.5	0~61	0~1700	0~350	2
P57	57mm	7.5	0~12	0~0.6	0~21	0~24.2	0~1500	0~425	4
Note: We accept the customized design if the customers give us the details, thanks!

I. CH MOTION is specialized in researching, developing and serve electric motor in China. With the professionalism of our highly trained and qualified mechanical engineers, electronic engineers and marketing consultants, we are able to provide product design and integration service to our customers in the world market.

We supply a complete range of electrical/electronic motors including AC motors, AC Gear motor, DC motor, DC Gear motor (spur gearbox and planetary gearbox), Stepper motors (stepping motor or step motor), Worm Geared motors, synchronous motor, brushless motor, servo motor, brake motor, sealed motor, hollow shaft motor, harmonic driver, linear stepper motor and other auxiliary electronic motor controls.

We have established an electrical consortium with small size electric motor manufacturers working as an exclusive exporters and world-wide sourcing agents of small electrical motors. These premium quality products are widely used in industrial automation, commercial and domestic automation.

Feel welcome to review all of our product range.

We are also proud to accept special design requirements from the customers.

Should you have questions about our product range, please contact our Sales Department.
