Petrochemical Power Transformer

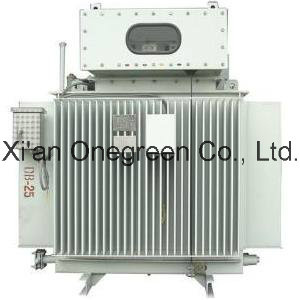

Name: Petrochemical Power Transformer
Brand: all-electronics-online.com
SKU: 732824105
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	US $ 3500/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	S9-ES-250/10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	6kv 10kv Class
Voltage Regulation:	off Circuit Tap Regulation
Tapping Range:	±5%, ±2X2.5%
Capacity Range:	30-2500kVA
Frequency:	50Hz, 60Hz
Application:	Power
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Multi-winding Transformer

Product Description

Petrochemical Power Transformer

Voltage: 6kV, 10kV class
Voltage regulation: Off circuit tap regulation
Tapping range: ± 5%, ± 2X2.5%
Capacity range: 30-2500kVA
Frequency: 50Hz, 60Hz
Phase: Single phase and 3-phase
Vector group: Yyn0 or Dyn11
Impedance voltage: In line with national standard or according to customer's requirements
Operation environment: Max. Temperature for outdoor operation environment ≤ 40C(or according to customer requirements)
Cooling method: Oil immersed ONAN

Technical parameters and features

Model	Loss(W)		Short-circuit impedance (%)	No-load current (%)	Dimension(mm)				Weight(kg)
S9-ES-250/10	No-load loss	Load-loss	Short-circuit impedance (%)	No-load current (%)	LWH	Gauge	I1	I2	Oil weight	G.W
S9-ES-315/10	560	3200/3050	4.0	1.3	124013501405	550*550	550	40	280	1250
S9-ES-400/10	670	3830/3650		1.2	128013901380	550*550	590	50	225	1240
S9-ES-500/10	800	4520/4300		1.3	127513801500	550*550	630	20	255	1450
S9-ES-630/10	960	5410/5150		1.2	136015401445	660*660	670	40	265	1590
S9-ES-800/10	1200	6200	4.5	1.1	140016201565	660*660	710	60	510	1900
S9-ES-1000/10	1400	7500		1.0	159015951715	660*660	690	40	540	2185
S9-ES-1250/10	1700	10300		0.9	185016651725	660*660	730	40	565	2385
S9-ES-1600/10	1950	12000		0.7	159516701890	820*820	710	40	515	3160
S9-ES-2000/10	2400	14600	5.5	0.6	163018401870	820*820	800	40	560	3480
S10-ES-250/10	2680	18900	5.5	0.5	167019252110	820*820	940	80	760	4125
S10-ES-250/10	480	3200/3050	4.0	1.3	124013601405	550*550	550	40	280	1250
S10-ES-315/10	540	3850/3650		1.2	128013901380	550*550	590	50	225	1240
S10-ES-400/10	650	4520/4300		1.2	127513801500	550*550	630	20	235	1450
S10-ES-500/10	780	5410/5150		1.1	136015401445	660*660	670	40	265	1590
S10-ES-630/10	920	6200	4.5	1.0	140016201565	660*660	710	60	310	1900
S10-ES-800/10	1120	7500		0.9	139015951715	660*660	690	40	340	2185
S10-ES-1000/10	1320	10300		0.8	185016651725	660*660	730	40	365	2385
S10-ES-1250/10	1560	12000		0.7	139516701890	820*820	710	40	515	3160
S10-ES-1600/10	1880	14500	5.5	0.6	163018401870	820*820	800	40	560	3480
S10-ES-2000/10	2350	18900	5.5	0.5	167019252110	820*820	900	80	760	4125
S11-ES-315/10	480	3830/3650	4.0	1.1	128013901580	550*550	590	50	225	1210
