Pin Cold Terminal Copper Crimping Ptn Non-Insulated Terminals

Name: Pin Cold Terminal Copper Crimping Ptn Non-Insulated Terminals
Brand: all-electronics-online.com
SKU: 765315605
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Copper
Application:	Transmission of Electrical Signals
Shape:	Pin
Brand:	Jwl

Product Description

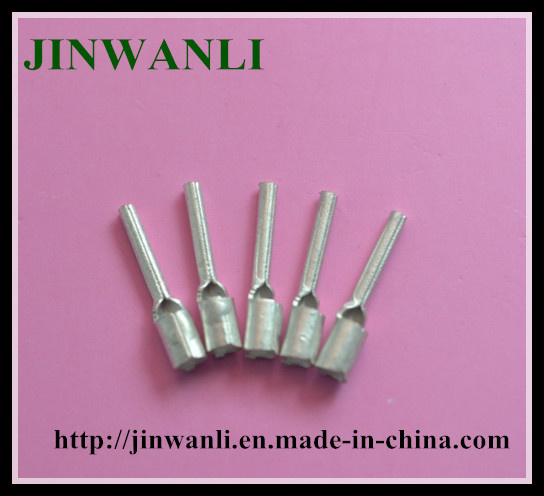

Non-Insulated Pin Terminal

Specifications
1.Material : purple copper
2.Insulated material:Vinly
3.Easy Entry Insulated Pin Terminal

Applied current:
0.5-1.5mm²,22-16AWG......19A 1.5-2.5mm²,
16-14AWG......27A 2.5-4mm²,14-12AWG......
36A 4-6mm²,12-10AWG......48A

Packing: 100pcs/bag

Wire Specification: 0.5-1.5mm 2 (A. W. G 22-16) Imax=19A
Item No	Dimension(mm)
Item No	F	L	H	D	d
PTN1.25-9	1.9	13.8	4.8	3.4	1.7
PTN1.25-10	1.9	14.8
PTN1.25-12	1.9	16.8
PTN1.25-13	1.9	17.8
PTN1.25-18	1.9	22.8
Wire Specification: 1.5-2.5mm 2 (A. W. G 16-14) Imax=27A
Item No	Dimension(mm)
Item No	F	L	H	D	d
PTN1.25-9	1.9	13.8	4.8	4.1	2.3
PTN1.25-10	1.9	14.8
PTN1.25-12	1.9	16.8
PTN1.25-13	1.9	17.8
PTN1.25-18	1.9	22.8
Wire Specification: 2.5-4mm 2 (A. W. G 14-12) Imax=37A
Item No	Dimension(mm)
Item No	F	L	H	D	d
PTN3.5-10	2.8	14.8	6	5	3
PTN3.5-13	2.8	19.8	6	5	3
Wire Specification: 4-6mm 2 (A. W. G 12-10) Imax=48A
Item No	Dimension(mm)
Item No	F	L	H	D	d
PTN5.5-13	2.8	8-19	6	5.6	3.4

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
