Platinum Resistance

Name: Platinum Resistance
Brand: all-electronics-online.com
SKU: 724952015
Availability: InStock
Rating: 4.6 (145 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	1.25*1.7mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	1.25*1.7mm
Name:	Platinum Resistance
Type:	Temperature Controller
Usage:	Testing Equipment

Product Description

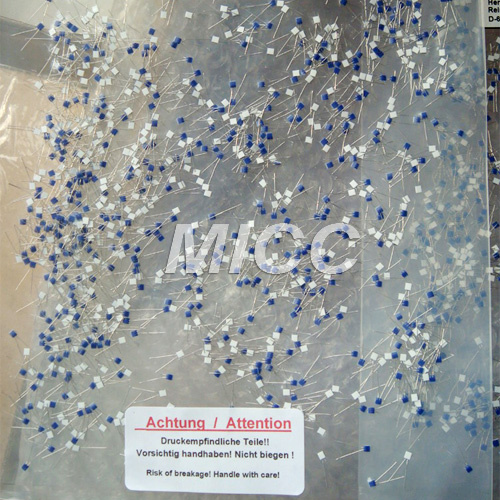

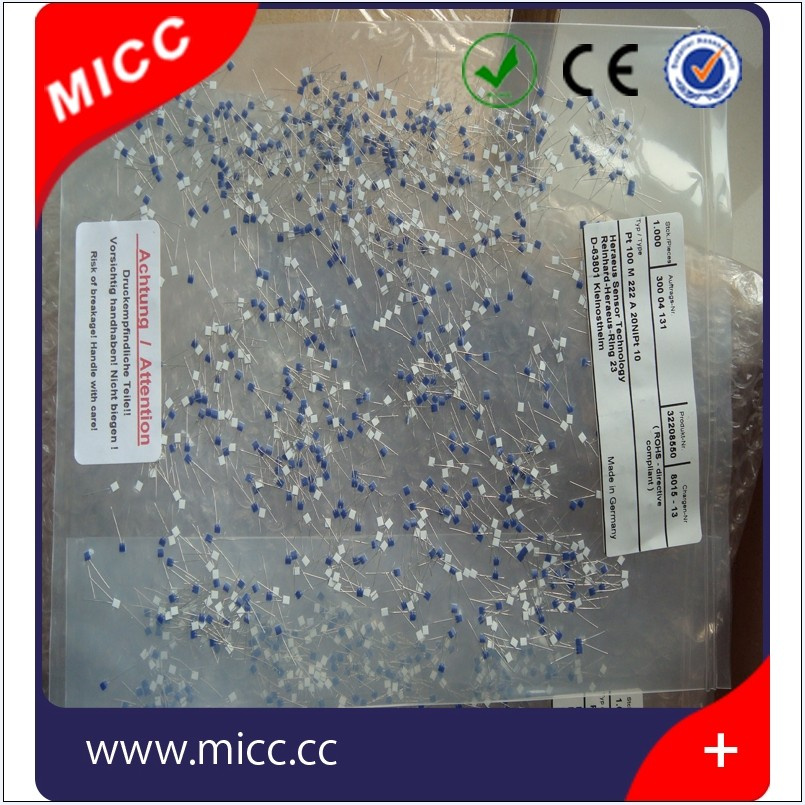

Product name: platinum resistance

M series PRTDs are designed for large volume applications where long term stability, interchangeability and accuracy over a large temperature range are vital. Typical applications are Automotive, White goods,
HVAC, Energy management, Medical and Industrial equipment.

The measuring point for the nominal resistance is defined at 8mm from the end of the sensor body.

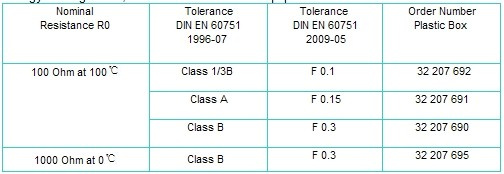

Nominal Resistance R0	Tolerance DIN EN 60751 1996-07	Tolerance DIN EN 60751 2009-05	Order Number Plastic Box
100 Ohm at 100°C	Class 1/3B	F 0.1	32 207 692
	Class A	F 0.15	32 207 691
	Class B	F 0.3	32 207 690
1000 Ohm at 0°C	Class B	F 0.3	32 207 695

MICC TECH. LIMITED is a professional export-oriented company which located in Nanjing, one of largest commercial city in China. We mainly produce thermocouple wire, thermocouple connector, thermocouple head, MI cable, FeCrAl wire, NiCr wire, CuNi wire, pure nickel wire and thermocouple bare wire. Our company has been engaged in these fields for more than 5 years and has a sound reputation and credits among the foreign customers with our great variety of first-rate quality products and good services. Our selling net-work has expanded to Europe, South America, Middle East etc. OEM order is welcomed and well done!

According to international standard, we introduce new techniques and new processes, so we can keep improving product quality. There are strict processes and quality manages to make sure the products keep updated, and be well received by users.

We warmly welcome all client friends to visit us and talk about business. We have established excellent business relationships with lots of our old partners based on equality, mutual benefit, customer first & service foremost, contract respecting. We look forward to your business negotiation and will sincerely be your best trade partner.
