Platinum Resistance

Name: Platinum Resistance
Brand: all-electronics-online.com
SKU: 725936265
Availability: InStock
Rating: 4.5 (65 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,D/P,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	2.2*4.1mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model Number:	2.2*4.1mm
Name:	Platinum Resistance
Type:	Temperature Controller
Usage:	Testing Equipment

Product Description

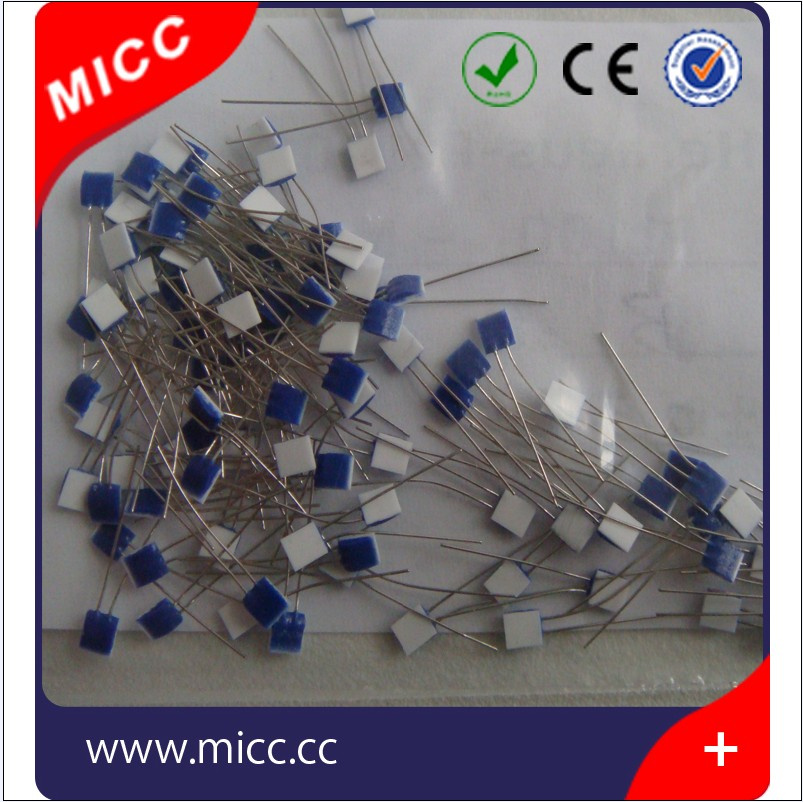

Product name: platinum resistance

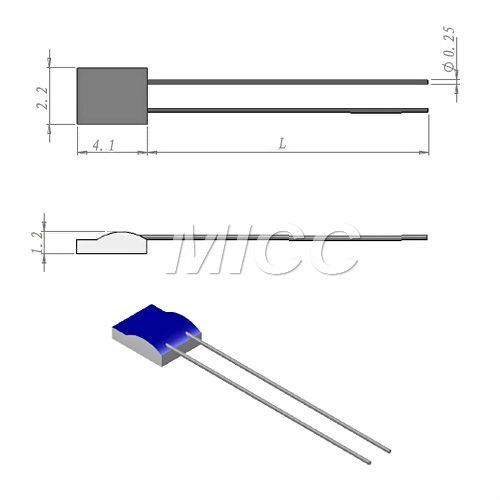

Drawing

Specification

HD 421 Pt 100-type platinum temperature sensors are characterized by long-term stability,

precision over a broad temperature range and compatibility.

Main application area is the process technology.

Nominal Resistance R0	Tolerance DIN EN 60751 1996-07	Tolerance DIN EN 60751 2009-05	Order Number Plastic Box
100 Ohm at 0°c	Class B ( to 650°c)	F 0.3 (to 650°c)	32 208 228
100 Ohm at 0°c	Class 2B (to 850°c)	F 0.6 (to 850°c)	32 208 228

The measuring point for the nominal resistance is defined at 4mm from the end of the sensor body.

Specification	DIN EN 60751
Temperature Range	-70°c up to +850°c Tolerance Class B: -70°c up to +650°c Tolerance Class 2B: -70°c up to +850°c
Temperature Coefficient	TC = 3850 ppm/K
Leads	Pt- wire
Lead Length (L)	6mm ±1mm
Long-term Tests	1000h at 850°c (energized, open) smaller then the allowed deviation according to DIN B. 1000 h at 650°c (under current as clean MI-type) smaller then the allowed deviation according to DIN B
Vibration Resistance	at least 40g acceleration with 8ms half sine wave signal, depends on the installation
Shock Resistance	at least 100g acceleration at frequencies from 10Hz up to 2000Hz, depends on the installation
Environmental Conditions	Unhoused for dry environment only, Up to 650 in housings also as clean MI-type possible, above 650 no reducing atmosphere, free air admission necessary
Insulation Resistance	>100 MΩ at 20°c; >2 MΩ at 650°c
Self Heating	0.2 K/mW
Response Time	Water current (v= 0.4m/s): t0.5 = 0.05s t0.9 = 0.17s Air stream (v= 2m/s): t0.5 = 3.3s t0.9 = 13.0s
Measuring Current	20°c max. 5mA; 850°c max. 2.8mA (self heating has to be considered)
Note	Other tolerances,values of resistance and wire lengths are available on request.
