| Prod Model: |
TS1201SP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input: |
36-57V |
| Output: |
12V, 1A |
| Network Site: |
Intermediate Node Routers |
| Transfer Rate: |
10/100Mbps |
| Firewall: |
Without Firewall |
| Ports: |
≤4 |
| Port Structure: |
Modular |
| Application: |
SOHO |
| Network: |
HSUPA |
| Performance: |
Non Line Speed Router |
| Architecture: |
Crossbar System |
| Type: |
Wired |
Product Description

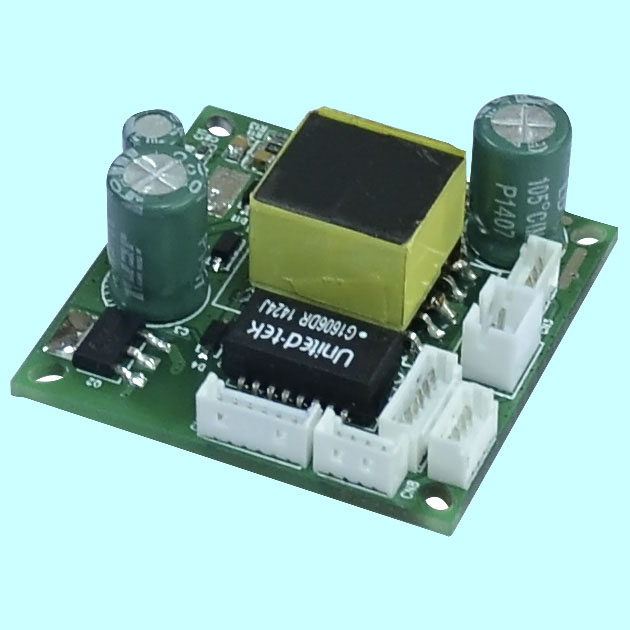

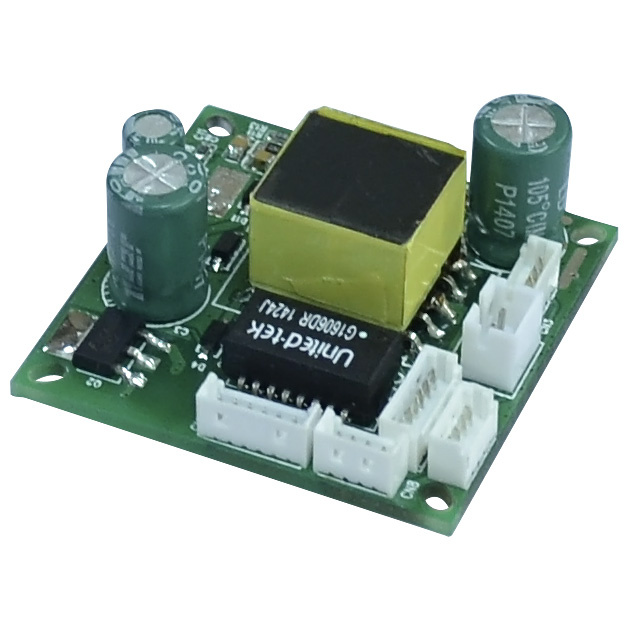

The TS1201SP is designed as an embedded isolated Powered Device (PD) Module of Power over Ethernet (POE) system. The Power Sourcing Equipment (PSE) of the POE system provides power supply for IP Camera via conventional Category 5 Ethernet cable connected with module. The module is compliant with IEEE802.3af power classification. The high efficiency DC/DC converter operates over a wide input voltage range and provides a regulated low ripple and noise output .This converter also has builtin overload,overvoltage and short circuit protection functions.
Features Complies with IEEE 802.3af
Input voltage range 36Vdc to 57Vdc
Output 12V/1A
Built-in Surge protector
No external components need
Overload, Overvoltage and shortcircuit protection
38 x38mm general size design, small size, low cost
nvironment
Operating Temperature:
0°C ~ 40 °C (32 °F ~104°)
Storage Temperature:
-40 °C ~ 70 °C (-40 °F ~158°F)
Operating Humidity:
10% ~ 90% non-condensing
Storage Humidity:
5% ~ 90% non-condensing
| Connector No. | Function | Pin No. | Name | Description |
| CN1 | Input voltage
from PSE | 1 | VA1 | DC input voltage: This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| 2 | VA2 | DC input voltage: This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| 3 | VB1 | DC input voltage: This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| 4 | VB2 | DC input voltage:This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| DC output | 5 | GND | GND |
| 6 | VDC+ | DC output: This pin provides the positive regulated output from the dc/dc converter. |
| CN2 | DC output | 1,4 | VDC+,
+VAUX | DC output: This pin provides the positive regulated output from the dc/dc converter. |
| 2,3 | GND | GND |
| CN3 | Input voltage
from PSE | 1 | VA1 | DC input voltage: This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| 2 | VA2 | DC input voltage: This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| 3 | VB1 | DC input voltage: This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| 4 | VB2 | DC input voltage:This pin connects to the output of the PoE transformer centre tap. NonPolarity. |
| CN4 | DC output | 1 | VDC+ | DC output: This pin provides the regulated positive output from the dc/dc converter. |
| 2 | GND | GND |
