Pole Mounted Vacuum Circuit Breaker

Name: Pole Mounted Vacuum Circuit Breaker
Brand: all-electronics-online.com
SKU: 707913685
Availability: InStock
Rating: 4.8 (141 reviews)

Price:	US $ 10000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTL-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	High Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Vacuum
Installation:	Open Frame
Structure:	ACB
Poles Number:	1
Certification:	CCC

Product Description

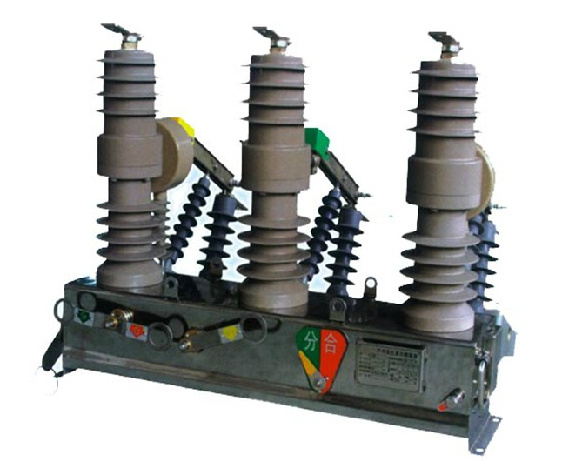

Pole Mounted Vacuum Circuit Breaker

-ZW32-12/15/24 Pole Mounted Vacuum Circuit Breaker/Recloser

-Adopt high performance HTV silicone rubber for insulation, with excellent outdoor endurance;

-Can equip with high speed switching magnetic actuator, carry out long life and high reliable character;

-Strong communication protocol function, with RS232, RS485, RS422 ports can be selected.

-Support IEC870-5-102, 103, 104, CDT, DNP30, SC180, etc. Standards

-Integration protection curves fro selection, support and complied with IEC, ANSI, GB standards.

-Provide with normal CB protection and additional three stroke reclosing function.

-Technical Parameter as follows

No.	Item			Unit	Parameter
1	Rated Voltage			KV	12	15
2	Rated Insulation Level	1 Minute Power Frequency Withstand Voltage	Dry		42	55
			Wet		34	50
		Lightning Impulse Withstand Voltage (Peak Value)			75	110
3	Rated Current			A	200/400/630/1250
4	Rated Short Circuit Breaking Current			KA	12.5/16/20/25
5	Rated Operating Sequence				O-0.3s-CO-180s-CO	O-0.3s-CO-T1-CO-T2-CO
6	Breaking Current Frequency under Rated Short Circuit			Times	30
7	Rated Short Current Switching Current (Peak Value)			KA	50/80
8	Rated Peak Value withstand Current
9	Rated Short Time Withstand Current				12.5/16/20/25/31.5
10	Rated Short Circuit Duration time			s	4

Located in Shenzhen, Refine Technology Limited is a professional supplier and solution provider for electrical equipment and manufacturing machinery.

Up to now, we have established strategic partnership with power utilities, state-owned enterprises, reputed companies in North America, Europe, Asia, Africa, South America, etc.

In the past years, our quality products and complete solution has been exported to many countries worldwide, such as whole-process solution on tendering, turnkey project to set up a new concrete pole factory, one-stop electrical equipment procurement/delivery/after sales services, etc.

Since the foundation of the company, we regard quality as the foundation of long-term development, our company has been operating strictly as per ISO9001 quality management system, while our products has been certified in the target markets like Europe, North America, Asia, etc.

Apart from the offline marketing channels, our online E-commerce marketing is also growing drastically, our O2O business mode and professional backup team will keep bring value to all our partners.

Regarding ' Integrity' as our core value and ' Win-win' as the business strategy, we sincerely welcome you to visit our company or contact us for any upcoming cooperation opportunities.

Looking forward to establishing a long-term partnership with you.
