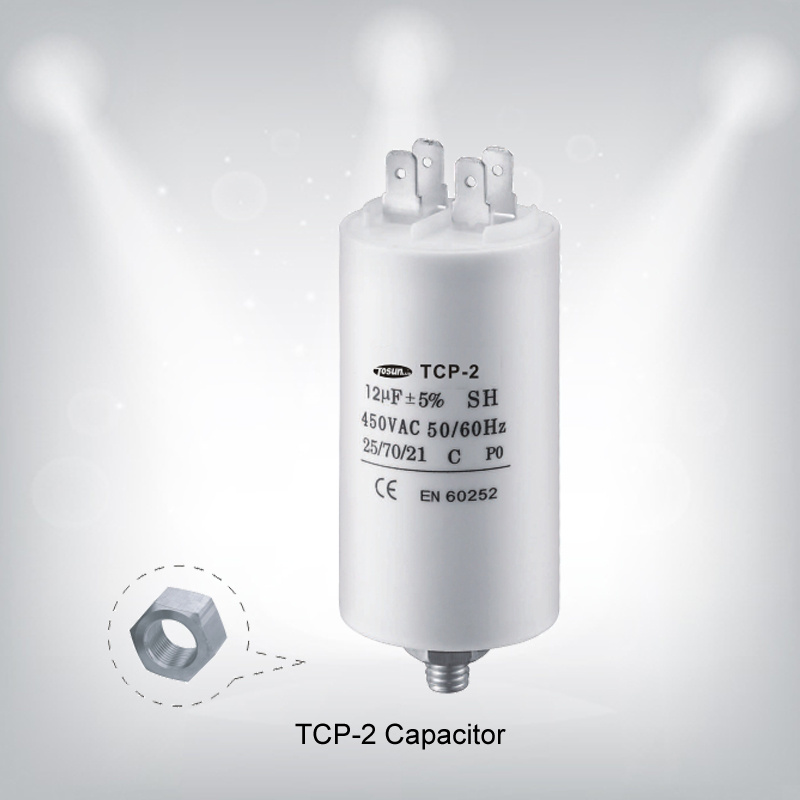

Name: Polypropylene Film Motor Run Capacitor
Brand: all-electronics-online.com
SKU: 754346805
Availability: InStock
Rating: 5 (60 reviews)

Price:	US $ 0.3-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	TCP-1 / TCP-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity (UF):	3~100
Rated Voltage:	250VAC, 450VAC
Capacitance Tolerance:	±5%, ±10%
Dissipation Factor:	≤0.002 (at 50Hz-100Hz and 20°c)
Test Voltage Between Armatures:	2.15 × Vn for 2s
Test Voltage Between Terminal And Case:	2.5kv .AC for 1s
Application To Motor:	50/60hzac Single Motor
Type:	Polypropylene Capacitor
Application:	Fan
Package Type:	Surface Mount
Capacitance:	>100uf

Product Description

Application
Motor run capacitor has features of small size, light weight and small tangent in waste angle. Applicable to start and operation with 50/60Hz AC single motor, the items are specially suitable for micro pump, baric pump, micro motor and all kinds of domestic electric appliance.

Specification of Motor Run Capacitor

TCP-1/TCP-2:

Capacity (uF)	3,3.5,4,4.5,5,6,8,10,12,15,16,18,20, 21,22,25,30,31.5,35,36,40,45,47,50,55,60,65,70,75,80,85,90,95,100
Rated Voltage	250VAC , 450VAC
Capacitance Tolerance	±5% , ±10%
Dissipation Factor(at 50Hz~100Hz and 20ºC)	≤0.002
Test Voltage Between Armatures	2.15xVn for 2s
Test Voltage Between Terminals and case	2.5kV.ac for 1s
