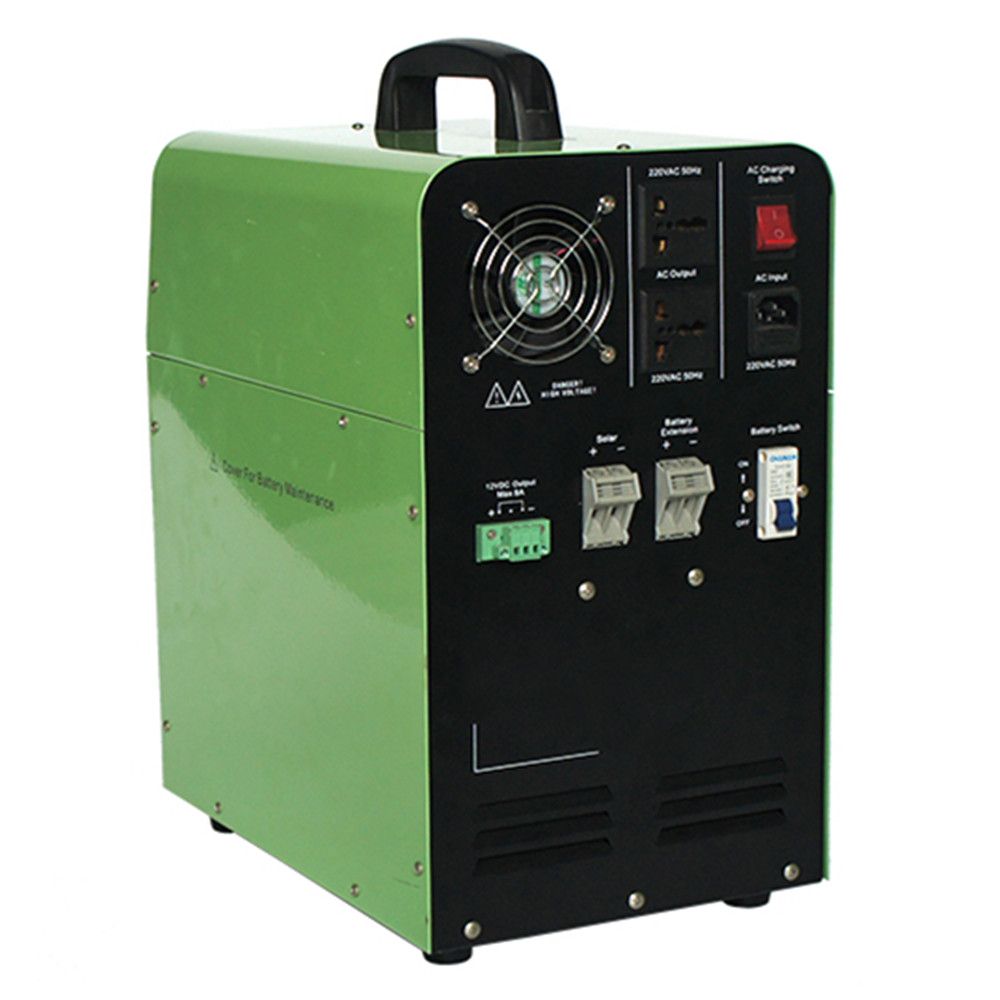

Portable Mini Design Inverter Solar Power Panel Lighting System Home Price

Name: Portable Mini Design Inverter Solar Power Panel Lighting System Home Price
Brand: all-electronics-online.com
SKU: 826401575
Availability: InStock
Rating: 4.5 (48 reviews)

Price:	US $ 26/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DL
Output Voltage (V):	5V/12V/110V/220V
Load Power (W):	Depend
Solar Power (W):	300W-1500W
Input Frequency:	50Hz-60Hz
Rated Current:	30A
Battery Capacity:	7ah--100ah
Warranty:	1 Year
Phase:	Single Phase
Protection:	Overcurrent
Type:	off Grid
Application:	Power Supplied
Equipment Mode:	According to Client's Request
Brand:	Snat

Product Description

Product overview:

The product applies to diversified loads because its digital design, pure sine wave output and excellent over current protection can withstand the loads with a large starting current, the product is provided with independent solar three-stage charge management to improve charge efficiency of its battery and realize a longer lifespan, product provides universal 5VDC-USB output port and 12VDC output to be widely applied to small solar power generation occasions including families, schools, street monitoring, forest monitoring, industrial and mining enterprises, frontier defense, sea islands, pasturing areas and more

Main features:
Excellent performance because of an MCU intelligent control technology
A wide range of applicable loads because of pure sine wave AC output
Convenient and practical 5VDC-USB output port and 12V DC output port
Solar array and battery common-anode system input
Charge by mains supply for flexible configuration (optional function)
Overcharge protection and over discharge protection for a large battery lifespan
Digital meter and LEDs for visualization of operation status of the equipment
Overall automatic protection and alarms including AC output overload protection, short circuit protection and more

Parameter

Model: AL-		1.5KW/24V
Inverter	Battery voltage	24V
	Rated power	4*55Ah/12V
	Output voltage	1500W
	Output frequency	110/220VAC
	Output waveform	50/60Hz
Charge by a mains supply	Rated voltage	110/220VAC---('' means an optional function)
Charge by a mains supply	Charge current	5A (max)-( '' means an optional function)
Solar input	Maximum photovoltaic voltage(VDC)	≤50V
	Charge voltage(VDC)	20-50V
	Rated charge current(A)	30A
	Maximum power(Wp)	720Wp
	Voltage of overcharge protection(VDC)	28.4V
	Voltage of overcharge recovery(VDC)	28.0V
	Voltage of floating charge(VDC)	27.4V
DC output	Voltage of high-voltage protection(VDC)	32V
	Voltage of high voltage recovery(VDC)	30.4V
	Voltage of low voltage protection(VDC)	25.5V
	Voltage of low voltage protection(VDC)	22V
	5VDC USB output port	2 ones/max 2A
	12VDC output port	2DCports + backboard 12V terminal block (MAX 8A)
Starting temperature of the exhaust fan		>45ºC
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-25-+55ºC
Operation/storage conditions		0-90% (no condensation)
External dimensions: D×W×H(mm)		513×310×493
Packing dimension: D×W×H(mm)		610×420×550

A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
