Power Distribution Unit 6 Way UK Socket 19 Horizontal Rack PDU

Name: Power Distribution Unit 6 Way UK Socket 19 Horizontal Rack PDU
Brand: all-electronics-online.com
SKU: 691528911
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	US $ 2-12/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	0155541
Rated Curent:	13A
Measurement:	482.6 * 44.4 * 44.4mm (19 Inch)
Mounting Method:	Horizontal Installation
Shell:	Aluminum Alloy Shell
Output Configuration:	6 Ways
Weight:	850 Grams
Grounding:	Non-Grounding
Shell Material:	Stainless Steel
Application:	Residential/General-Purpose
Cable Length:	1.8 Meter
Color:	Black
IP Rating:	IP20
Certification:	UL
Customized:	Customized
Condition:	New

Product Description

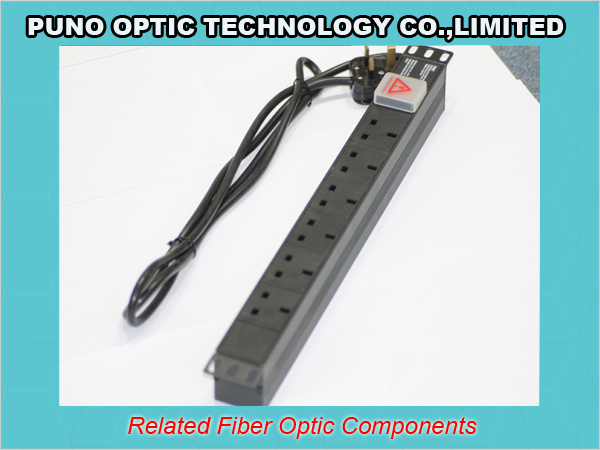

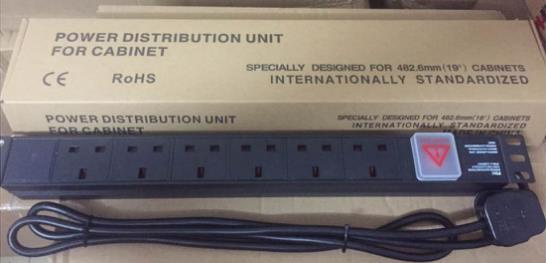

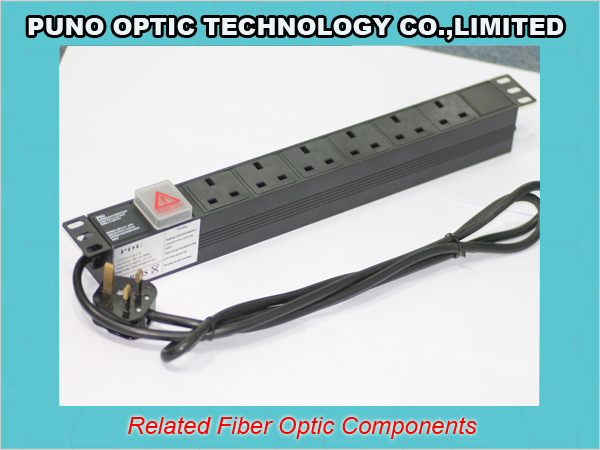

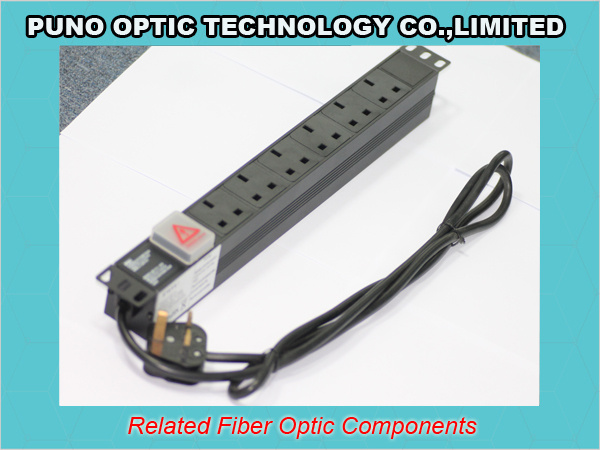

Power Distribution Unit 6 Way UK Socket 19 Horizontal Rack PDU

Looking for high performance power distribution for your heavily loaded systems? This kind of product designed for standard networking or data cabinets equipment to provide 6 UK sockets. The newly developed 13A heavy-duty horizontal PDU using the IEC-C14 plug input connector which is ideal for many device requirements including server, network and other industrial-type equipment functions such as broadcast and HVAC applications. Combining a fully certified IEC-C14 plug input combined with a compatible heavy load power flex means you can be assured this PDU can work without problems, 24/7. Furthermore, incorporated onto the horizontal form-factor are industry standard UK sockets, ideal for data, telco and broadcast equipment with the added benefit of integral electrical surge protection. Robust in design, with an integral neon illuminated rocker switch for assured functionality, the PDU is designed to deliver maximum electrical power today and tomorrow.

Used / Application

High bit rate data transmission;
Telecommunication networks;
Data processing networks;
Metro applications;
Military, medical and industrial;
Active device termination;
CATV system;
Active device terminations;
FTTx (including FTTB, FTTC, FTTD, FTTH).

Features & Benifits

Horizontal Power Distribution Unit (PDU);
Compatible, heavy-load power cable;
6 x UK power sockets;
Robust, black aluminium design for industrial use;
Neon on/off power switch for assured control;
Maximum power rating - 4000W;
2.0 metre (approx.) power cordage;
Designed for standard 19" Networking Data comms Cabinet;
Power Switch with cover protector;
3 Pin UK plug (13 amps);
New slimline 1U High Density design;
Features Earth-Stud to attach your equipment.

Technical Parameter

Item Number	NT-A763
Shell Material	Aluminum alloy shell
Output Configuration	6 Ways
Color	Black
Measurement(LWH)	482.6 * 44.4 * 44.4mm (19 inch)
Mounting Method	Horizontal Installation
Weight	850 Grams
Rated Current	13A
Cord Length	10ft
