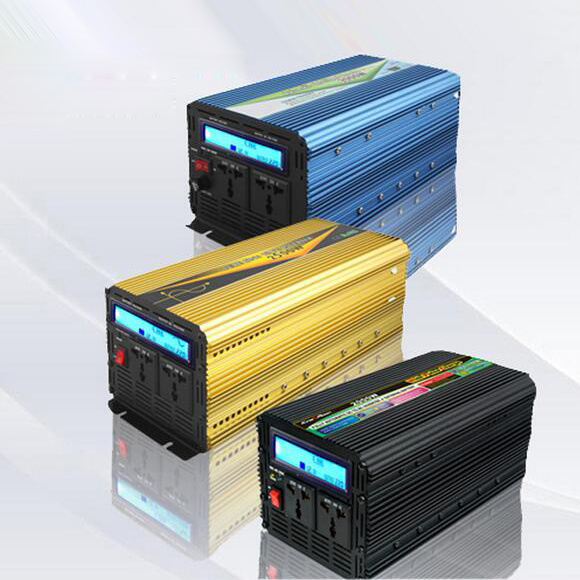

Power Inverter 1000W DC12V/24V AC220V/110 Pure Sine Wave with UPS Charge LCD Display

Name: Power Inverter 1000W DC12V/24V AC220V/110 Pure Sine Wave with UPS Charge LCD Display
Brand: all-electronics-online.com
SKU: 787824005
Availability: InStock
Rating: 4.8 (71 reviews)

Price:	US $ 135-140/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WSP-1000PSW+LCD&UPS
Size:	270150125mm
Phase:	Single
Power Source:	Electric Power
Application:	Electric Tools
Brand:	OEM

Product Description

Power Inverter 1000W DC12V/24V AC220V/110 Pure Sine Wave with UPS charge LCD display
DC 12V/24V TO AC 110V/220V/240V
1000W continuous power inverter 2000 watt peak.
Over temperature protection
Low battery alarm
Over voltage protection
Overload protection
Low battery shut down

1. / Output continuous power	1000W
2. / Output peak power	2000W
3.DC / Input DC voltage	12V		24V
4. / Working voltage	11-14.5V		21-29V
5. / Low-voltage protection	10±0.5V		20±0.5V
6. / Lack-voltage alarm	9.5 -11V		19.5 -21V
7. / Over-voltage protection	≥14.5V		≥29V
8. / Fuse	35A*4		20A*4
9. / Non-load current	≤0.7A		≤0.7A
10. / Convert efficiency	≥90%
11. / Overload protection	1000W-1200W
12. / Short circuit protection	Have
13. / Work temperature	-10ºC -- +50ºC
14. / Temperature protection	+60ºC -- +70ºC
15. / Output wave	/Puse sine wave
16.AC / Output voltage	110V	220V		240V
17. / Output frequency	60Hz	50Hz		50Hz

AC input voltage	110V	220V
AC input frequency	50HZ/60HZ	50HZ/60HZ
AC working voltage	85V-135V	170V-265V
AC input low voltage protection	≤75V	≤150V
AC input high voltage protection	≥130V	≥250V
AC input Fuse	20A	10A
/ Charge style	Intelligent positive and negative pulse charge
/ Charge process	Prep charge,main charge,float charge,charge fully
/ Charge current	Maximal 20A		Maximal 10A
/ Charge voltage	14.5V-16V		29V-32V
/ DC to AC inverting household electricity supply time	≤10ms
/ household electricity supply inverting DC to AC time	≤10ms
/ DC to AC inverting household electricity supply requirement	AC / AC input voltage under normal working scope
/ household electricity supply inverting DC to AC requirement	,AC,AC / Not household electricity supply, AC input low voltage protection, AC input high voltage protection.

Packing:
1, / Packing                              / Paper Box
2,/ PCS/CTN                                   4PCS
3, / Measurement                           270*150*125mm
4,/ Carton dimension                 430*350*360mm
5,Unit weight                               4.0kg± 0.05g
6, / Net weight (N.W)                         16.0kg
7, / Gross weight (G.W)                      16.9kg
